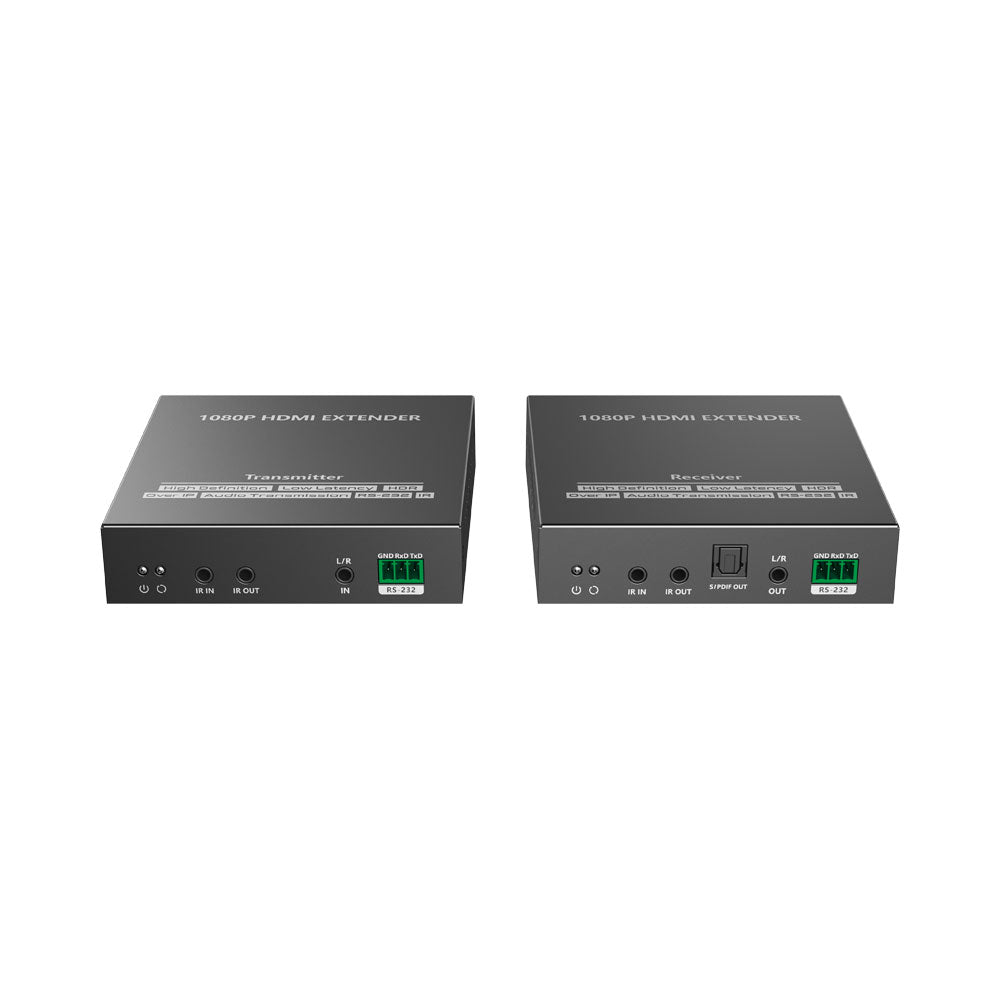

LENKENG UNCOMPRESSED 1080P HDMI / IP EXTENDER-150M

Features

• Adopting ipcolor PIXEL technology for uncompressed and low latency transmission
• Supports up to 1080p @60Hz Resolution
• Video signals can travel up to 150m over CAT6 or higher network cable
• Supports one-to-many connection through a Gigabit switch or switch cascade
• Supports HDR10
• Supports EDID pass-back
• Supports RS232 passthrough
• With HDMI loop-out on the transmitter
• Supports bi-directional IR passthrough
• The transmitter has a 3.5mm audio input for sound embedding
• The receiver has an independent 3.5mm and S/PDIF audio output
• Lightning, Surge and ESD protection

Specifications

• HDMI Cable Length: ≤5m
• Compatibility: HDMI 1.4 (HDR10), HDCP 1.4
• Supported Resolutions: 1080p @24/25/30/50/60Hz, 720p @50/60Hz, 1024×768 @60Hz, 1280×800 @60Hz, 1280×960 @60Hz, 1280×1024 @60Hz, 1440×900 @60Hz, 1600×900 @60Hz, 1600×1200 @60Hz, 1680×1050 @60Hz, 1920×1200 @60Hz, 480p @60Hz, 576p @50Hz, 1360×768 @60Hz (and other common resolutions)
• Connection Types: One-To-One, One-To-Many, Switch Cascading
• Transmission Distance: CAT6/6A/7 ≤150m
• Transmission Latency: 16ms – 33ms
• HDMI Audio Output: DTS-Audio / Dolby Digital 5.1 / LPCM 2.0
• S/PDIF Audio Output: LPCM 2.0 / DTS-Audio 5.1 / Dolby Digital 5.1
• 3.5 mm L/R Audio Output: PCM 2.0
• Audio Sampling Rates: 32kHz, 44.1kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz
• Audio bit Depth: 16-bit, 24-bit
• IR Receiving Range: ≤5m
• IR Frequency Range: 20~60kHz
• RS232 Support: Standard GND / RxD / TxD, Default Baud Rate ~9600 (Varies By Device)
• Power Supply: DC 5V 2A (Typical for TX and RX)
• Power Consumption: TX <5W, RX <4W (Approx.)
• Working Temperature Range: –20~60°C
• Storage Temperature Range: –30~70°C
• Humidity (No Condensation): 0~90% RH
• Housing Material: Metal
• Colour: Black
• Dimensions (Approx.): TX and RX 106 × 103 × 25mm each
• Protection: ESD Protection (Contact ±4kV / Air ±8kV), Lightning and Surge Protection

Shipping Dimensions

• Length: 14 cm
• Width: 6 cm
• Height: 13.5 cm
• Weight: 0.70 kg
