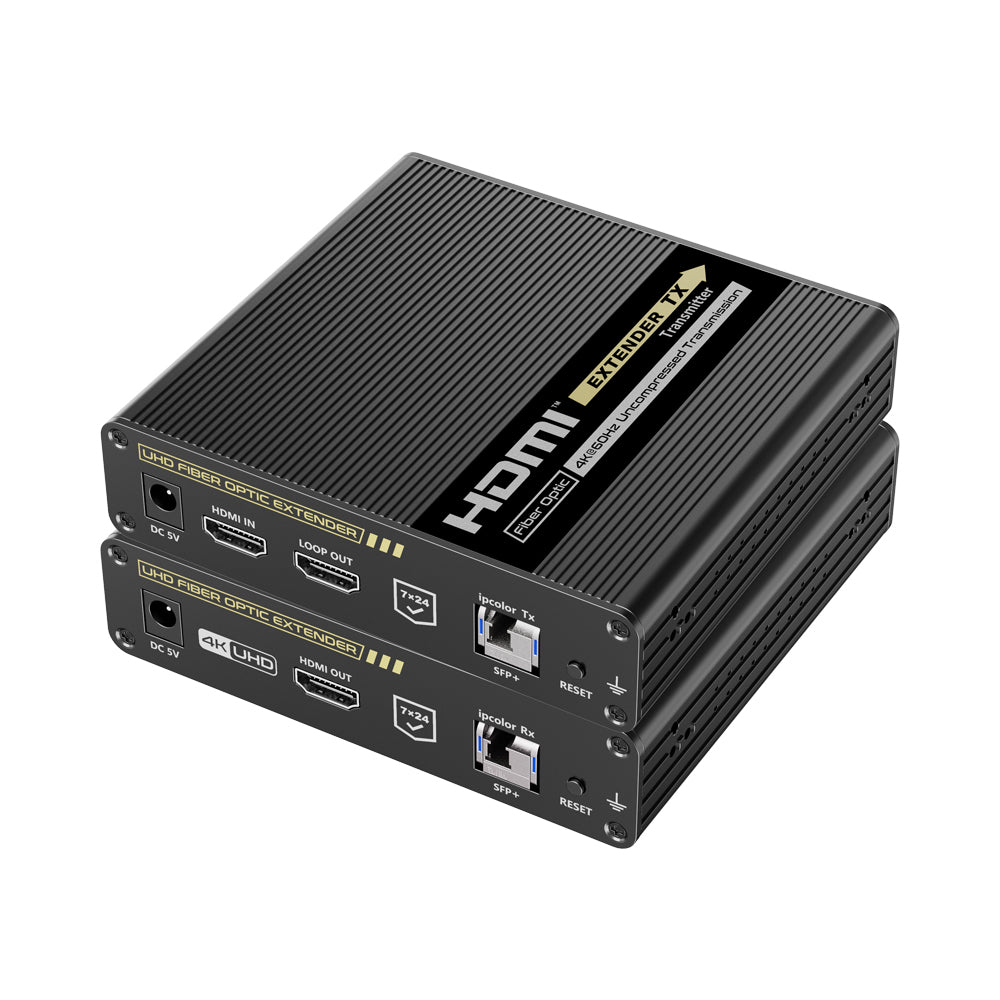

LENKENG LKV993 40KM 4K @60HZ HDMI OVER IP OPTICAL EXTENDER

Features

• Stunning 4K @60Hz with HDR10 for Lifelike Visuals
• Zero-Latency, Uncompressed Transmission for Flawless Performance
• Ultra-Long Transmission up to 40km
• Flexible One-to-One and One-to-Many Connections via 10Gb Switch
• Easily Expandable with Switch Cascading
• Bi-Directional IR Passback for Complete Remote Control

Specifications

• Transmission Protocol: ipcolor
• Latency: Zero-Latency
• Transmission Type: Uncompressed
• HDMI Signal: HDMI 2.0, HDCP 2.2
• HDR: HDR10
• Optical Module Type: SFP+
• Fibre Optic Cable Type: Single Mode (Use with the Default Optical Modules)
• Fibre Optical Connector Type: LC
• SFP+ Fibre Optic Module Wavelength: 1270nm, 1330nm
• Connection Type: One-to-One, One-to-Many, Switch Cascading
• Transmission Distance: ≤40km
• Supported Resolutions: 720p @50/60Hz, 1080p @24/25/50/60Hz, 1080i @50/60Hz, 1024×768 @60Hz, 1280×768 @60Hz, 1280×800 @60Hz, 1280×960 @60Hz, 1280×1024 @60Hz, 1440×900 @60Hz, 1400×1050 @60Hz, 1600×900 @60Hz, 1600×1200 @60Hz, 1680×1050 @60Hz, 1920×1080 @60Hz, 1920×1200 @60Hz, 2560×1440 @60Hz, 2560×1600 @60Hz, 3840×2160 @24/25/30/50/60/23.9/29.9/59.9Hz, 4096×2160 @24/25/30/50/60/23.9/29.9/59.9Hz
• Audio Formats: LPCM 7.1 / DTS-HD / DTS-Audio / Dolby Digital Plus / Dolby TrueHD / Dolby Digital / Dolby Atmos
• IR Support: Bi-Direction IR Passback Function (20~60kHz)
• RS232 Control: 3-Pin (TxD, RxD, GND), Follows RS-232 Levels
• Working Temperature: -20~60°C
• Storage Temperature: -30~70°C
• Humidity: 0~90% RH (Non-Condensing)
• Protection: ESD Protection (Contact Discharge Level 2, Air Discharge Level 3, Implementation of the Standard IEC61000-4-2), Lightning Protection, Surge Protection
• Power Supply: DC 5V 2A
• Power Consumption: <7.5W
• Material: Aluminium-Alloy plus Crystal Panel
• Colour: Black
• Weight: Transmitter 420g, Receiver 420g
• Dimensions (L × W × H): 123.95 × 115.20 × 30mm

Shipping Dimensions

• Weight: 1.10 kg
