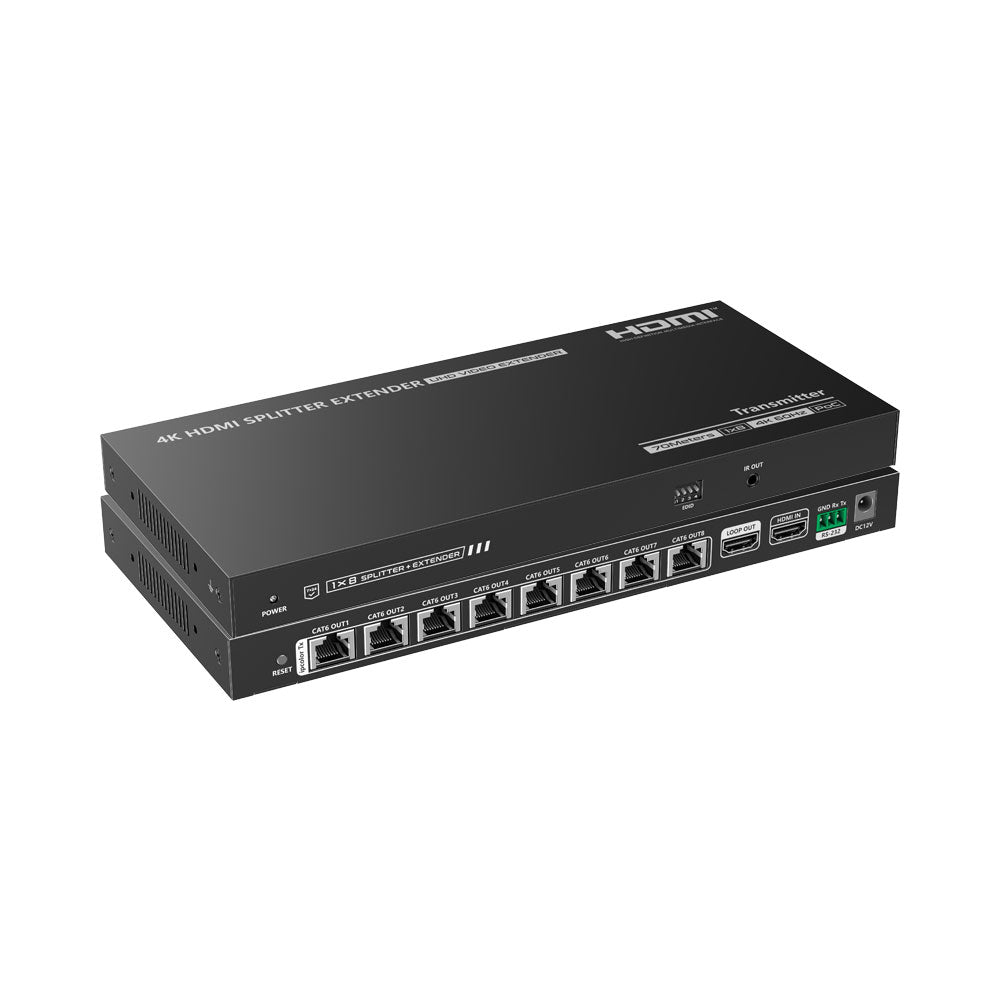

Features
- Zero Latency Transmission
- Split and Extend One HDMI Input Signal to Eight Identical Network Output Signals
- Supports up to 4K @60Hz Resolution
- Transmission Distance up to 70m over CAT6/6A/7 Cables
- Supports IR Passback (20~60kHz)
- The Transmitter Supports HDMI Loop-Out
- The Receiver Supports 3.5mm Stereo Output
- EDID Switch for Setting
- RS232 Command Control
- Surge, Lightning and ESD Protection
- Equipped With Rack Mount Ears
- Supports PoC, Only the Transmitter is Required to Supply Power
Specifications
- Transmission Protocol: ipcolor
- Distribution Mode: 1-In and 8-Out
- Transmission Distance: up to 70m via CAT6/6A/7 Cable
- HDMI Signal: HDMI 2.0, HDCP 2.2
- Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz,
1280×960, 1280×800, 1280×1024, 1680×1050, 1600×1200, 1600×900, 1024×768, 800×600, 1920×1200, 3840×2160 @24/25/30/50/60Hz,
4096×2160 @24/25/30Hz
- Audio Formats: LPCM, DTS, Dolby Digital 5.1 (4K) and Extended Formats for 1080p
- IR Support: IR Passback Function (20~60kHz)
- RS232 Control: 3-Pin (TxD, RxD, GND), Follows RS-232 Levels
- Working Temperature: -20~60°C
- Storage Temperature: -30~70°C
- Humidity: 0~90% RH (Non-Condensing)
- Protection: ESD Protection, Lightning Protection, Surge Protection
- Power Supply: Transmitter DC 12V 3A
- Power Consumption: Transmitter and Receiver <24W
- Material: Metal
- Colour: Black
- Weight: Transmitter 778g, Receiver 145g
- Dimensions: Transmitter 265 × 120 × 23mm, Receiver 85 × 75.5 × 16.5mm
Shipping Dimensions
- Length: 35.7 cm
- Width: 15.3 cm
- Height: 8.5 cm
- Weight: 2.60 kg
