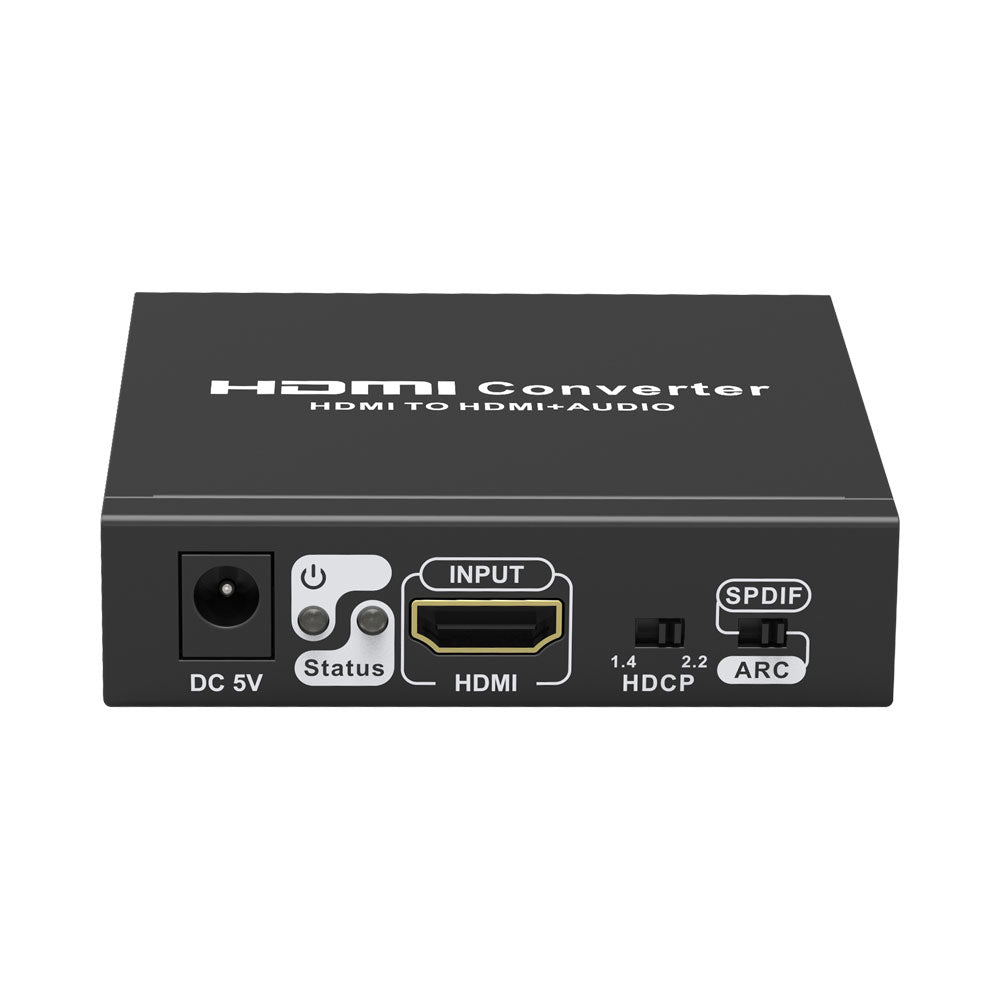

LENKENG HDMI TO HDMI + AUDIO EXTRACTOR V2.0

Features

• One HDMI input converted to one HDMI Video + (SPDIF+R/L+COAXIAL) Audio output
• (SPDIF optical audio output and COAXIAL audio output cannot be used simultaneously
• R/L stereo output is not available when using the ARC function)
• Supports HDMI2.0, HDCP2.2, HDCP1.4
• Supports HDCP1.4 to HDCP2.2 and HDCP2.2 to HDCP1.4 conversion
• Supports 3D video format
• Supports ARC function
• Supports HDR
• Resolution supported is up to 4Kx2K@60Hz Ultra HD
• Supports YUV4:2:0 / 4:2:2 / 4:4:4 and RGB 4:4:4
• Lossless transmission
• Plug and play, easy installation

Specifications

• HDMI Compliance: HDMI2.0
• HDCP Compliance: HDCP2.2, HDCP1.4
• HDMI Resolution: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4Kx2K @24 / 25 / 30 / 60Hz
• Audio Formats: Dolby, DTS, LPCM
• Maximum Transfer Rate: 18Gbps
• Input and Output TMDS Signal: 0.7~1.2vp-p
• Input and Output DDC Signal: 5vp-p (TTL)
• Supported Input/Output Cable Lengths: ≤5m (AWG24)
• Dimension: 80 (L) x 80 (W) x 19.5 (H) mm
• Weight: 175g

Shipping Dimensions

• Weight: 0.60 kg
