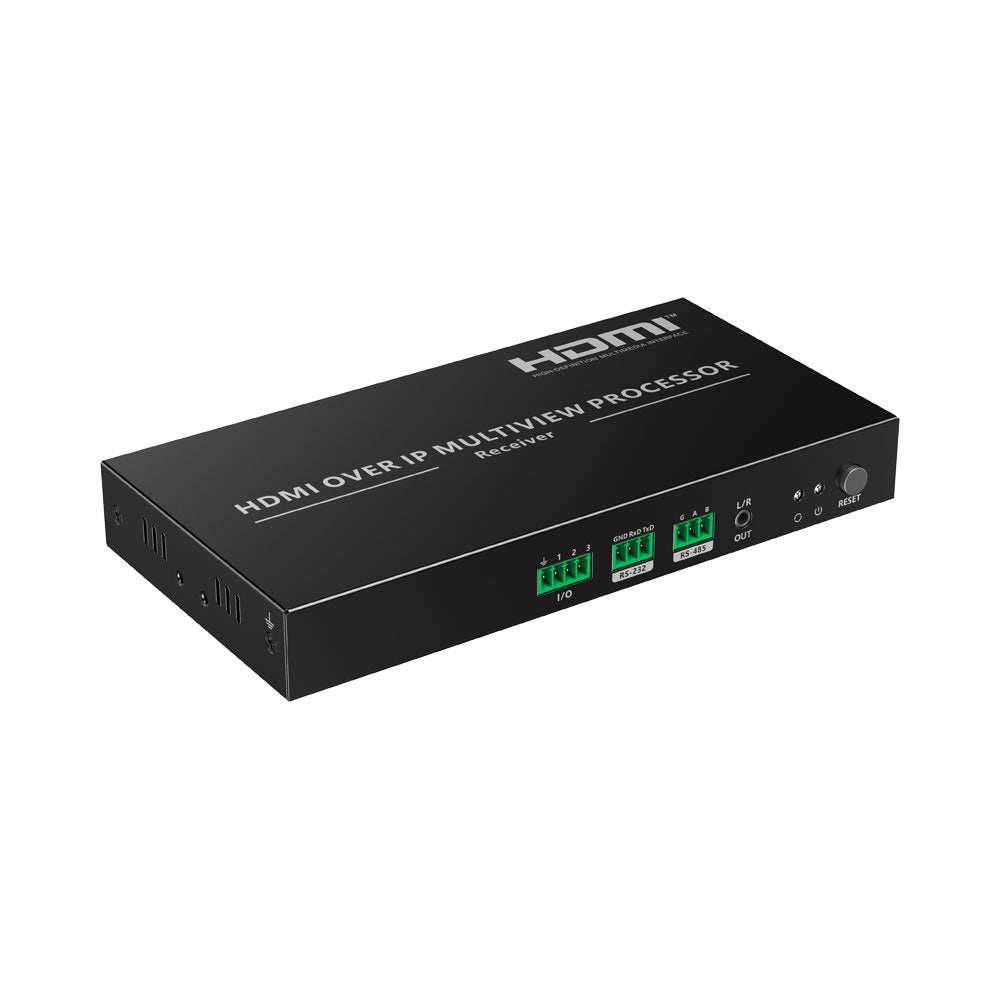

LENKENG HDMI MULTIVIEW PROCESSOR

Features

• Built on ipcolor STREAM technology to deliver high-definition and low-latency transmission
• Supports up to 3840×2160 @60Hz resolution
• Compatible with Cat5e/6 or higher-level networking cables, transmission distance of CAT6 cable is 120m
• The actual distance may vary slightly due to different switch performances
• Supports switch cascading
• Supports RS232 / RS485 Control
• Supports IR learning remote and control device by APP (20~60KHz)
• Supports I/O interface control
• Supports POE (Power over Ethernet)
• Supports 3.5mm L/R channel audio separation
• After connecting to the iMCS over IP matrix, it supports receiving and processing multiple signals simultaneously
• Paired with the iMCS APP, allowing remote control of the screen display view, providing four-panel and nine-panel screen view, also allowing for the adjusting of the view size and position
• Firmware upgrading

Specifications

• Input Interface: 1× RJ45
• Output Interface: 1× HDMI
• Max. HDMI Length: ≤5m
• Max. Transfer Rate: 18Gbps
• Compatibility: HDMI 2.0, HDCP 1.4 / HDCP 2.2
• Supported Resolutions: 4096×2160 @24/30Hz, 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz, 720p @50/60Hz, 1920×1200 @60Hz, 2560×1440 @60Hz
• Connection Types: Regular Switch Connection, Switch Cascade
• Transmission Distance: CAT6 / CAT6A / CAT7 ≤120m
• Transmission Latency: 180~250ms
• HDMI Output: LPCM 2.0
• 3.5mm Audio Format: LPCM 2.0
• IR Frequency: 20~60kHz
• RS232 / RS485 Baud Rates: 2400 to 115200 (Default 115200)
• I/O: Output Control Instructions Supported
• Power Supply: DC 5V 2A
• Power Consumption: ≤8W
• Working Temperature: -20~60°C
• Storage Temperature: -30~70°C
• Humidity: 0~90% RH (Non-Condensing)
• Housing: Metal
• Dimensions (L × W × H): 191 × 96 × 25mm
• Weight: 518g
• Color: Black
• Protection: ESD Protection, Lightning Protection, Surge Protection (Contact Discharge Level 2, Air Discharge Level 3,

IEC61000-4-2 Standard)

Shipping Dimensions

• Length: 24 cm
• Width: 17.6 cm
• Height: 8 cm
• Weight: 0.88 kg
