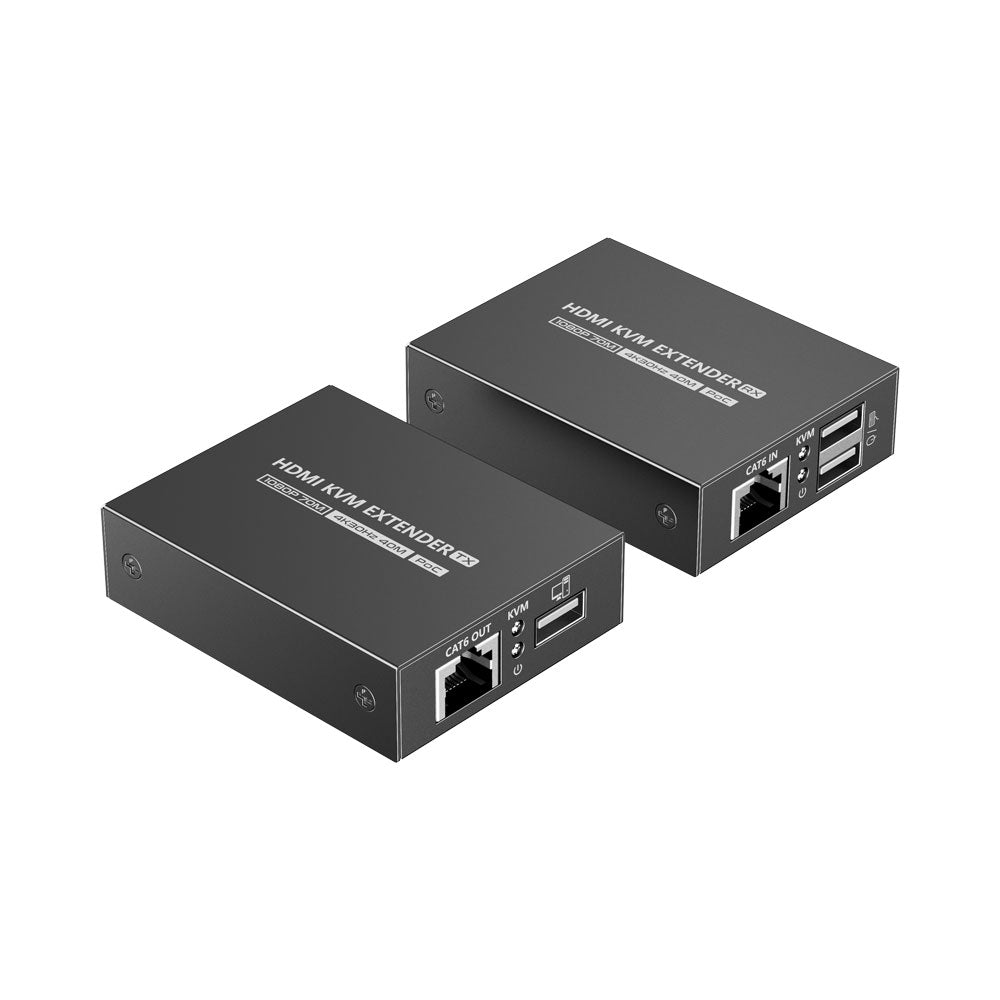

Features
- Zero Latency Uncompressed HDMI Video Signal
- Extends 1080p @60Hz up to 70m via CAT6/6A/7 Network Cable
- Supports HDR10
- Supports Power-Over-Cable
- Supports KVM Control
Specifications
Video Signal
- Transmission Medium: CAT6/6A/7
- HDMI Cable: 3~5m | 3~5m
- Max Transmission Rate: 10.2Gbps
- HDR10: Yes
- EDID Through: Yes
- KVM: Yes
- Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS)
- Input and Output DDC Signal: 5Vp-p (TTL)
- Compatibility: HDMI 1.4, HDCP 1.4
Resolution: 800 × 600, 1024 × 768, 1280 × 720,1280 × 960, 1366 × 768, 1440 × 900,1680 × 1050, 1920 × 1080, 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @24/25/30/50/60Hz, 3840 × 2160 @24/25/30Hz
- Distance: CAT6/6A/7 | 1080p @60Hz Transmission up to 70m, 4K @30Hz Transmission up to 40m
Audio Signal
- Formats: DTS, DTS-HD, PCM, LPCM
Power Supply
- Interface: 1× DC5V 2.1 Jack without Thread
- Voltage: DC5V 2A (Only TX Needs Power Supply)
- Working Power: TX and RX <10W
Operating Environment
- Operating Temperature: -20~60°C
- Storage Temperature: -30~70°C
- Humidity: 0~90% (No Condensation)
Physical Properties
- Input: 1× DC2.1, 1× HDMI, 1× USB Type-A1× DC2.1, 1× RJ45, 12 USB Type-A
- Output: 1× RJ45, 1× HDMI
- Material: Metal
- Weight: 123g, 123g
- Colour: Black
- Dimensions (L × W × H): TX: 75 × 60 × 20mm, RX: 75 × 60 × 20mm
- Static Protection Implementation of the standard: IEC61000-4-2, 1a Contact Discharge Level 2 (±4KV), 1b Air Discharge Level 3 (±8KV)
- Certification: FCC/CE/RoHS
