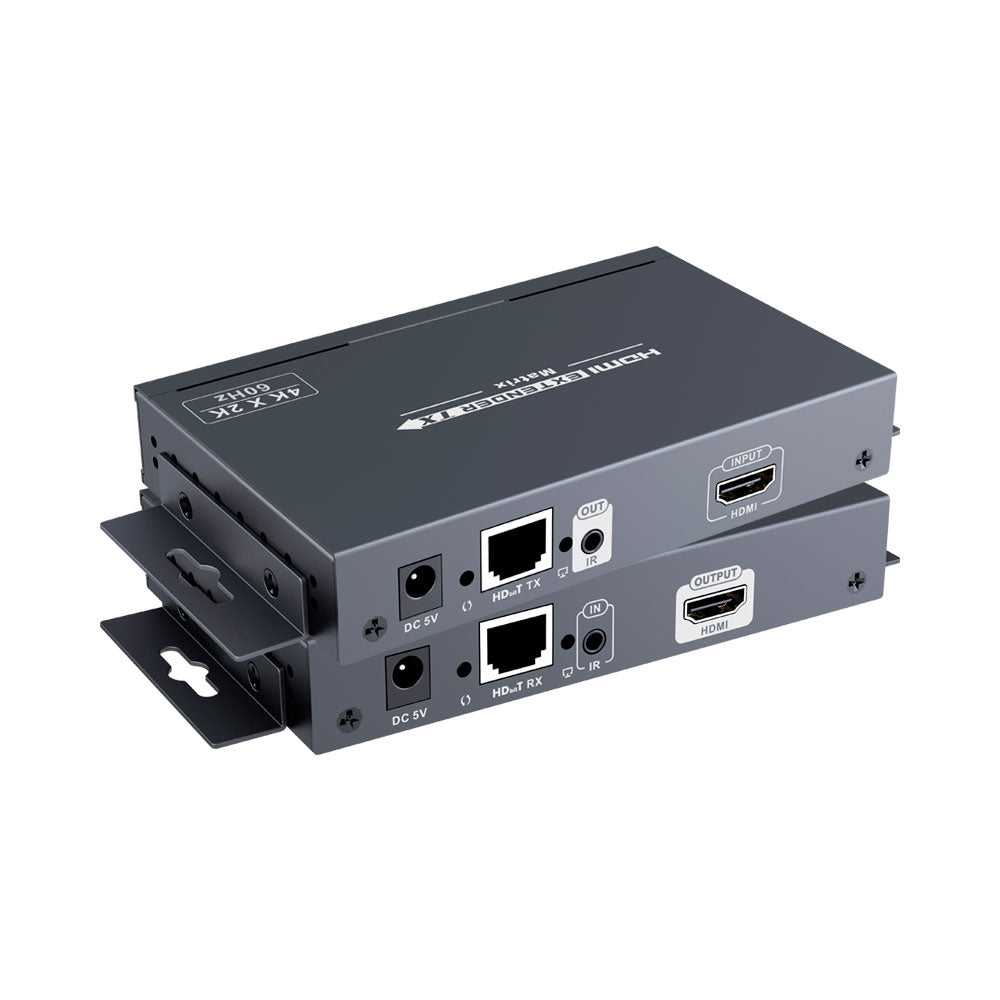

LENKENG HDBITT 4K@60HZ HDMI2.0 MATRIX OVER IP CAT6

Features

• Route multiple HDMI sources to multiple HDMI displays through LAN switch supporting IGMP
• Support up to 100 transmitters input, output is unlimited
• Extend HDMI signal over a single CAT5/5e/6 cable
• Support transmission distance up to 394ft/120m up to 4Kx2K@60Hz
• Support point to point and point to multi-point connection
• Support IR pass-back function to control source device from Receiver location
• Support to select and switch source device input from receiver via remote control and hard button
• Support computer control software to select and switch source device input
• Wall-mounting kits with screws
• HDMI 2.0 and HDCP 2.2 compliant

Specifications

• Voltage/Current: DC5V/3A
• Power Consumption: TX: 7W, RX:＜10W
• HDMI Compliance: HDMI2.0
• HDCP Compliance: HDCP2.2
• HDMI Input Resolution: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz,4Kx2K @24/25/30/60Hz
• HDMI Output Resolution: 1080p @60Hz, 4Kx2K @30/60Hz
• Supports Audio Formats: PCM
• Maximum Transfer Rate: 18Gbps
• Input and Output TMDS Signal: 0.7~1.5Vp-p (TMDS)
• Input and Output DDC Signal: 5Vp-p (TTL)
• Input Cable Length: ≤5m( AWG26)
• Output Cable Length: ≤5m(AWG26)
• APP Control: Support APP control, user can scan, preview, build up their configuration by using a phone/tablet easily, OS system supports IOS and Android
• IR Remote Control: Supports IR passback with 20~60KHz frequancy
• Transfer Method: Over UTP/STP CAT5/5e/6
• Transmission Distance: 120m
• Connector: RJ45
• Delay: ≤200 ms
• Electrostatic Protection of the Whole Machine: 1a Contact discharge level 3, 1b Air discharge level 3, Standard: IEC61000-4-2
• Working Temperature: 0~50°C
• Storage Temperature: -10~70°C
• Humidity (No Condensation): 0~90%
• Dimension164(L) x 108.5(W) x 23.6(H)mm
• Material: Iron Alloy Material + Crystal Panel
• Finishing: Grit blast
• Colour: Black
• Weight: TX:330g, RX:330g
• Mean Time Between Failures: >30000 Hours (MTBF)

Shipping Dimensions

• Weight: 0.90 kg
