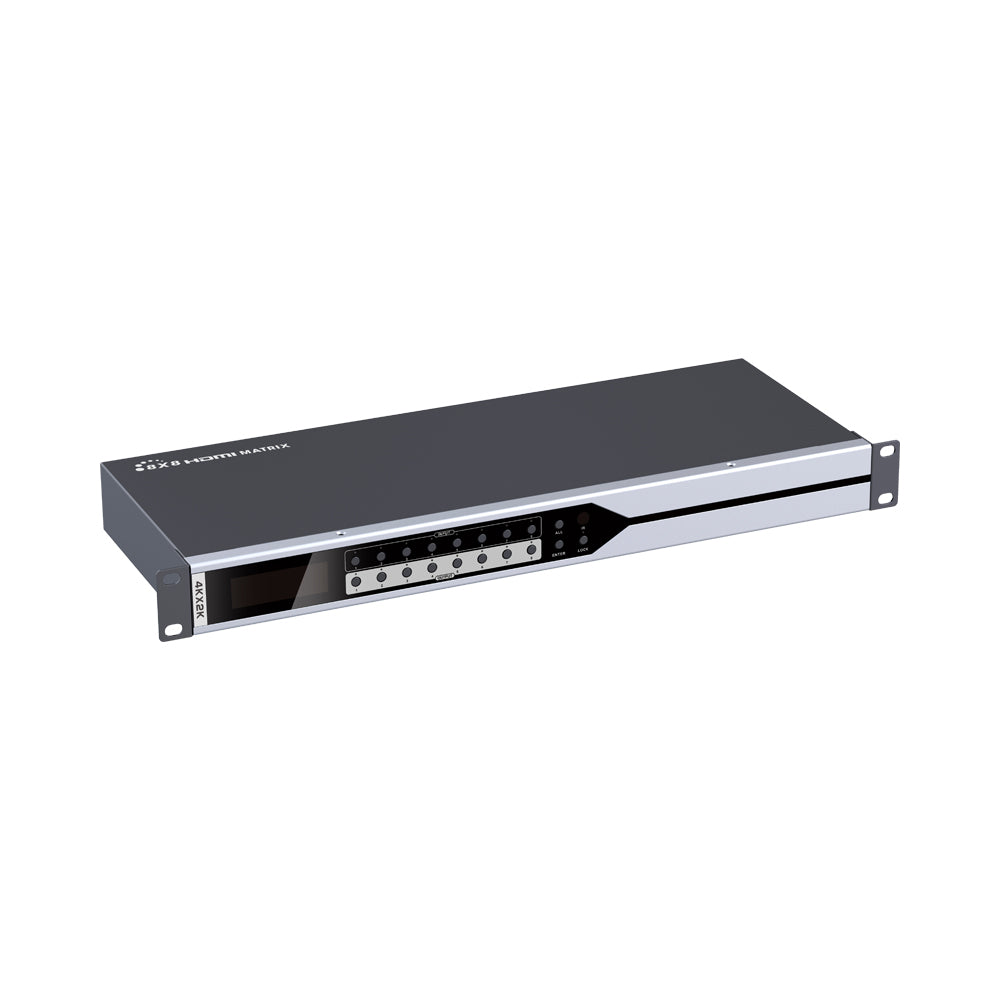

LENKENG 8X8 HDMI MATRIX SWITCH 4KX2K (30HZ)

Features

• Connect up to 8× HDMI Sources and Output to 8× Displays Simultaneously
• Crystal-Clear 4K @30Hz Resolution
• Ultra-Fast 10.2Gbps Transmission Data Rate
• Easy IR Remote Control for Seamless Switching
• RS232 Control for Advanced Integration
• 3D Ready for Immersive Viewing
• Pure Hardware, Plug-and-Play Design - No Software Needed
• Quick Button Control for Effortless Input/Output Switching

Specifications

• HDMI Signal: HDMI 1.4, Fully Compatible with HDCP1.4
• Inputs: 8× HDMI
• Outputs: 8× HDMI
• Transmission Rate: 10.2Gbps
• Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60 Hz, 1080i @50/60Hz, 1080p @50/60 Hz, 4K @25/30Hz
• Supported Audio Formats: DTS-HD / Dolby-true HD / LPCM7.l / DTS / Dolby-AC3 / DSD
• YUV: 4:2:2
• Video Signal: 0.5~1.5Vp-p (TMDS)
• DDC Signal: 5Vp-p (TTL)
• Video Bandwidth: 340MHz
• HDMI Port: Type-A 19-pin, Female
• RS232: Serial Control
• Working Temperature: 0~60°C
• Working Humidity: 0~90% (No Condensation)
• Power Supply: DC12V 3A
• Power Consumption: 27W (Max.)
• Dimensions (L × W × H): 482.45 × 179.60 × 44.40mm
• Weight: 2.07kg
• Colour: Black
