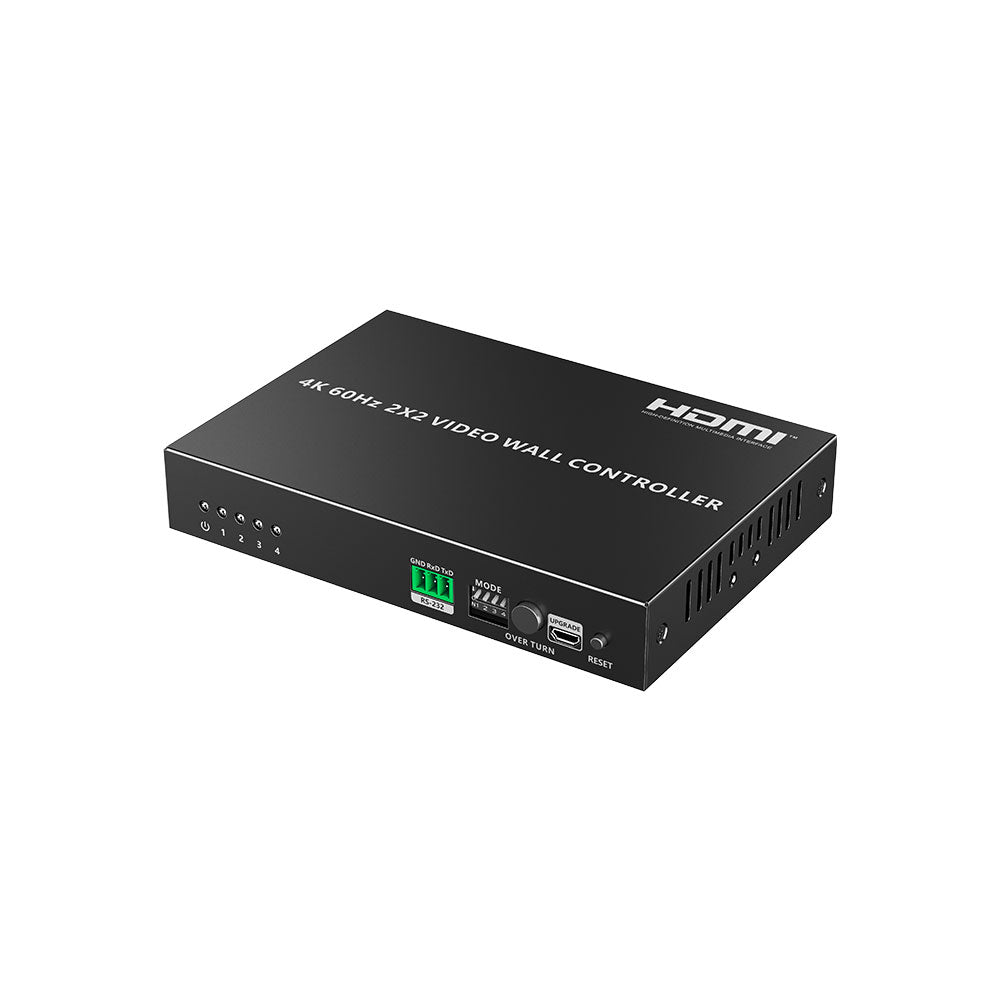

Features
- 1× HDMI signal input and 4× HDMI signal output
- Supports up to 3840×2160 @60Hz resolution, downwards compatible
- Variety of splicing modes, such as 1×1/1×2/1×3/1×4/2×1/3×1/4×1/2×2
- Dip switch splicing mode and RS232 control instruction to set splicing mode
- 3.5mm Left/Right channel audio output
- 180° Rotation of HDMI l/2 display image in 2x1/2x2 mode (when the upper displays are installed upside down)
- Firmware upgrade via micro USB port
- Lightning, Surge and ESD Protection
Specifications
Video Signal
- HDMI Input: 1× HDMI
- HDMI Output: 4× HDMI
- Compatibility: HDMI 2.0, HDCP 1.4 / HDCP 2.0
Resolutions:
Input Resolution: up to 3840×2160 @60/50/30/25/24Hz, also supports 1080p @60/50/30/25/24Hz
Output Resolution: up to 3840×2160 @60Hz
Audio Output
- 3.5mm Left/Right Channel Audio Output (LPCM 2.0)
- HDMI Output Audio: Supports Dolby Digital 5.1CH / DTS 5.1CH / LPCM 2.0
Display Wall / Splice Modes
- Supported Display Wall / Splice Modes: 1×1, 1×2, 1×3, 1×4, 2×1, 3×1, 4×1, 2×2
- Splicing Mode Configurable via DIP Switches or via RS232 Commands
Other Features
- 180° Rotation of HDMI Display Image in 2×1 or 2×2 Mode (For When Upper Displays Are Installed Upside-Down)
- Firmware Upgrade via Micro-USB Port
- Built-In Lightning, Surge and ESD Protection
Power and Environment
- Power Supply: DC 12V 2A
- Power Consumption: <9W
- Operating Temperature Range: –20~60°C
- Storage Temperature Range: –30~70°C
- Humidity: 0–90% RH (Non-Condensing)
Physical Properties
- Housing: Metal (Black)
- Weight: 514g
- Dimensions (L × W × H): 148.5 × 103 × 25mm
Shipping Dimensions
- Length: 19.9 cm
- Width: 14.9 cm
- Height: 8 cm
- Weight: 0.60 kg
