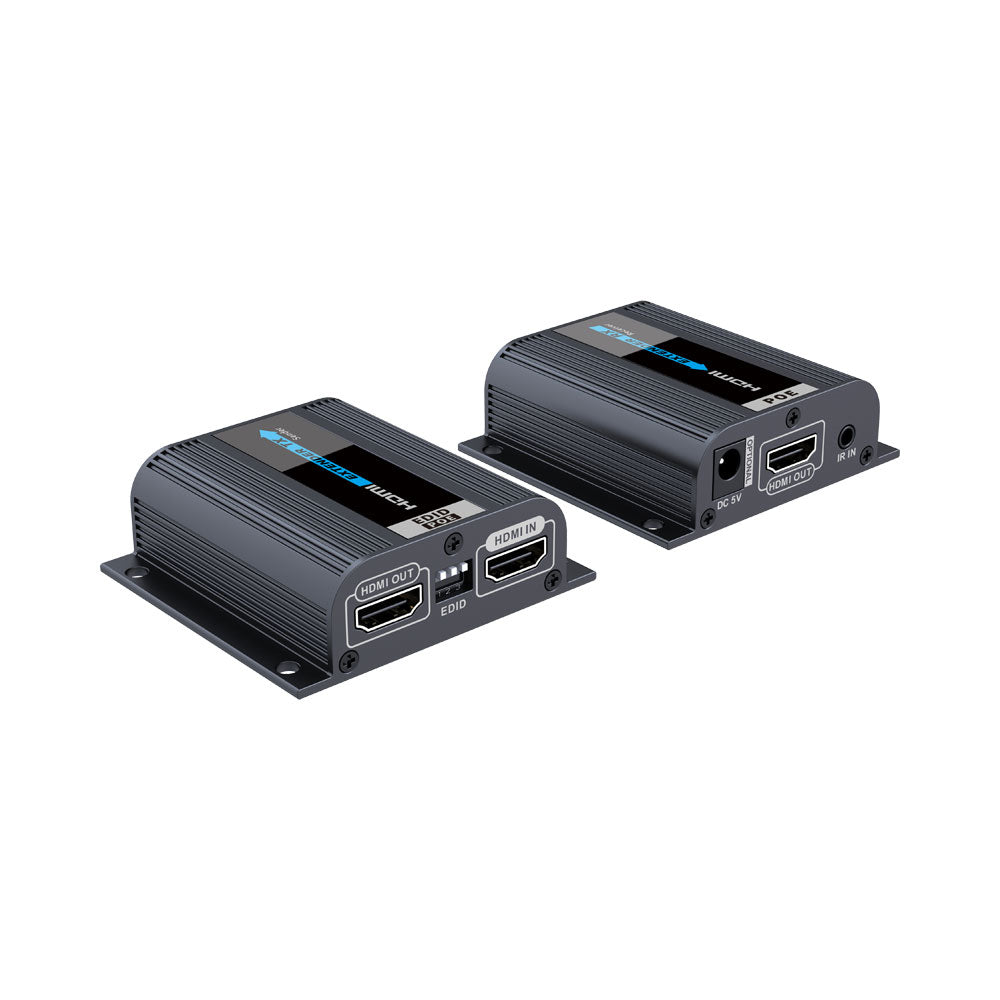

LENKENG 40M HDMI EXTENDER OVER CAT6, EDID

Features

• Supports resolutions up to 1080p
• Supports EDID Dial Switch for switching HDMI output resolution and audio format
• Supports EDID pass-through for smart match between the source device and display device
• Supports IR pass-back with 20~60KHz IR frequency function to control source device from receiver location
• Supports one HDMI output at the local unit
• Uncompressed and zero latency
• Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable

Specifications

• HDMI Signal: HDMI1.4a, Full compatible with HDCP1.2a
• HDMI Resolution: 480p / 576p / 720p / 1080p

Transmission Distance: 40m via CAT6

• Audio Format: PCM, AC3, DTS
• Power Supply: DC 5V2A (1pc Only)
• Dimension: 71.6 (L) x 66.9 (W) x 22.6 (H) mm Each
• Weight: 70g Each

Shipping Dimensions

• Weight: 0.50 kg
