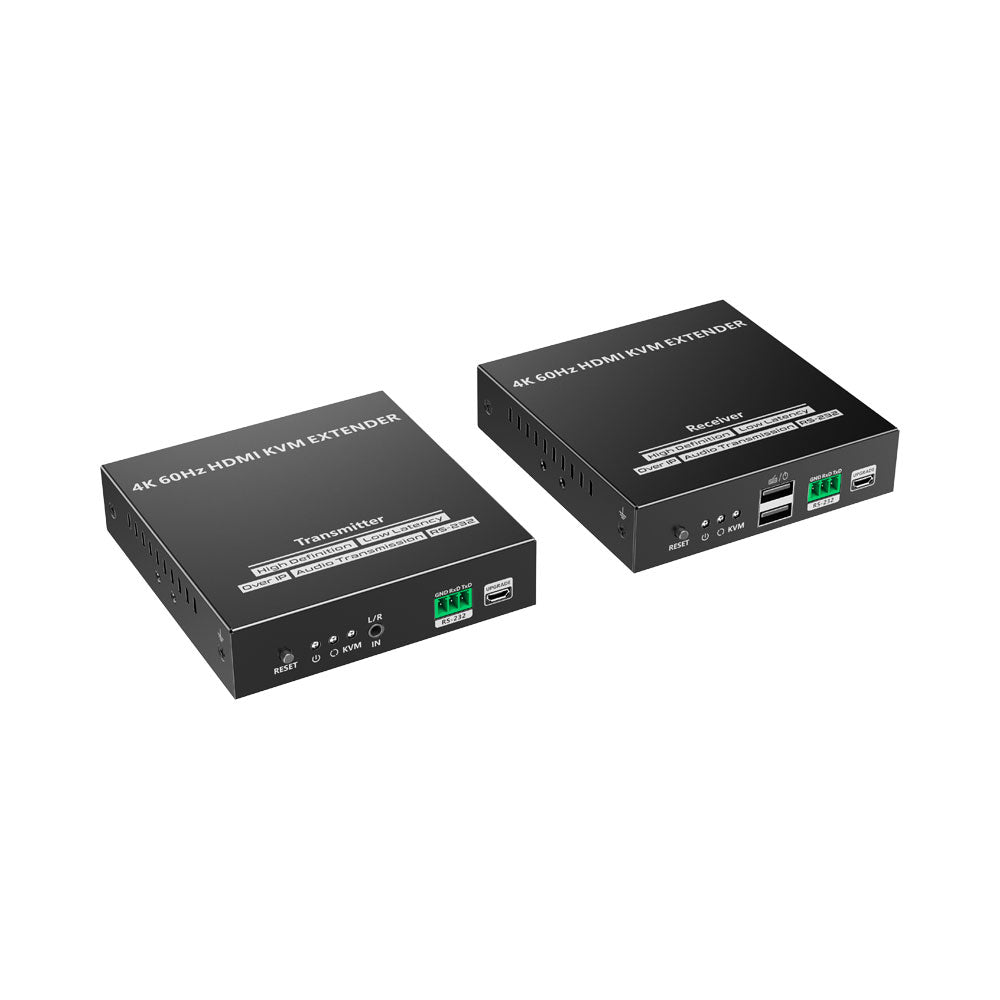

LENKENG 120M HDMI KVM EXTENDER OVER CAT5E/6/6A/7

Features

• Supports Resolutions up to 4K @60Hz
• ipcolor STREAM Technology
• Connects One-to-One or One-to-Many
• KVM Function

Specifications

• HDMI Cable Length: ≤5m
• Maximum Transfer Rate: 18Gbps
• Compatibility: HDMI 2.0, HDCP 2.2/1.4
• Supported Resolutions: 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz; 720p @50/60Hz, 1920×1200 @60Hz, 2560×1440 @60Hz, 2560×1600 @60Hz
• Connection Types: One-to-One Connection, One-to-Many Connection, Switch Cascading
• Maximum Transmission Distance: Over CAT6/6A/7 Cable ≤120m
• Transmission Latency: 80~140ms
• Audio Support: HDMI Output LPCM 2.0, 3.5mm L/R Output PCM
• RS232 Command Signal (GND/RXD/TXD): Supported Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
• Power Supply: DC 5V 2A
• Power Consumption: TX ≤5.5W, RX ≤4W
• Operating Temperature Range: –20~60°C
• Storage Temperature Range: –30~70°C
• Humidity Range: 0–90% RH (No Condensation)
• Housing: Material Metal, Colour Black
• Dimensions (L × W × H): 106 × 103 × 20.6mm
• Weight: TX 315g, RX 307g
• Protection: ESD, Lightning and Surge Protection - Meets Standard IEC61000-4-2 (Contact Discharge ±4kV, Air Discharge ±8kV)

Shipping Dimensions

• Weight: 0.90 kg
