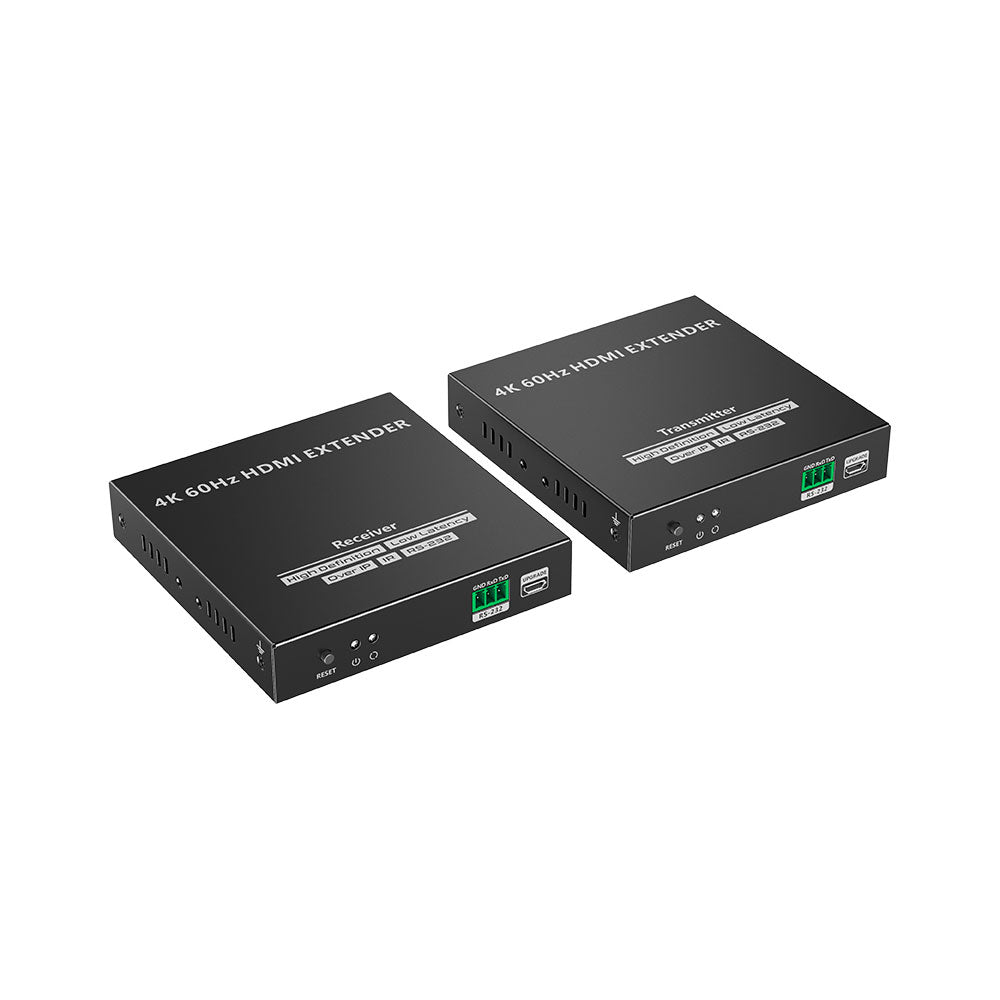

LENKENG 120M HDMI EXTENDER IPCOLOR (4K@60Hz)

Features

• Resolutions up to 4K @60Hz (3840×2160)
• Extend up to 120m
• Low Latency
• IR Passback
• RS232 Control
• Lightning, Surge and ESD Protection

Specifications

• HDMI Length: ≤5m
• Maximum Transfer Rate: 18Gbps
• Compatibility: HDMI 2.0, HDCP 1.4 / HDCP 2.2
• Supported Resolutions: 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz, 720p @50/60Hz; 1920×1200 @60Hz, 2560×1440 @60 Hz, 2560×1600 @60Hz
• Connection Types: One-to-One, One-to-Many, Switch Cascading
• Transmission Distance: CAT6/6A/7 ≤120m
• Transmission Latency: 70~180ms
• IR Receiving Range: ≤5m
• IR Frequency Range: 20~60kHz
• RS232 (GND/RXD/TXD): Default Baud Rate 115200; Supported Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
• Power Supply: DC 5V 1A
• Power Consumption: TX: ≤4.5W, RX: ≤2.5W
• Operating Temperature: –20~60°C
• Storage Temperature: 30~0°C
• Humidity: 0~90% RH (No Condensation)
• Housing: Metal
• Weight: TX: 254g, RX: 242g
• Colour: Black
• Dimensions (L × W × H): 106 × 103 × 20.6mm
• Protection: ESD Protection, Contact Discharge Level 2 (±4kV); Air Discharge Level 3 (±8kV); Meets IEC61000-4-2 Standard, Lightning and Surge Protection

Shipping Dimensions

• Length: 24 cm
• Width: 17.6 cm
• Height: 8 cm
• Weight: 0.85 kg
