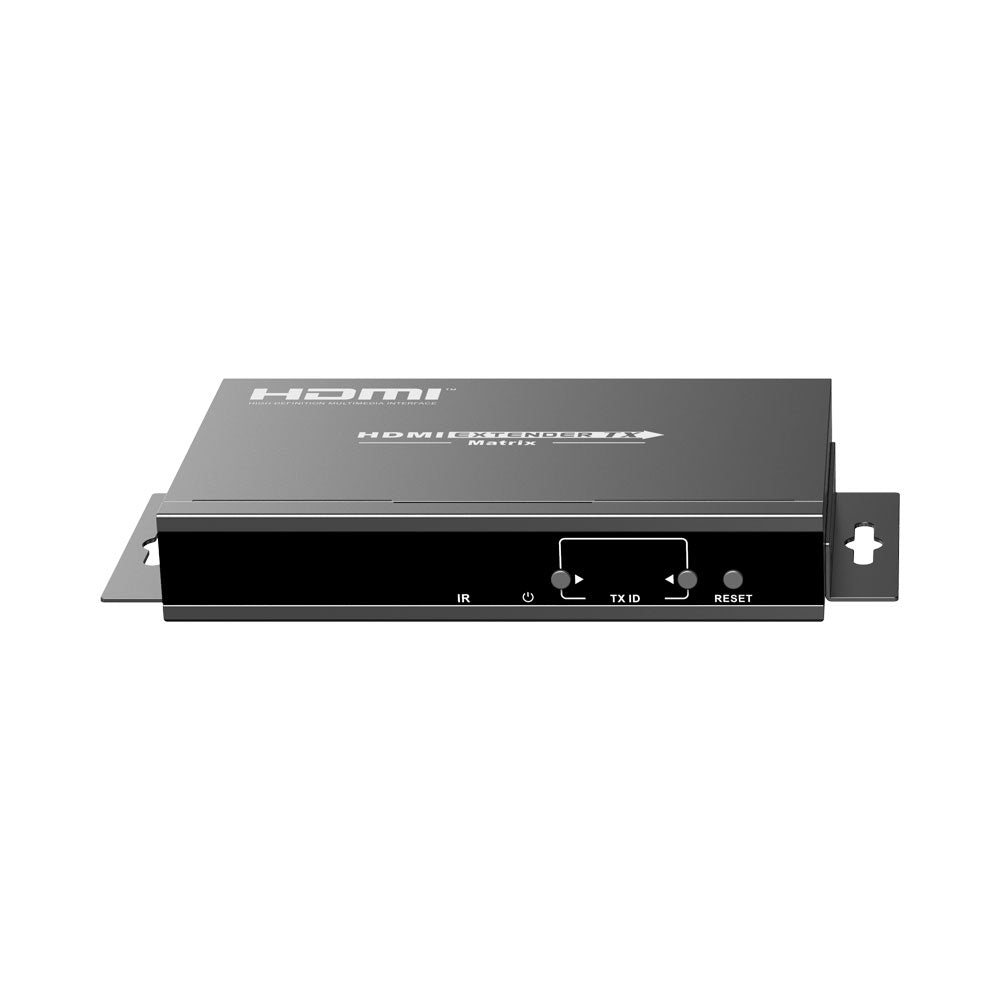

LENKENG 120M HDBITT HDMI EXTENDER MATRIX KIT

Specifications

• HDMI signal: HDMI1.3,compliant to HDCP
• Network Bandwidth: 18Mbps
• Supported Resolution: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720 p@50/60Hz, 1080 i@50/60Hz, 1080 p@50/60Hz
• Audio Format: PCM
• TMDS signal: 0.7-1.2Vp-p
• DDC signal: 5Vp-p
• Remote Control: Supported
• IR Pass-Back: Supports 20~60KHz IR devices
• Matrix Configuration: Up to 100 source signals can be connected and switched to infinite output
• Power Supply: 5V 2A
• Power Consumption: TX＜4W, RX＜4W
• Weight: TX: 260g, RX: 250g Each
• Protection: Lightning Protection, Surge Protection and ESD Protection
• Dimensions: 133.8 (L) x 83.8 (W) x 23.8mm (H)
• Working Temperature: 0~60°C
• Storage Temperature: -20~70°C
• Relative Humidity: 0~95% (No Condensation)
• Colour: Black

Shipping Dimensions

• Weight: 0.80 kg
