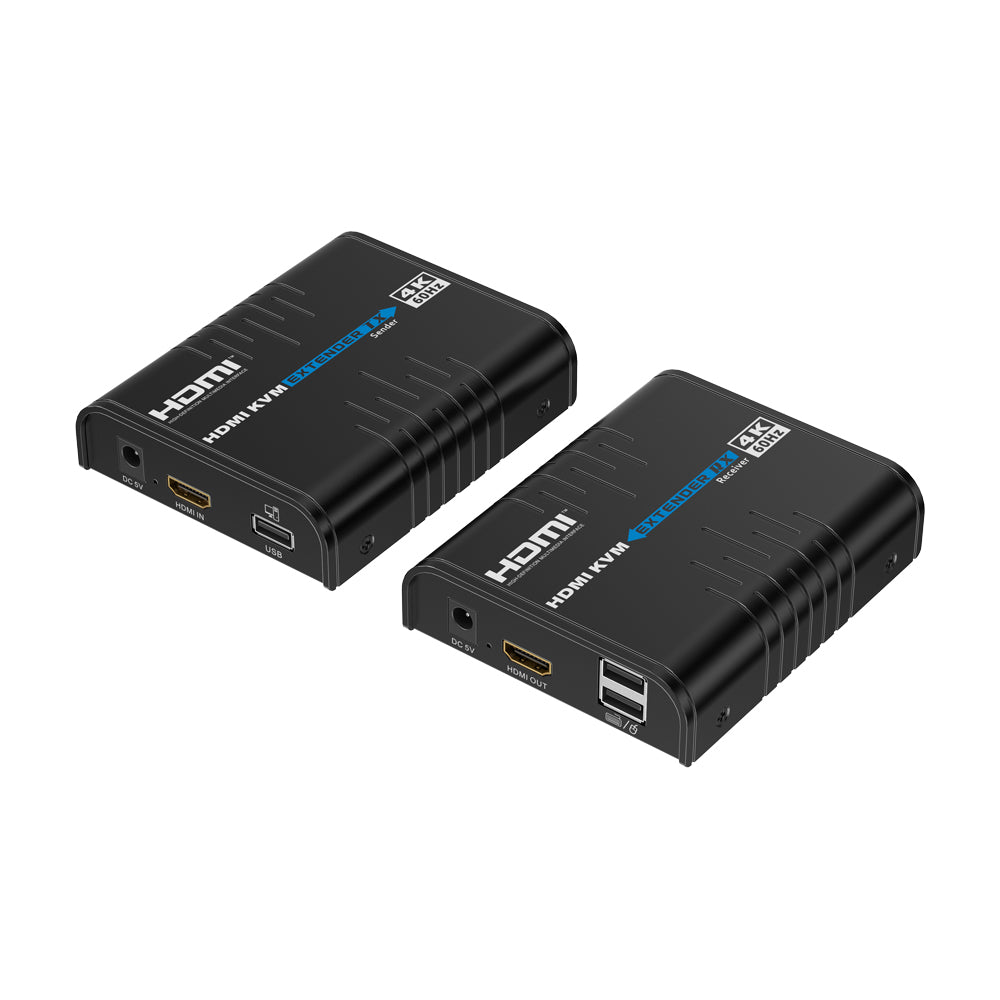

LENKENG 120M 4K60HZ HDMI KVM IP EXTENDER 200M

Features

• High-Definition Low-Latency Transmission - Ensures smooth reliable HDMI signal delivery
• Ultra HD 4K Resolution Support - Supports up to 4096×2160 @60Hz with backward compatibility
• Long-Distance LAN Extension - Works over CAT5, CAT5e, CAT6 or higher cables with up to 120m transmission using CAT6
• Flexible Network Configuration - Supports one-to-one or one-to-many connections via a gigabit network switch
• KVM Control Signal Passback - Enables keyboard and mouse control at the remote display location
• Firmware Upgrade via Micro USB - Allows easy updates and feature improvements
• Comprehensive Protection Design - Includes lightning, surge and ESD protection
• Designed for 24/7 Operation - Built for stable continuous professional use

Specifications

• HDMI Length: ≤5m
• Maximum Transfer Rate: 18Gbps
• Compatibility: HDMI 2.0, HDCP 1.4 / HDCP 2.2
• Resolutions Supported: 4096×2160 @24/30/50/60Hz, 3840×2160 @24/30/50/60Hz, 1080p @24/25/30/50/60Hz, 720p @50/60Hz, 576p @60Hz, 480p @60Hz, 1920×1200, 1680×1050, 1600×900, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600
• Transmission Distance: CAT5 ≤80m, CAT5e ≤100m, CAT6 ≤120m
• Transmission Latency: 1080p 80~110ms, 4K @60Hz 120~170ms
• HDMI Output: LPCM 2.0
• Power Supply: DC 5V 1A (TX and RX)
• Power Consumption: TX ≤3.5W, RX ≤2.5W
• Working Temperature: -20~60°C
• Storage Temperature: -30~70°C
• Humidity (No Condensation): 0~90% RH
• Housing: Metal
• Weight: TX 240g, RX 243g
• Colour: Black
• Dimensions (L × W × H): 109.6 × 89.5 × 26.3mm (TX and RX)
• Protection: ESD (Contact Discharge Level 2, Air Discharge Level 3 - IEC61000-4-2), Lightning and Surge Protection
