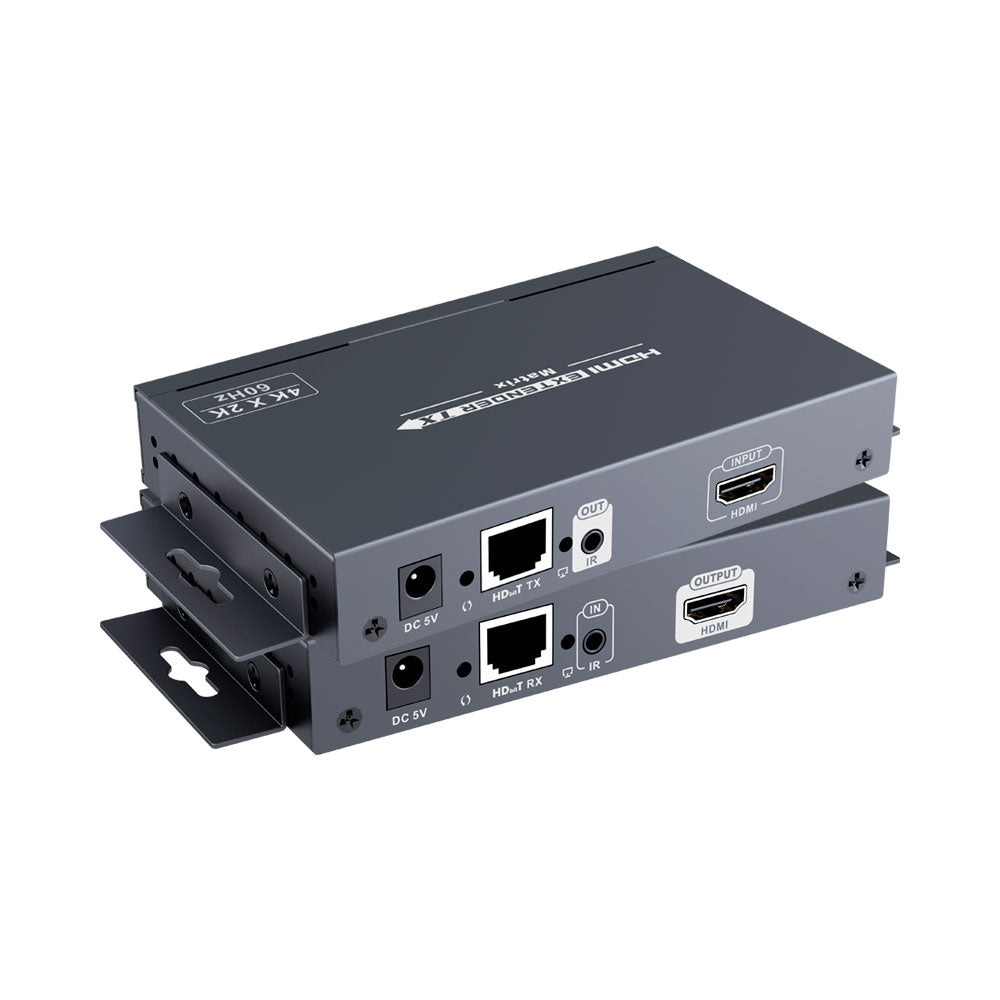

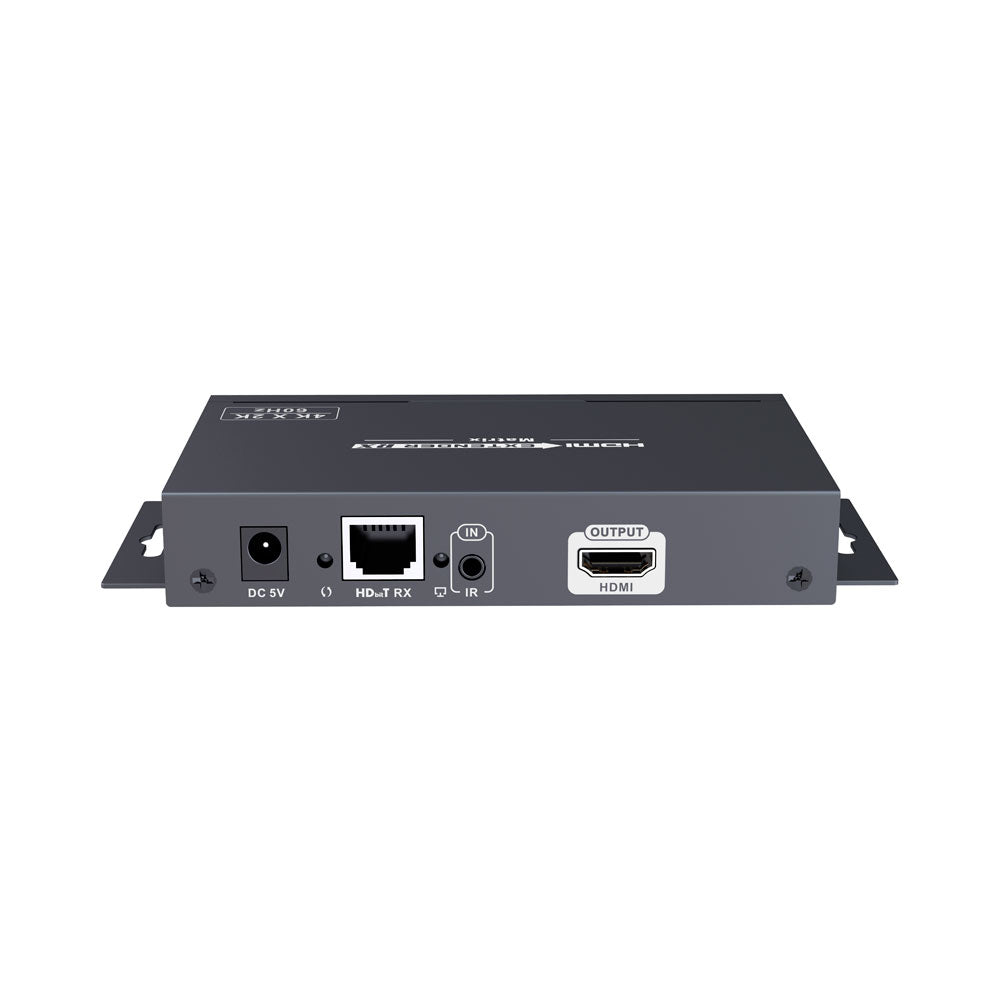

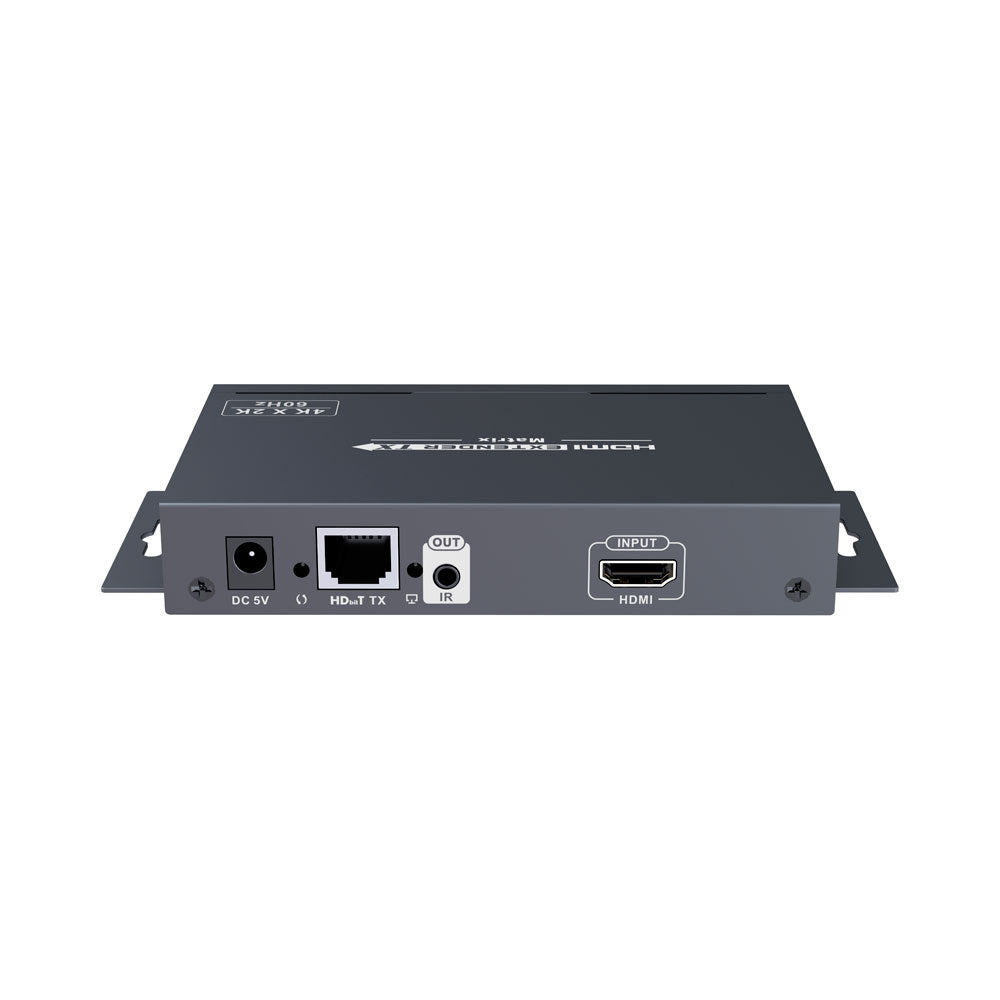

Lenkeng 120m 4K HDbitT HDMI2.0 Matrix Over CAT6 Extender With PoE (LKV393MATRIX)
This HDMI extender matrix applies advanced HDbitT over IP technology, to build up a many-to-many HDMI 2.0 extender matrix with IGMP LAN switch. It supports up to 100 pcs transmitters input and unlimited receivers output. It transmits the signal over a single CAT5/5e/6 cable up to 120 meters.
Features:

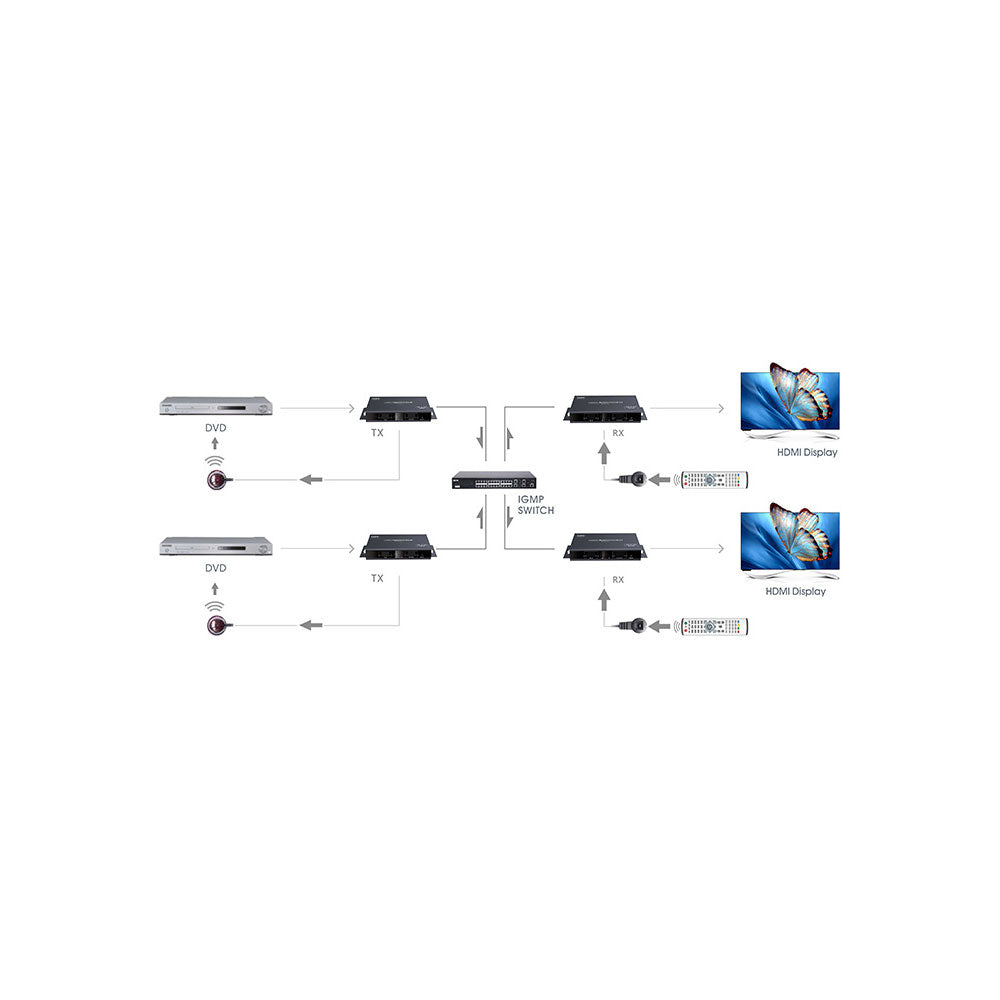

- Route multiple HDMI sources to multiple HDMI displays through a LAN switch supporting IGMP
- Support up to 100 transmitters input, output is unlimited
- Extend HDMI signal over a single CAT5/5e/6 cable
- Support transmission distance up to 394ft/120m up to 4KX2K@60Hz
- Support point-to-point and point-to-multi-point connection
- Support IR pass-back function to control source device from Receiver location
- Support to select and switch source device input from the receiver via remote control and hard button
- Support computer control software to select and switch source device input
- Wall-mounting kits with screws
- HDMI 2.0 and HDCP 2.2 compliant
| Items |
Specification |
| Voltage/Current |
DC5V/3A |
| Power consumption |
TX: 7W RX:＜10W |
| HDMI compliance |
HDMI2.0 |
| HDCP compliance |
HDCP2.2 |
| HDMI input resolution |
480i@60Hz, 480p@60Hz, 576i@50Hz, |
| |
576p@50Hz, 720p@50/60Hz, |
| |
1080i@50/60Hz, 1080p@50/60Hz,4Kx2K @24/25/30/60Hz |
| HDMI output resolution |
1080p@60Hz, 4Kx2K@30/60Hz |
| Supports audio formats |
PCM |
| Maximum transfer rate |
18Gbps |
| Input and output TMDS signal |
0.7～1.5Vp-p(TMDS) |
| Input and output DDC signal |
5Vp-p(TTL) |
| Input cable length |
≤5m(AWG26) |
| Output cable length |
≤5m(AWG26) |
| APP control |
Support APP control, user can scan, preview, and build up their configuration by using a phone/tablet easily, OS system supports IOS and Android. |
| IR remote control |
Supports IR passback with 20~60KHz frequency |
| Transfer method |
Over UTP/STP CAT5/5e/6 |
| Transmission distance |
120 Meters |
| Connector |
RJ45 |
| Delay |
≤200 ms |
| Electrostatic protection of the whole machine |
1a Contact discharge level 3 |
| |
1b Air discharge level 3 |
| |
Standard: IEC61000-4-2 |
| Working temperature |
0～50℃ |
| Storage temperature |
-10～70℃ |
| Humidity (no condensation) |
0～90% |
| Dimension |
164(L) x108.5(W) x 23.6(H)mm |
| Material |
Iron alloy material + crystal panel |
| Finishing |
Grit blast |
| Color |
Black |
| Weight |
TX:330g, RX:330g |
| Mean time between failures |
>30000 Hours |
| (MTBF) |
|
