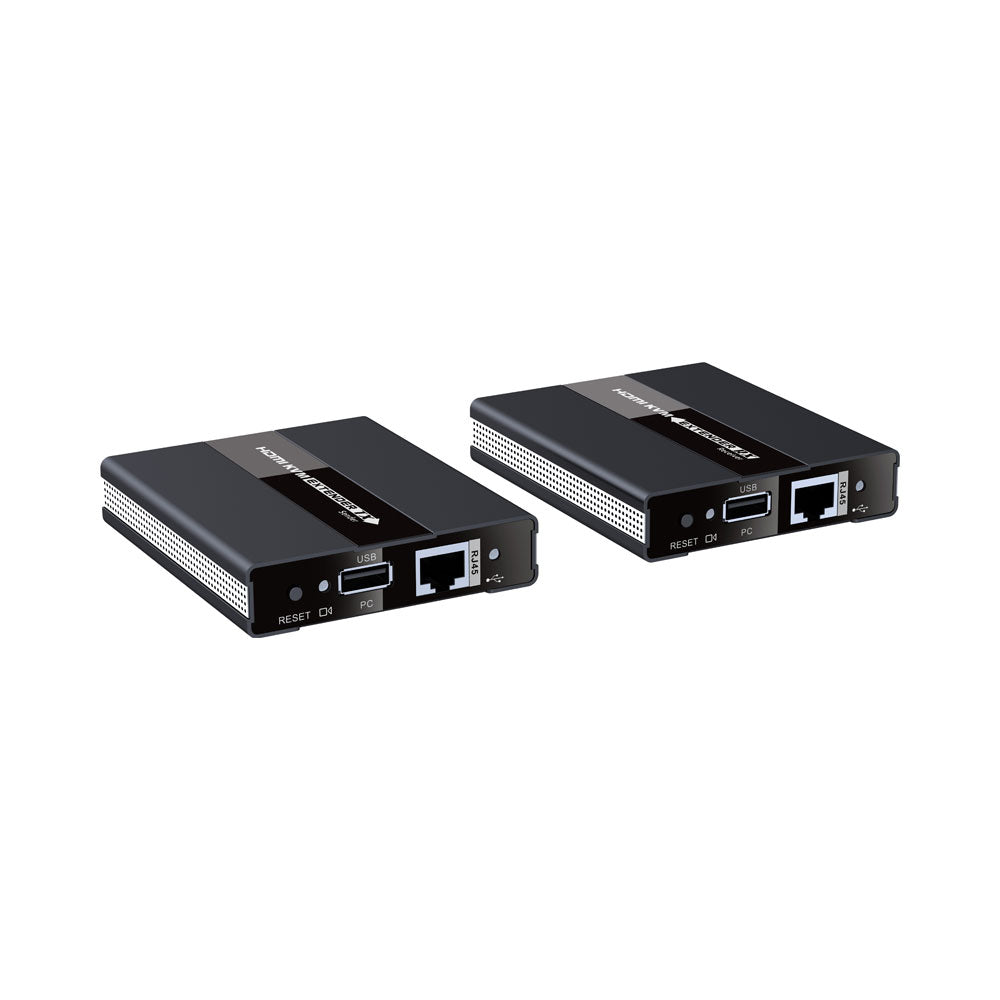

LENKENG 100M 4K UNCOMPRESSED HDMI KVM EXTENDER..

Features

• Uncompressed 4K Transmission - Delivers high-quality video up to 4K @30Hz
• USB KVM Control - Remotely control the source PC using keyboard and mouse
• Long Distance Extension - Extend HDMI signals up to 100m over CAT6/6A/7 cable
• Ultra-Low Latency Transmission - Near zero-delay performance for real-time operation
• HDMI Loop-Out on Transmitter - Connect a local display while transmitting to a remote screen
• One-to-Many Distribution - Expand to multiple receivers via a Gigabit network switch
• HDCP 2.2 Support - Ensures compatibility with protected digital content
• EDID Passback Support - Ensures optimal display compatibility and resolution matching
• Plug-and-Play Installation - Quick setup with minimal configuration required

Specifications

Power Supply

• DC5V 1A

Power Consumption

• TX <3W
• RX <2W

Hdmi Performance And Interface

• HDMI Compliance: HDMI 1.4
• HDCP Compliance: HDCP 2.2
• Supported Audio Formats: PCM, LPCM, Dolby, DTS
• Maximum Transfer Rate: 10.2Gbps
• Input / Output TMDS Signal: 0.7~1.2Vp-p (TMDS)
• Input / Output DDC Signal: 5Vp-p (TTL)
• Input Cable Length Supported: ≤5m (AWG24)
• Output Cable Length Supported: ≤5m (AWG24)

Supported Resolutions

• 800 × 600 @60Hz
• 1024 × 768 @60Hz
• 1280 × 720 @60Hz
• 1280 × 800 @60Hz
• 1280 × 1024 @60Hz
• 1440 × 900 @60Hz
• 1680 × 1050 @60Hz
• 1920 × 1080 @60Hz
• 2560 × 1080 @60Hz
• 3840 × 2160 @30Hz
• 4096 × 2160 @30Hz

Transmission

• Transmission Distance: Up to 100m
• Network Cable: CAT6 / CAT6A / CAT7

Electrostatic Protection

• Contact Discharge Level 3
• Air Discharge Level 3
• Standard: IEC61000-4-2

Operating Environment

• Working Temperature: 0~60°C
• Storage Temperature: -10~70°C
• Humidity: 0~90% RH (Non-Condensing)

Physical

• Dimensions (L × W × H): 132.37 × 89.7 × 24.9mm
• Material: Iron-Alloy and Crystal Panel
• Processing: Powder Coating
• Colour: Black

Shipping Dimensions

• Weight: 0.90 kg
