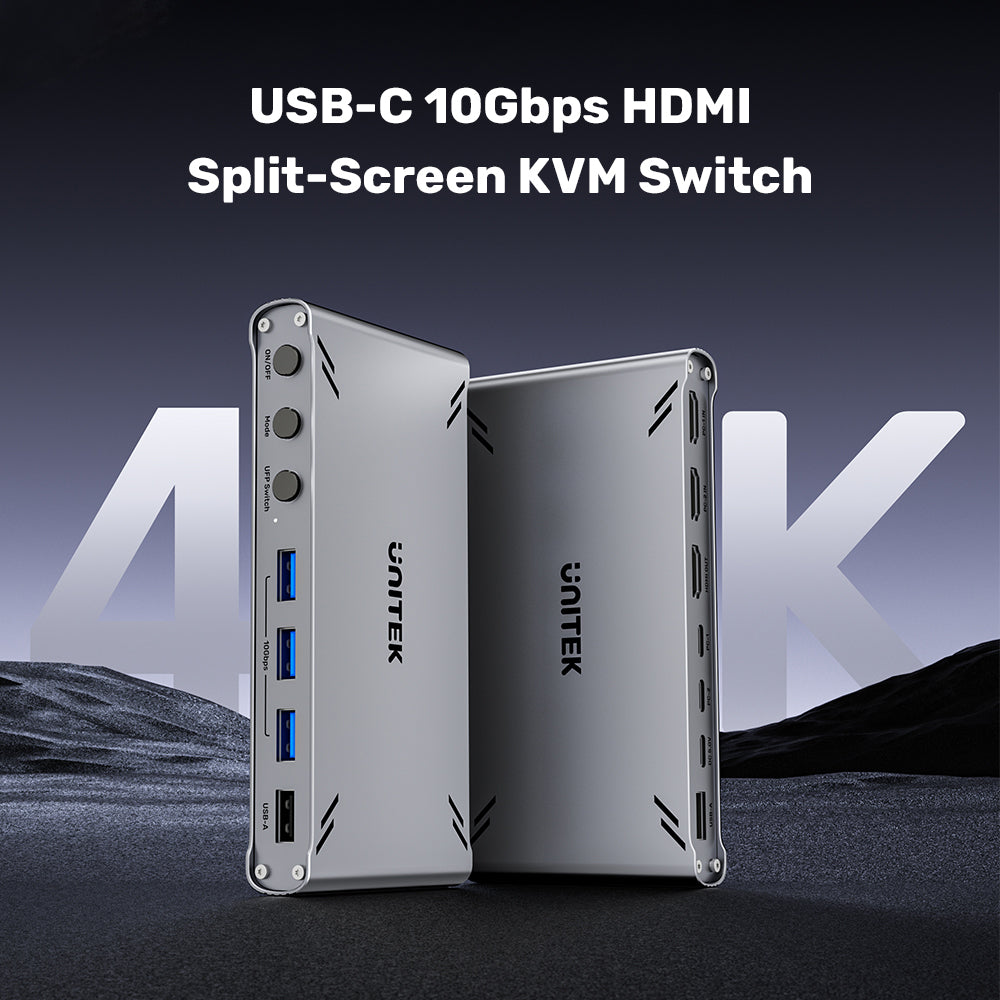

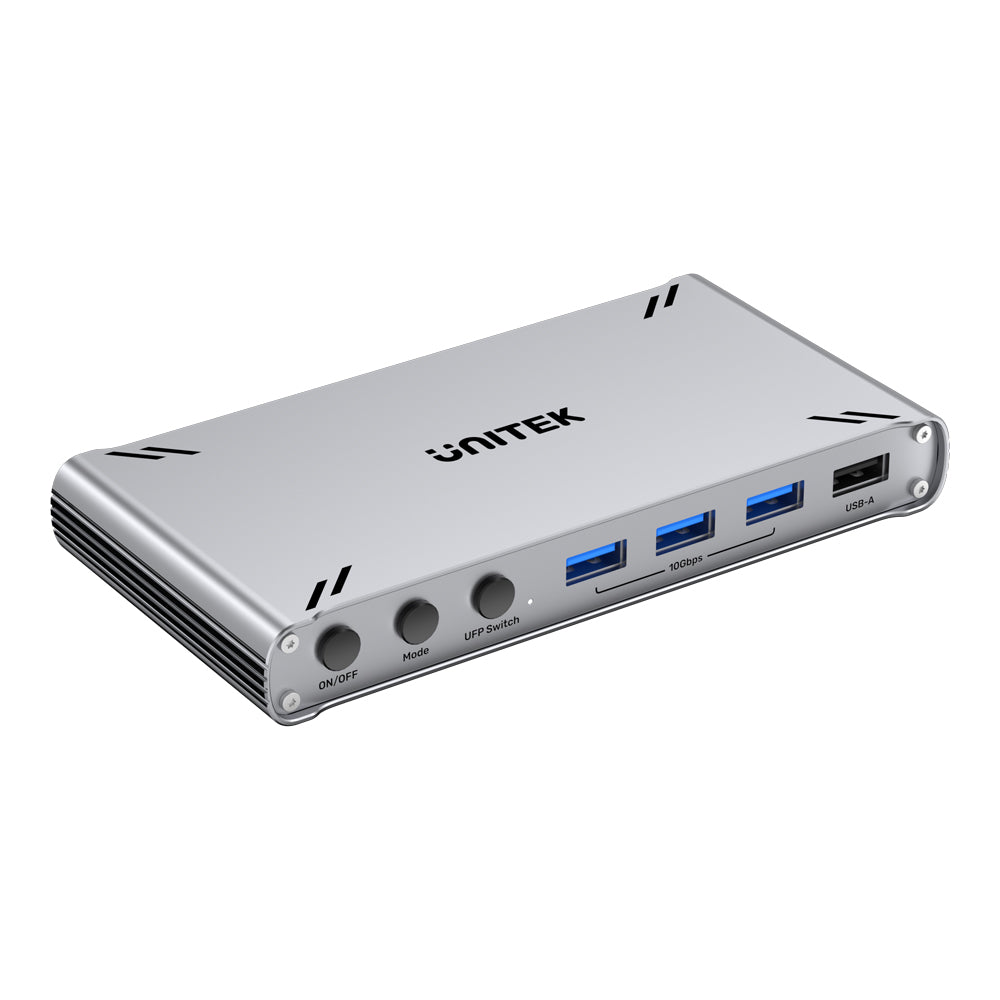

UNITEK D1118A USB Type-C 10Gbps 4K @30Hz HDMI Split-Screen KVM Switch

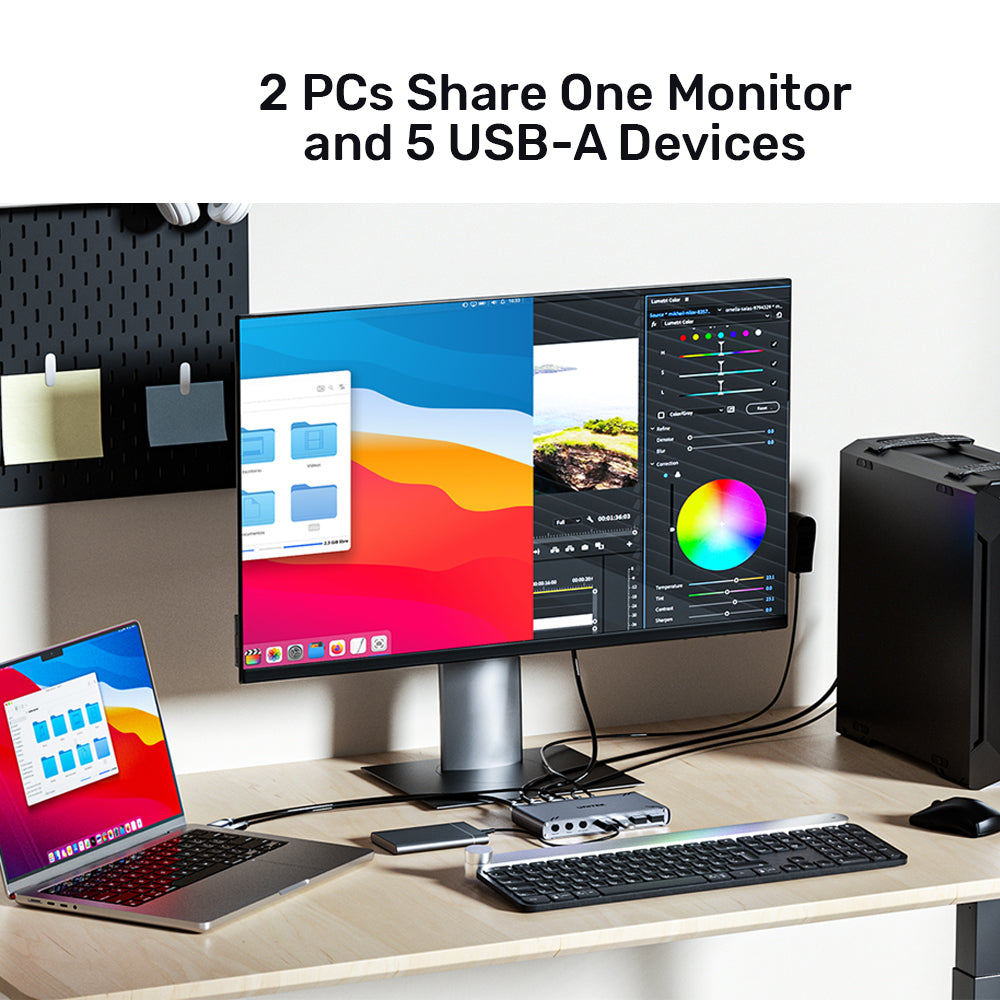

Control Two Computers with One Monitor, Keyboard and Mouse.
The UNITEK D1118A USB Type-C 10Gbps HDMI Split-Screen KVM Switch provides a convenient way to control two computers using a single monitor, keyboard and mouse while sharing USB peripherals. Supporting HDMI output up to 4K @30Hz, it offers multiple display modes including full screen, left and right split-screen, and upper and lower split-screen for improved multitasking. Featuring high-speed 10Gbps USB connectivity, direct data intercopy between hosts and a premium aluminium-alloy housing, it is ideal for content creators, developers, designers and professional workstations.
Features
- Dual Host KVM Control - Share one monitor, keyboard, mouse and USB devices between two computers
- 4K @30Hz HDMI Output - Delivers clear Ultra HD video for professional and everyday use

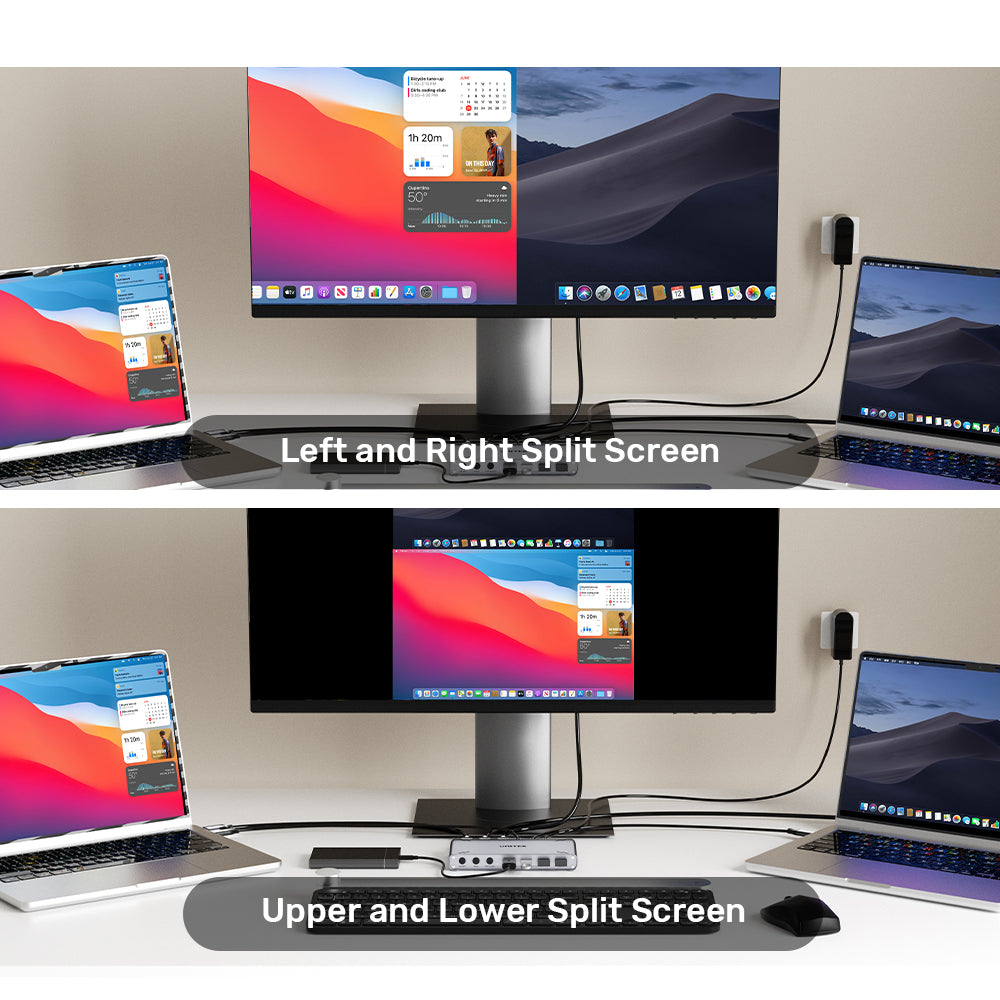

- Split-Screen Display Modes - Supports full screen, left and right, and upper and lower split-screen layouts
- Direct Data Intercopy - Transfer files directly between connected host computers using GLinkApp software
- High-Speed USB Connectivity - Three USB Type-A 10Gbps ports for fast storage and peripheral devices
- Additional USB Ports - Two USB Type-A 480Mbps ports for keyboards, mice and other accessories
- USB Type-C Host Connections - Two USB Type-C 10Gbps upstream ports for connected computers

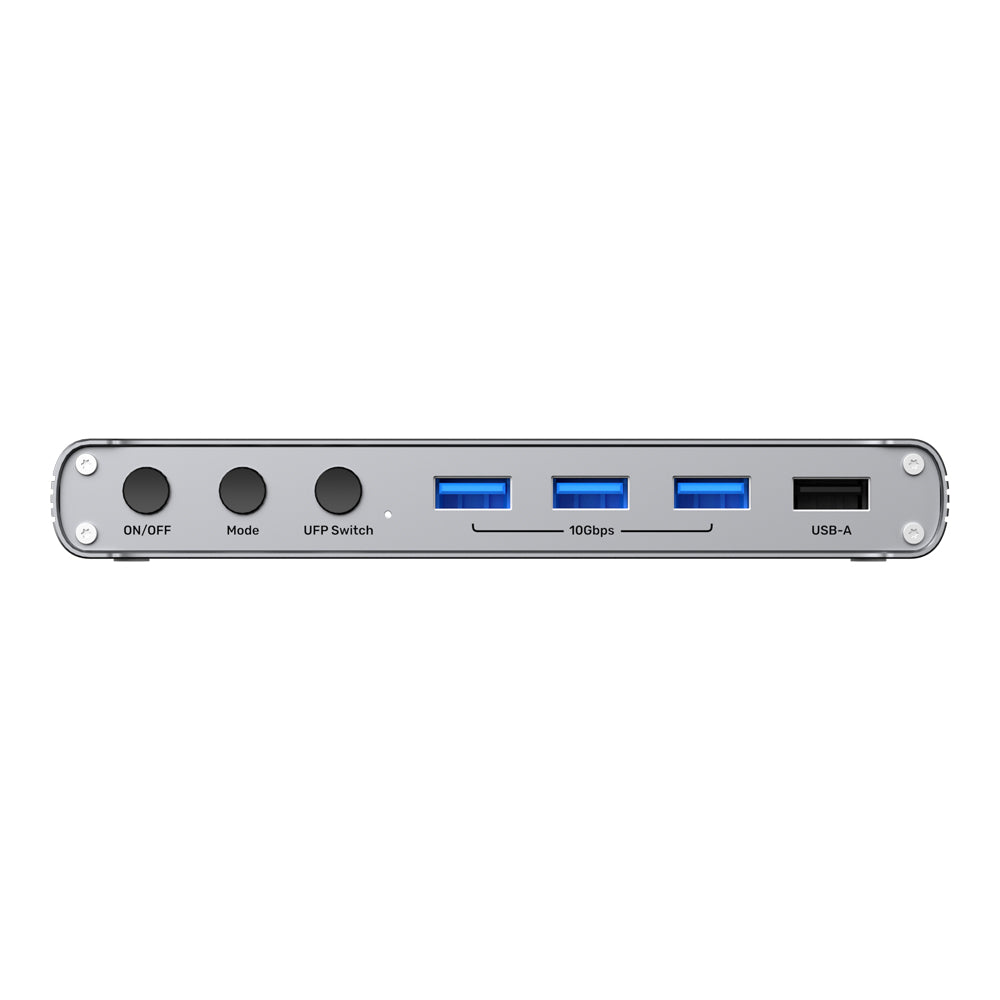

- One-Touch Switching - Quickly switch between connected hosts using dedicated front panel controls
- LED Status Indicators - Clearly displays the active operating mode and selected host
- Premium Aluminium Housing - Durable aluminium-alloy enclosure with efficient heat dissipation
Specifications

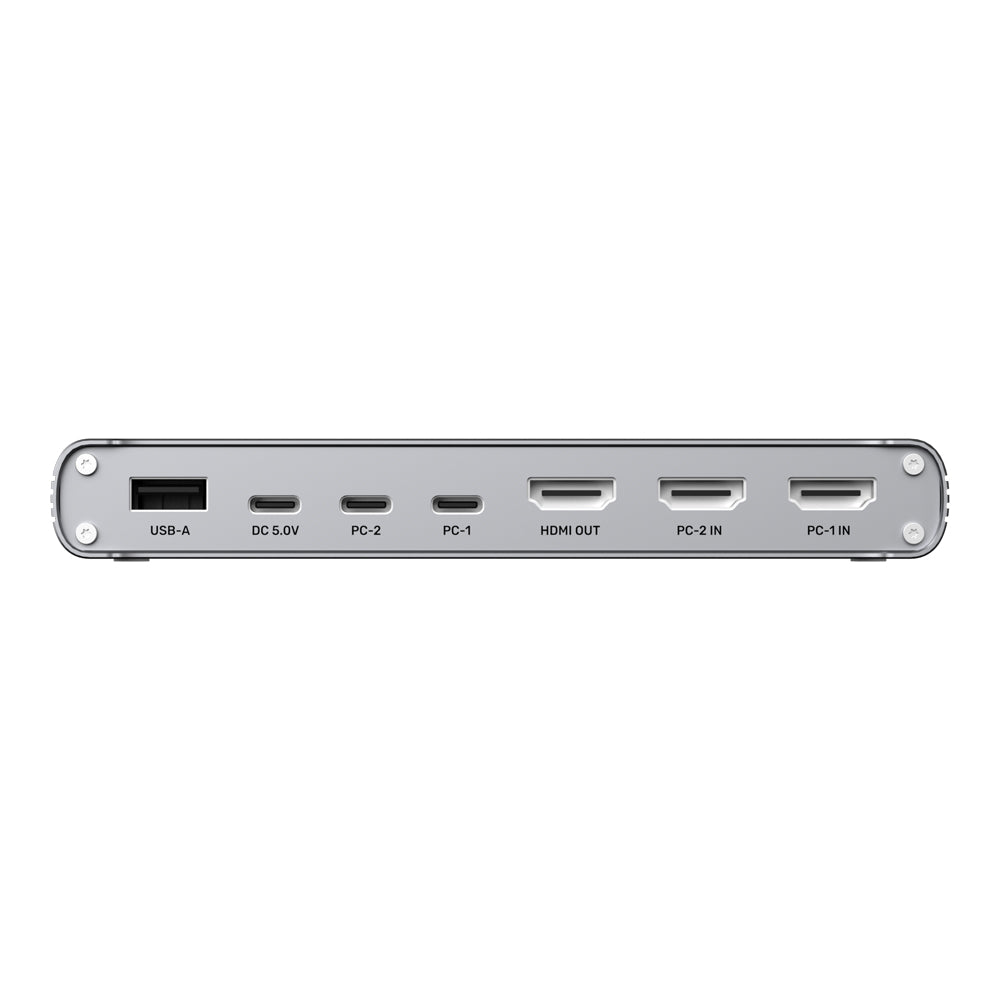

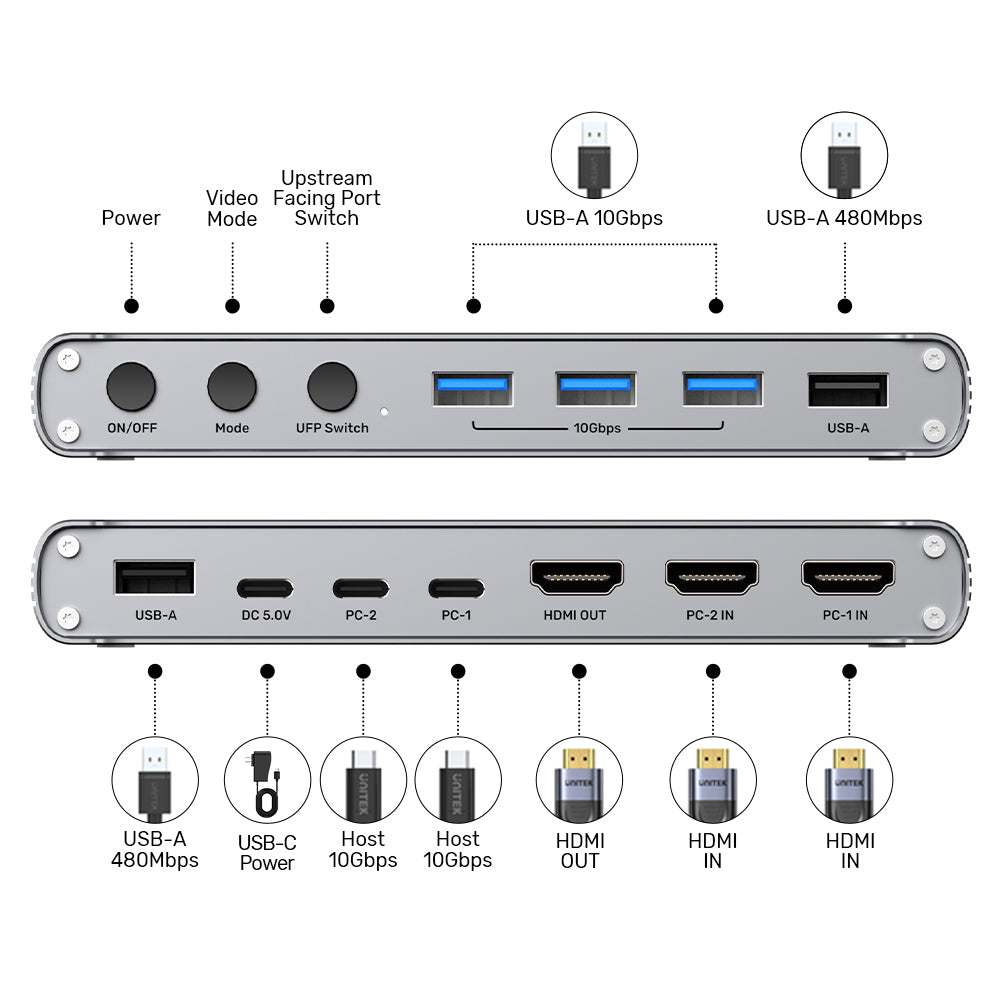

- Host Connections: 2× USB Type-C 10Gbps
- Video Inputs: 2× HDMI
- Video Output: 1× HDMI
- Maximum Resolution: 4K @30Hz
- HDCP Support: HDCP 1.4
- USB Ports: 3× USB Type-A 10Gbps, 2× USB Type-A 480Mbps
- Display Modes: Full Screen, Left and Right Split-Screen, Upper and Lower Split-Screen
- Power Input: USB Type-C DC 5V

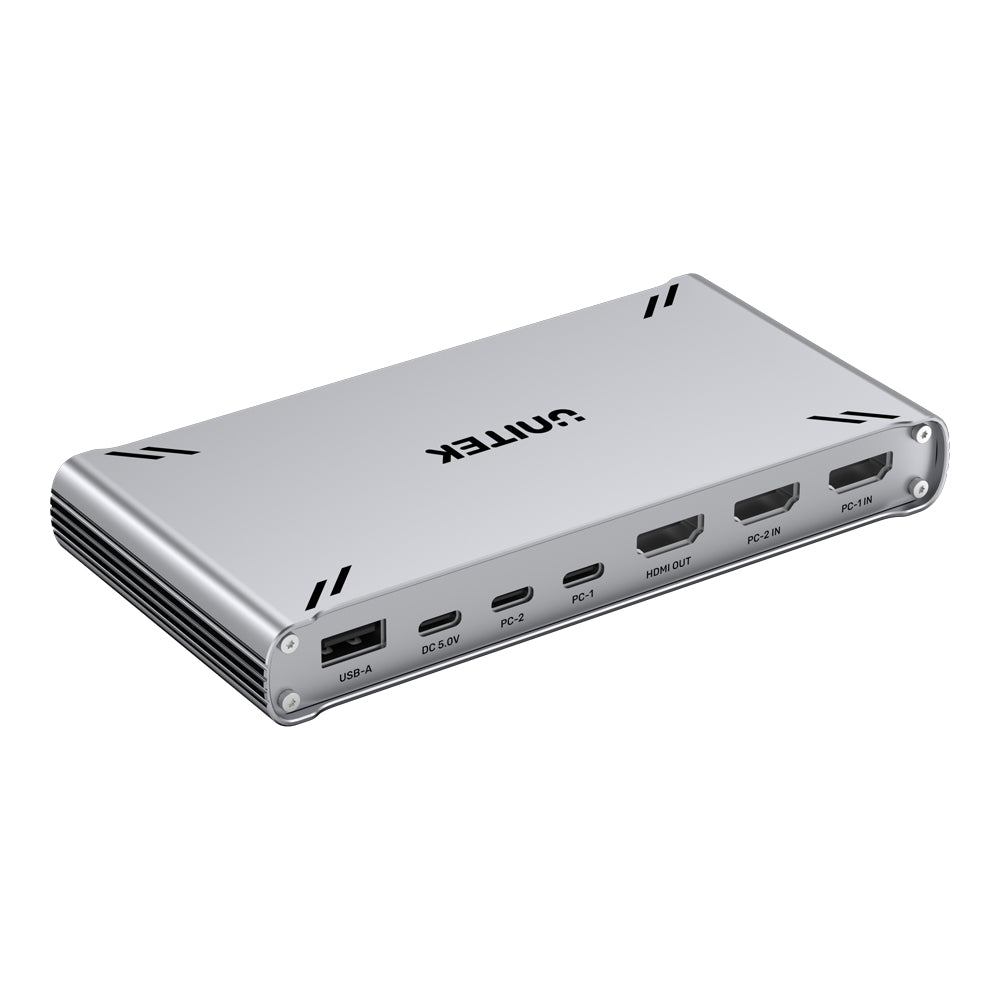

- Housing Material: Aluminium-Alloy
- Colour: Space Grey

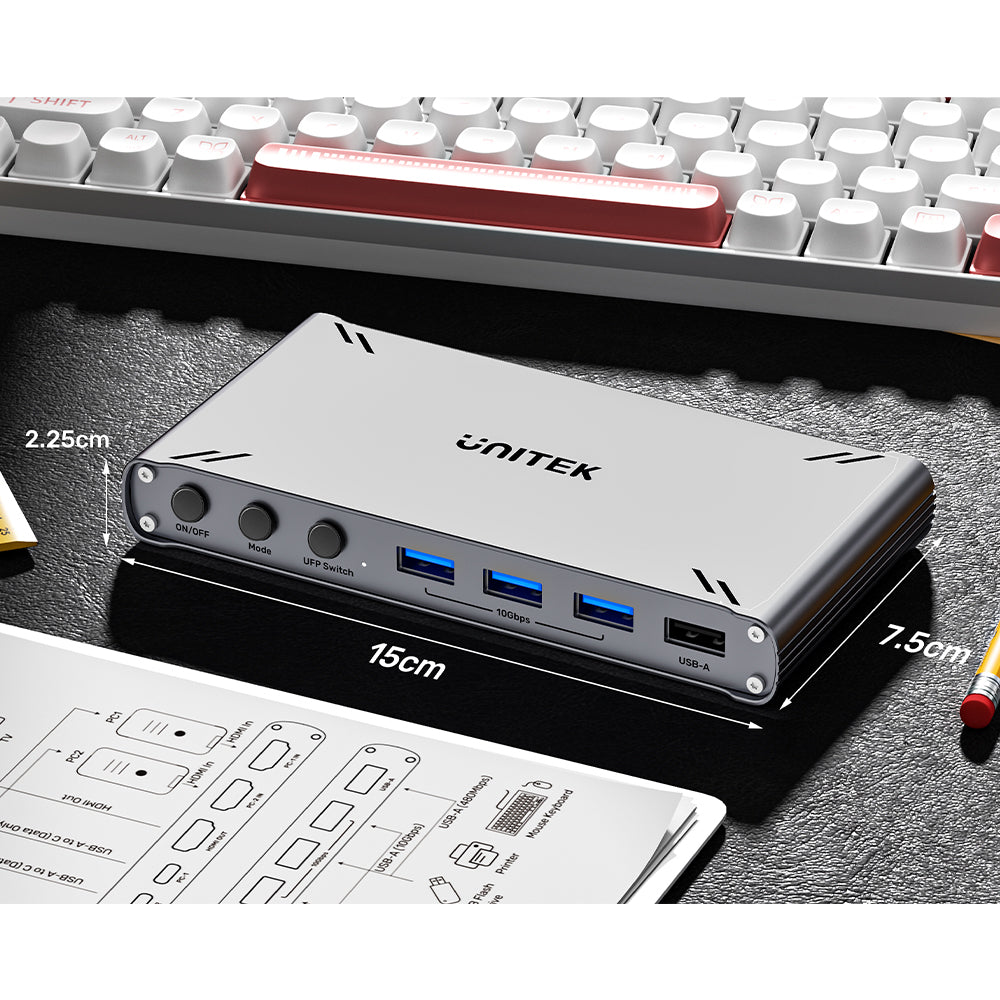

- Dimensions: 150 × 75 × 22.5mm
Notes
- Data Intercopy requires installation of the UNITEK GLinkApp software
- Both host computers should support USB 5Gbps or higher for Data Intercopy functionality
- External USB Type-C power connection (5V) is recommended for stable operation
- Supports Windows 8, 8.1, 10 and 11, and macOS 10.13 or later
- HDMI output supports a maximum resolution of 4K @30Hz
