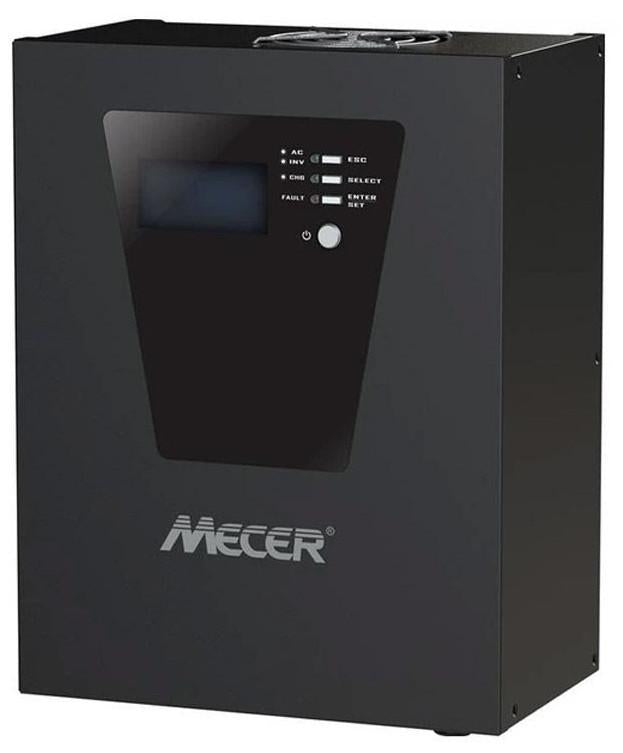

MECER IVR-1200MPPT 1200VA 1000W SOLAR INVERTER
Inverter Specifications:
Input:
- Capacity: 1200VA / 1000W
- Input Voltage: 220-240 VAC
- Input voltage range: 90-280 VAC
- Nominal Operating Frequency: 50/60Hz
- Maximum Input Current: 10A
Output:
- Waveform: Simulated sinewave inverter
- Transfer time: 20ms typical
- Nominal Output Voltage: 220 - 240 VAC
- Voltage regulation (Batt. mode): +/-10%
- Output Frequency Range: 50/60Hz
- Nominal Output Current: 5.2A
- Inrush Current: 10A
- Maximum Output Fault Current: 6.9A
Solar Charger:
- Solar Charger Type: MPPT
- Maximum PV Array Open Circuit Voltage: 100 VDC
- MPP Range @ Operating Voltage: 15 ~ 80 VDC
- Max. PV Array Input Power: 825W
- Max PV Array Power to support: 660W
- Max Solar Charging Current: 55 A
- Max Charging Current (Utility + SCC): 55 A
Battery:
- Battery Voltage: 12 VDC
- Max Battery Discharge Current: 100A
- Floating Charge Voltage: 13.7 VCD 0.5 VDC
- CV Charging Voltage: 14.6 VDC 0.5 VDC
- Cut Off Voltage: 10.5 VDC 0.5 VDC
- Maximum AC Charge Current: 10A or 25A
Physical:
- Dimensions (DxWxH) mm: 272 x 212 x 127
- Net Weight (kgs): 4.5
- Protective Class: I
- Ingress Protection Rating: IP20
