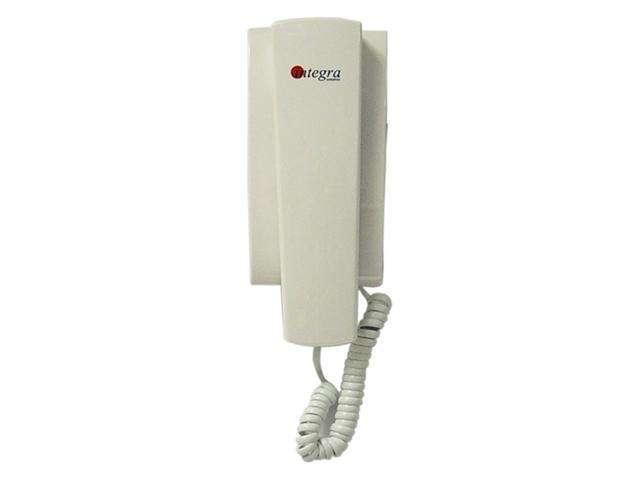

2 of these Audio Phone Slave units can be added to INTEGRA KIT 1AP-1/3ASU. The Audio Phone can have a total of 3 Indoor Handsets and one Outdoor Doorstation.
- Indoor :
- Power Supply : 119~240ACV 50/60HZ automatic
- Volume of buzzer : 80dB ±2 @ 1m
- Room Temperature : -10~+60°C
- Humidity : 10%~90% no condensing
- Dimension : 188x82x56mm
- Power Consumption : 5W
- Cabling :
- Before installing the product, check the distance between indoor and outdoor and choose the most suitable cable for your installation according to the specification below:
- 0.4mm2 mm2 up to 30m
- 0.5mm2 up to 50m
- 0.75mm2 up to 100m
- 1.5mm2 up to 200m
- To install the lock, always use 1.5mm2 cable for distances up to 50m
- To connect the outdoor station to the indoor phone, use 1.52 cable
