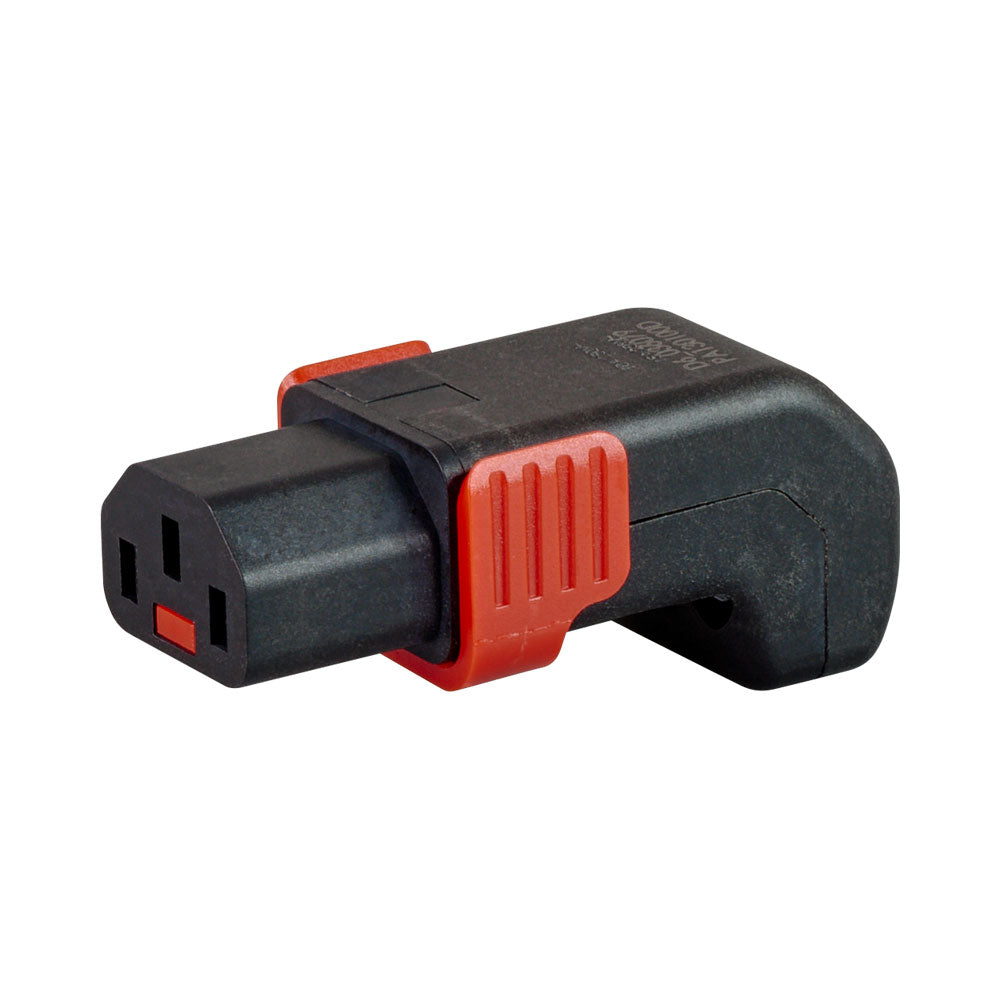

Description
Features
- Lockable IEC C13 Connector - Prevents accidental power loss
- Angled-Down Design - Perfect for tight rack and cabinet installations
- Rewireable Construction - Easy cable termination and maintenance
- Anti-Vibration Locking Mechanism - Stays connected in high-movement environments
- Easy-Grip Release Tab - Quick, safe disconnection when needed
- Dual-Screw Housing Design - Slotted and cross-head screws allow easy installation with common tools
- Cold-Condition Rated Appliance Inlet - Designed for reliable performance in low-temperature environments
Specifications
Electrical Ratings
- Rated Current and Voltage: 10A Max. @250V
- Dielectric Strength: 1.5kV Max.
- Withdrawal Force: >100N
Materials
- Outer Body and Chassis: Nylon (PA66), LSZH, RAL9004 Signal Black
- Cable Restraint: Nylon (PA66)
- Housing Screws and Cable Restraint Screws: Steel, Nickel Plated
- Lock Pivot Lever: Polycarbonate
- Red Handle: Polycarbonate LSZH, RAL3020 Traffic Light Red
- Terminal Block and Sliding Terminal: Brass
- Terminal Screws: Steel, Yellow Passivated
- Spring and Locking Blade: Spring Steel (Locking Blade Zinc Plated)
Terminal and Mechanical
- Terminal Capacity: 3-Core Cable, 1.5mm² Typical (up to 2.5mm² Max.)
- Torque Values: Terminal Screws: 0.4Nm, Strain Relief Clamping Screws: 0.3Nm
- Flammability Rating: Equivalent to UL94V-0
- Protection Class: Suitable for Class I Appliances, Complies with IEC EN 61140
Environmental
- Ambient Operating Temperature: 25°C
- Cold Condition Use: Suitable for Cold Environments
Physical Dimensions
- Overall Length: 46.9mm
- Body Width: 30.1mm
- Body Height: 28.8mm
- Connector Face Width: 22.7mm
- Cable Entry Length: 15.4mm
- Pin Section Length: 21.1mm
Standards and Compliance
- EN 60320-1:2015 (KEMA-KEUR File: 35-102059)
- UL 60320-1 (UL File E475619)
- CSA C22.2 No. 60320-1-11
- AS/NZS 60320.1 (SAA File 151920)
Shipping Dimensions
- Weight: 0.10 kg
