UNITEK D1113B 11-in-1 USB Type-C Port Replicator with Dual Display and 100W PD
One Compact Hub for Displays, Data, Charging and Connectivity.
The UNITEK D1113B uHUB U11+ 11-in-1 USB Type-C Port Replicator expands a USB Type-C laptop or tablet into a practical workstation. It combines HDMI and VGA display output, 100W USB Type-C Power Delivery, Gigabit Ethernet, USB data ports, SD and microSD card readers and a 3.5mm audio/mic jack in a slim aluminium design. With plug-and-play setup and broad Windows and macOS compatibility, it is ideal for office desks, hybrid work, presentations and everyday productivity.
Features
- 11-in-1 Expansion - Adds display, network, USB, card reader, charging and audio connectivity from one USB Type-C port
- Dual Display Output - Supports HDMI and VGA output for flexible multi-screen setups
- 4K HDMI Output - Supports single HDMI display output up to 4K @30Hz
- Full HD VGA Output - Supports single VGA display output up to 1080p @60Hz

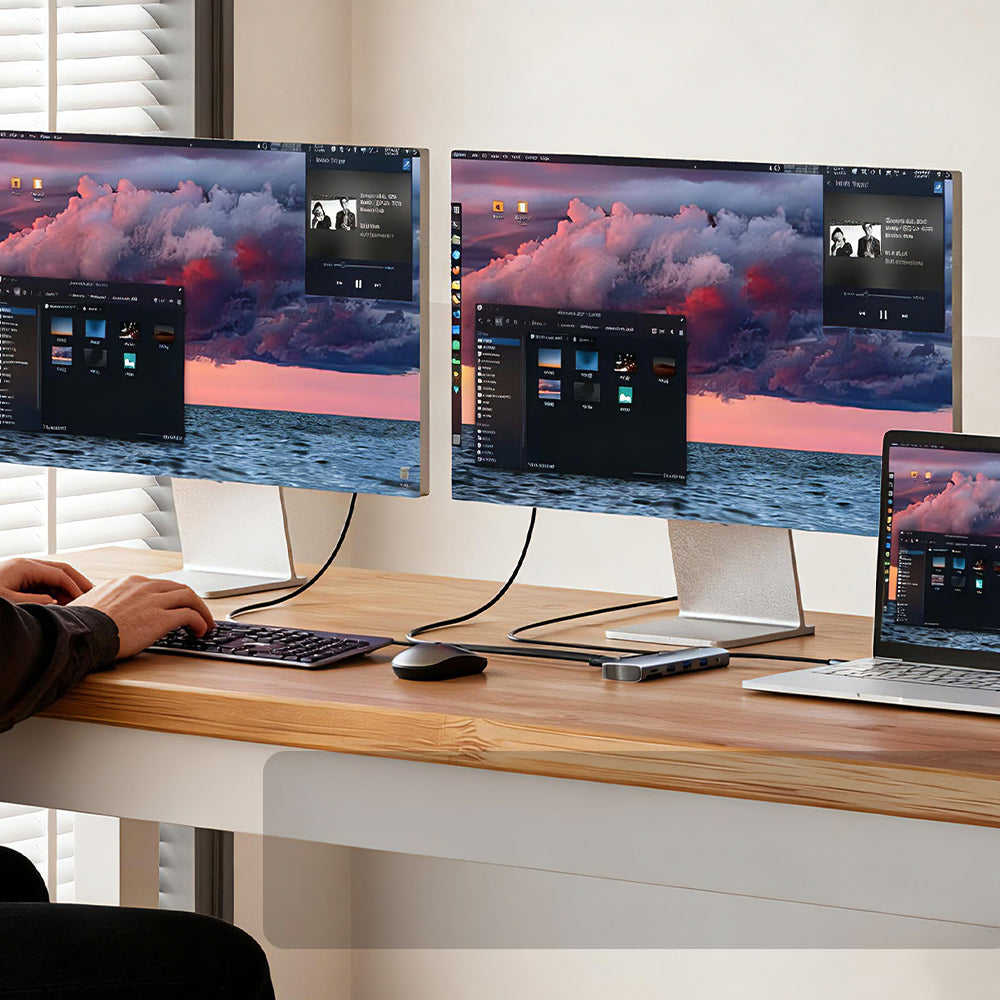

- Dual Monitor Mode - Supports HDMI and VGA together at up to 1080p @60Hz in SST mode
- 100W USB Type-C PD Charging - Powers compatible laptops while the hub remains connected
- Fast USB Data Transfer - Includes 3× USB Type-A 5Gbps ports for flash drives, peripherals and storage
- USB Type-A Charging - Supports charging up to 5V 1.5A from a single USB Type-A port
- Gigabit Ethernet - Provides stable wired network speeds up to 1000Mbps
- Dual Card Reader - Supports SD and microSD cards up to 2TB with single-card reading
- Audio and Mic Support - Includes a 3.5mm audio/microphone jack for headsets and speakers

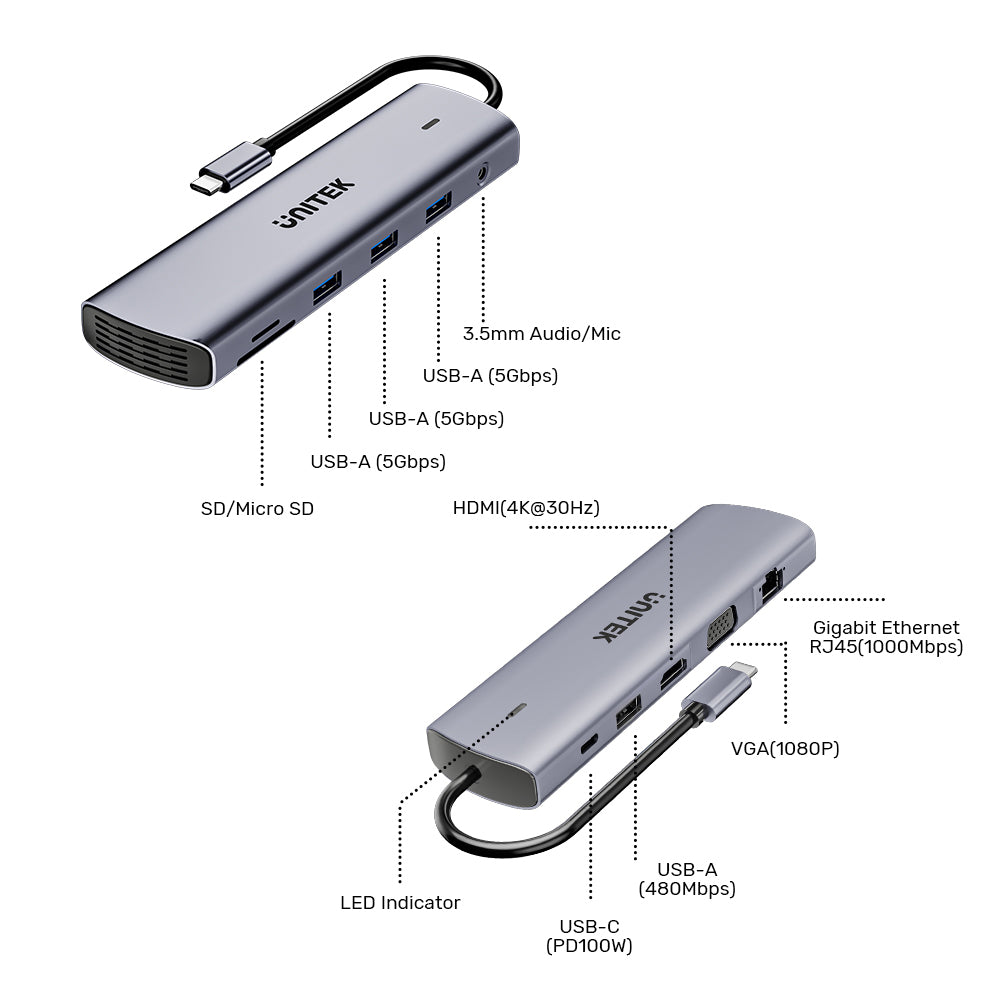

Specifications
- Upstream: 1× USB Type-C Connector, 5Gbps
- Downstream USB Ports: 3× USB Type-A 5Gbps, 1× USB Type-A 480Mbps
- Video Output: 1× HDMI, 1× VGA
- HDMI Output: Up to 4K @30Hz
- VGA Output: Up to 1080p @60Hz
- Dual Display Output: Up to 1080p @60Hz via HDMI and VGA
- Power Delivery: 1× USB Type-C PD 100W, 20V 5A
- Network Port: RJ45 Gigabit Ethernet, up to 1000Mbps
- Card Reader: SD and microSD, supports up to 2TB
- Audio Port: 3.5mm Audio/Mic Jack
- Cable Length: 20cm
- Dimensions: 159.76 × 44.18 × 17.12mm
- Material: Aluminium-Alloy
- Colour: Space Grey
- System Compatibility: Windows 10/11 and macOS 10.6 or later
Notes
- USB Type-C PD charging requires a compatible USB Power Delivery or Thunderbolt 3 host device
- HDMI and VGA output require DisplayPort Alternate Mode or Thunderbolt 3 support from the host device
- Dual display output supports SST mode only
