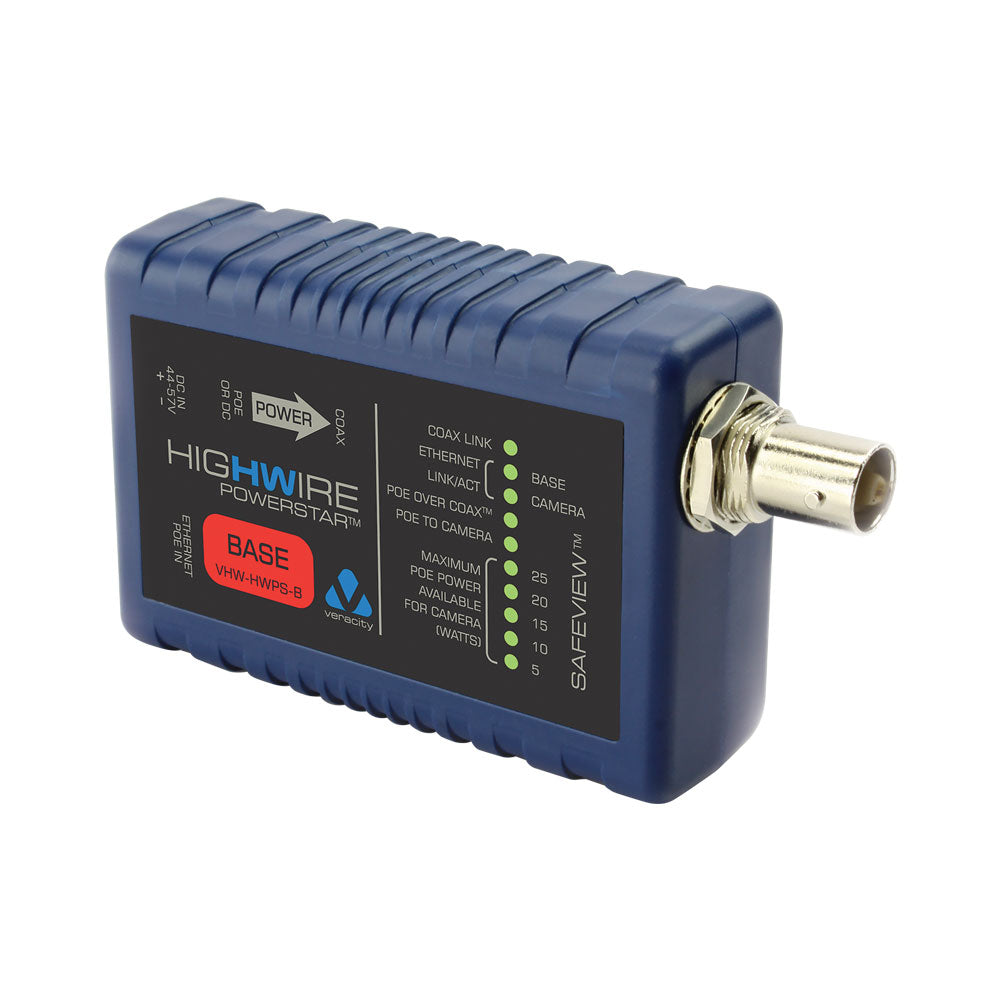

HIGHWIRE POWERSTAR BASE UNIT

Features

• Ethernet and PoE over Coax - Transmits IP data and Power over Ethernet across existing coaxial cabling
• Ideal for CCTV Upgrades - Enables easy migration from analogue CCTV systems to IP cameras without replacing cable infrastructure
• Long-Range Transmission - Supports extended network distances over RG59, RG6 or similar coax cables
• Integrated PoE Power - Provides power to connected IP cameras through the coax link
• Fast and Reliable Networking - Delivers stable Ethernet connectivity for professional surveillance deployments
• Simple Installation - Compact plug-and-play design makes installation quick and straightforward

Specifications

Power

• Unit Power: 1.5W
• BASE PoE In: IEEE 802.3af (PoE) or IEEE 802.3at (PoE+), 2-event, Power Class 4
• CAMERA PoE Out: IEEE 802.3af (PoE) or IEEE 802.3at (PoE+)
• DC Power Input: 40–57VDC, 0.7A Max, Class 2 Isolated, Detachable Screw Terminal

Highwire Interface

• Connector Type: BNC 75 Ohm
• Cable Type: Any 75 Ohm Coaxial (Other Impedances Supported)
• Range: Up to 300m on RG59 or 500m on RG11 at Full Rate
• Bandwidth: 200Mbps (Total Up and Down)

Ethernet Interface

• Connector Type: RJ45
• Cable Type: Patch or Crossover, Auto-Detected
• Rate: 100Base-TX Full-Duplex with Auto-Negotiation

Led Indicators

• HIGHWIRE Coax Link
• Ethernet Link/Activity (BASE)
• Ethernet Link/Activity (CAMERA)
• PoE-Over-Coax
• PoE to Camera
• Power Available (5/10/15/20/25W)
• Colours: Off – Disabled, Green – Enabled, Red – Fault

Physical / Environmental

• Dimensions: 104 × 54 × 24mm (84mm Excluding Connector)
• Weight: 90g
• Operating Temperature: -10°C to 50°C (PoE <15W)
• Operating Temperature: -10°C to 40°C (PoE+ >15W)
• Relative Humidity: Up to 85% Non-Condensing
• Compliance: FCC, CE, RoHS, UKCA, UL

Shipping Dimensions

• Weight: 0.10 kg
