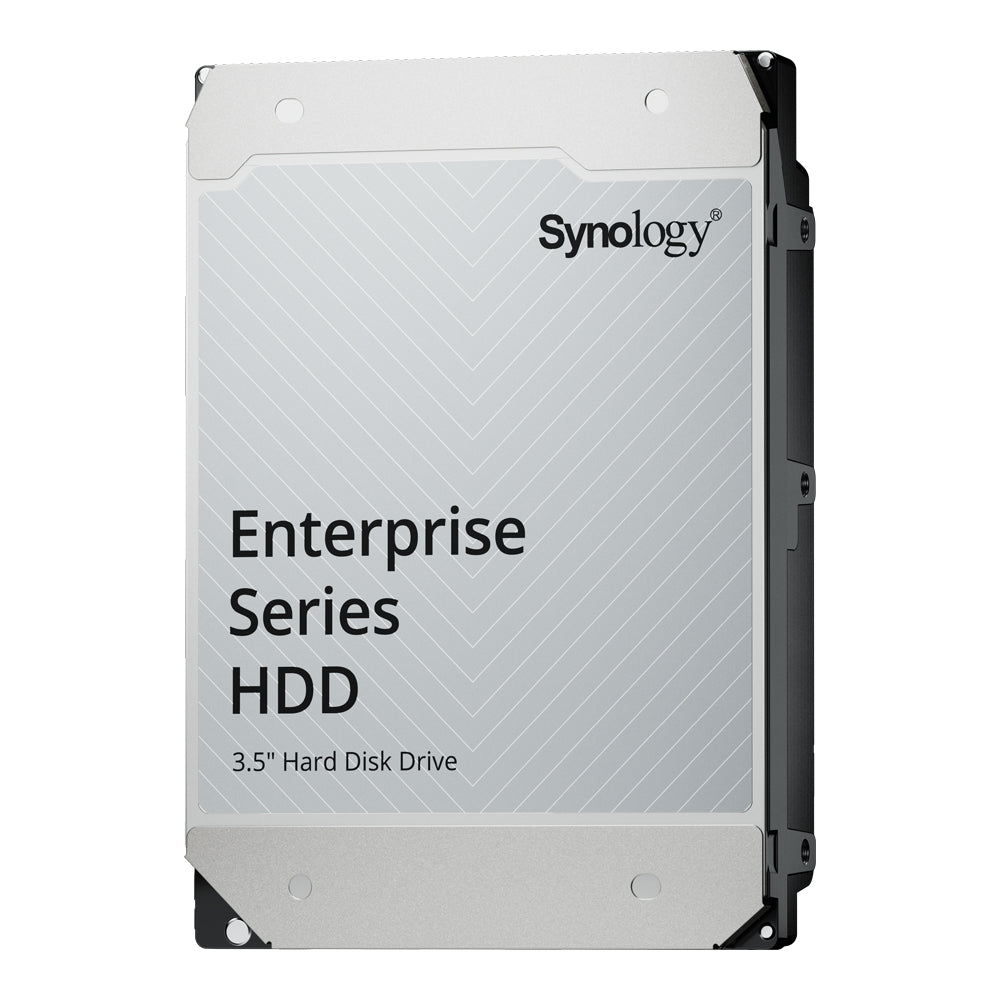

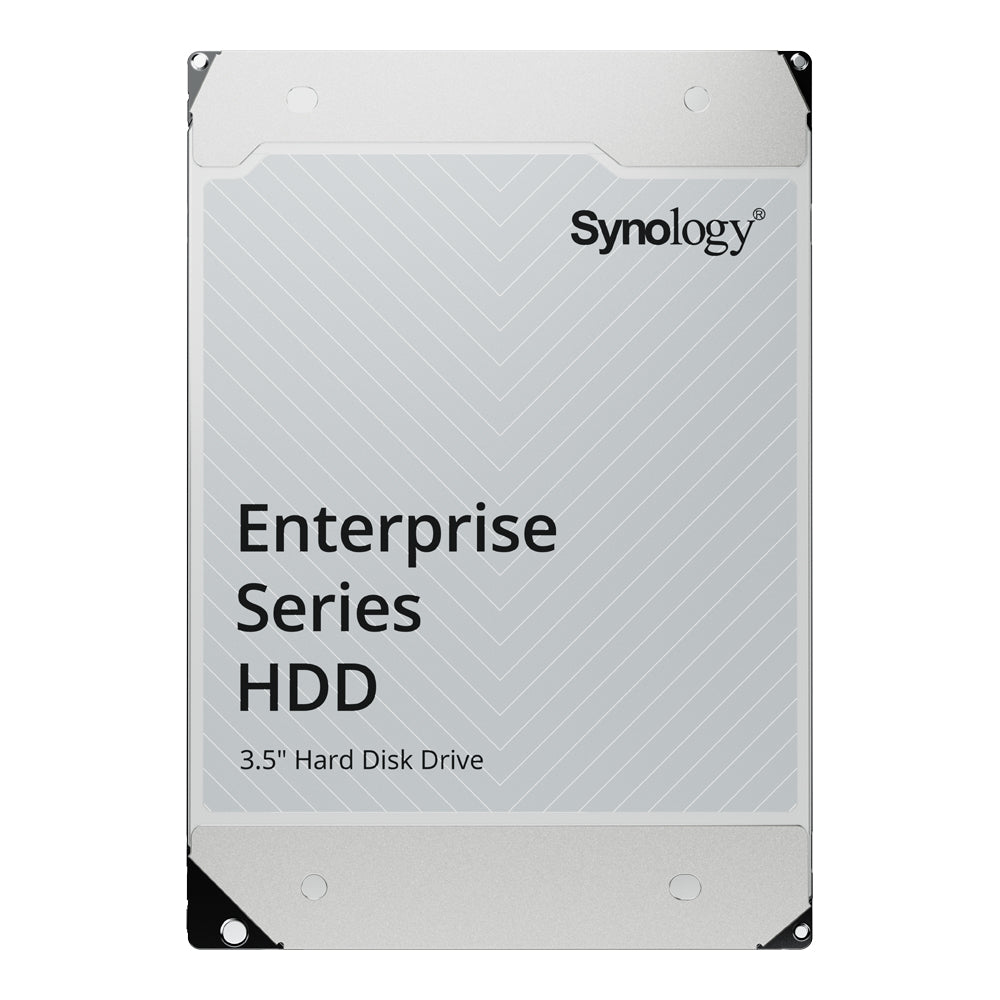

Synology HAT5310 20TB 3.5" Enterprise Series SATA Hard Drive for Synology Systems
Built for Demanding Workloads and High-Capacity Arrays
Synology HAT5300 Series HDDs are engineered for demanding, high-volume workloads, delivering up to 35% greater multi-client sequential read performance compared to third-party drives. Built for unwavering reliability, these CMR-based drives have undergone over 500,000 hours of rigorous validation and are backed by a 5-year Synology limited warranty.
Features
- Enterprise Reliability and Durability - For demanding 24/7 environments, rated for up to 2.5 million hours MTTF and up to 550TB per year workloads
- Persistent Write Cache Technology - Minimises the chance of data corruption in the event of sudden power loss
- Better Together - Firmware and DiskStation Manager (DSM) optimisations improve multi-client sequential read performance by up to 35%
- One-Stop Update - Get automatic firmware updates together through DSM updates, reducing the need for additional maintenance sessions
- For Synology, by Synology - Stringent validation and up to 500,000 hours of tests ensures maximum reliability in Synology systems
Specifications
- Capacity: 20TB
- Form Factor: 3.5"
- Interface: SATA
- Sector Size: 512e
- Drive Design: Helium-Sealed
- Rotational Speed: 7,200rpm
- Interface Speed: up to 6.0Gb/s
- Cache: 512MB
- Maximum Sustained Data Transfer Speed: Up to 281MB/s
- Mean Time Between Failures (MTBF): 2,500,000 hours
- Workload Rating: 550TB/year
- Supply Voltage: 12V ±10% / 5V +10/-7%
- Idle Power (Average): 4.38W
- Average Operating Power: 8.11W
- Operating Temperature: 5~60°C (No Condensation)
- Non-Operating Temperature: -40~70°C
- Operating Humidity: 5~90% RH (No Condensation)
- Non-Operating Humidity: 5~95% RH (No Condensation)
- Dimensions (H × W × D): 26.1 × 101.85 × 147mm
- Weight: 720g
- Certifications: CE, RCM, BSMI, KC, UL, TUV, ICES, UKCA, RoHS, Morocco Mark
