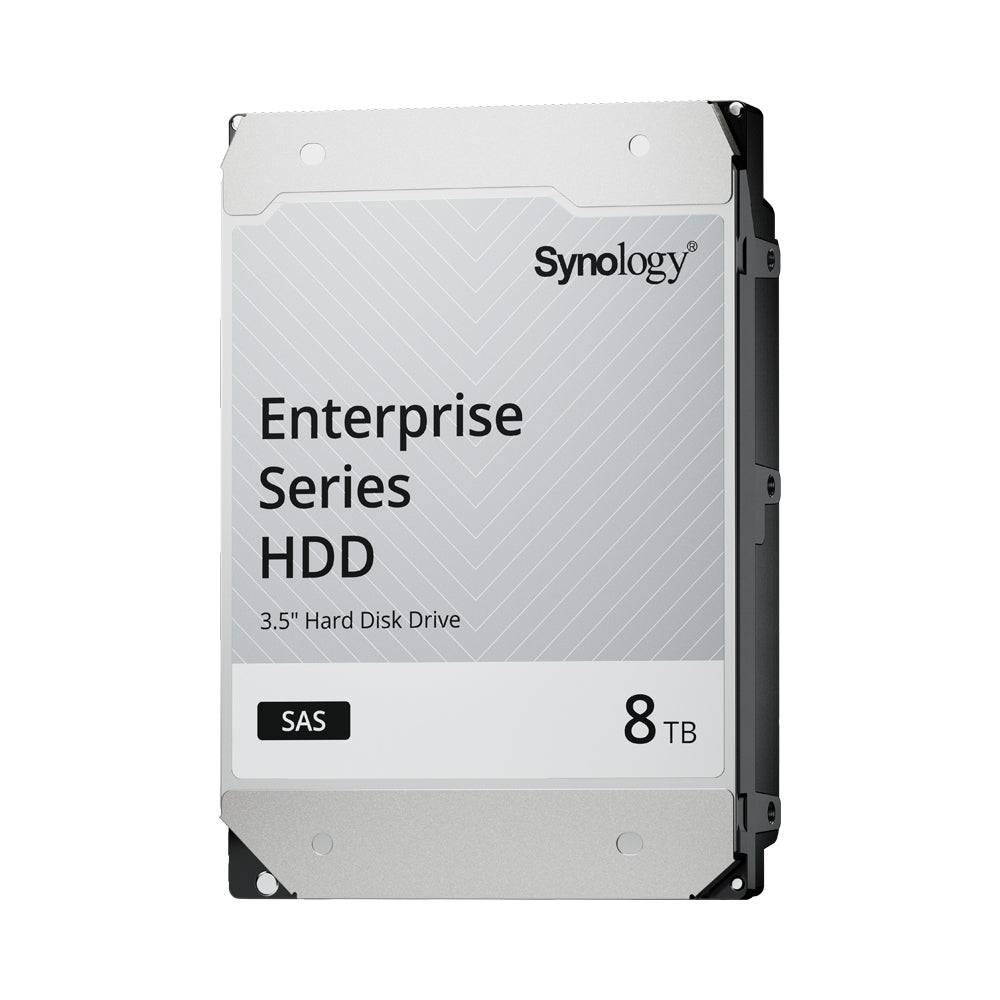

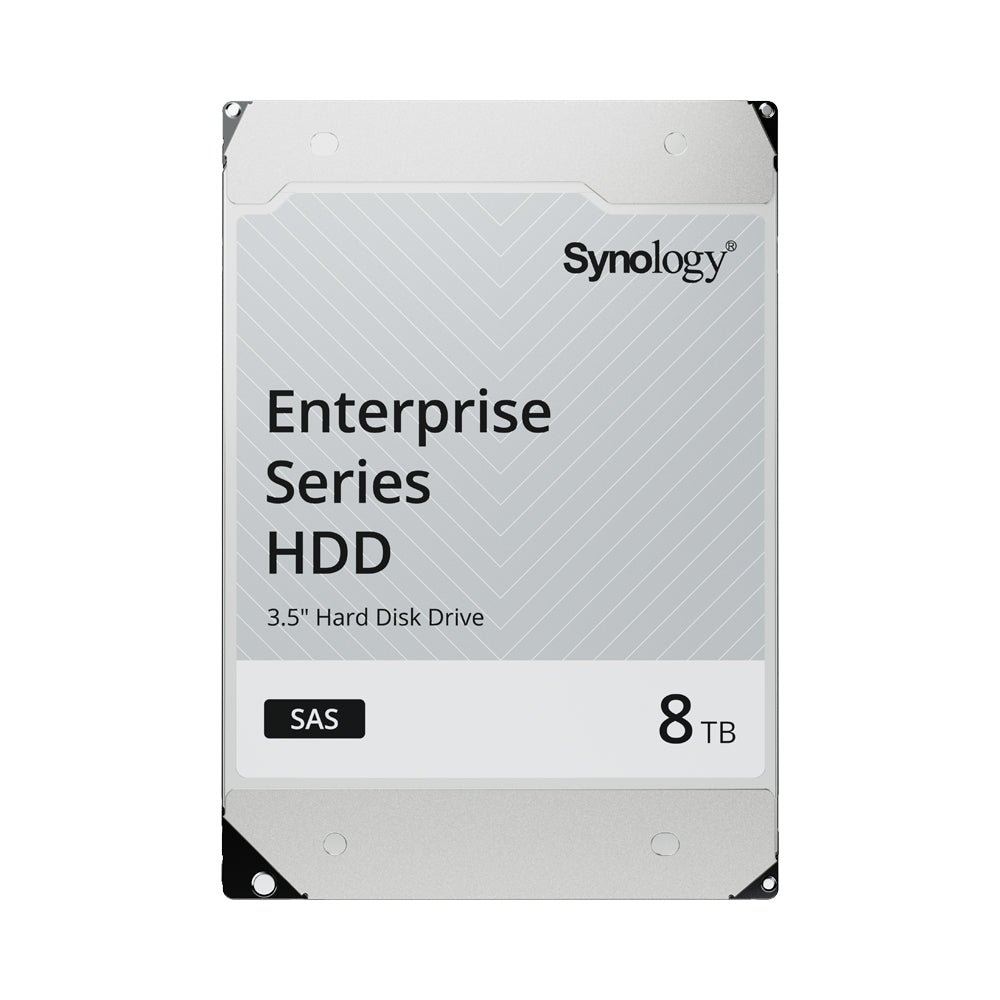

Synology HAS5300 8TB 3.5" Enterprise-Grade SAS Hard Drives for Synology Systems
Engineered for Demanding Workloads in Enterprise Environments
Synology HAS5300 is designed to meet the capacity, efficiency and reliability needs of modern enterprise deployments. Built to handle workloads up to 550TB per year, it empowers host systems to serve large pools of concurrent clients. With a 2.5 million hour MTTF and backed by Synology's 5-year limited warranty, HAS5300 meets the highest standards of dependability.
Features
- Enterprise Reliability and Durability - For demanding 24/7 environments, rated for 2.5 million hour MTTF and up to 550TB per year workloads
- Designed for Synology Enterprise Systems - Over 200,000 hours of stringent validation tests ensure maximum dependability on Synology SA and UC series solutions
- Persistent Write Cache - Minimises the chance of data corruption in the event of sudden power loss
- Faster Array Rebuild - Up to 27% faster RAID array repair with firmware fine-tuned and optimised for performance
- Automatic Firmware Updates - Firmware updates through DSM simplify maintenance
Specifications
- Capacity: 8 TB
- Form Factor: 3.5-inch
- Interface: SAS 12 Gb/s
- Sector Size: 512e
- Rotational Speed: 7,200 rpm
- Buffer Size: 256 MiB
- Maximum Sustained Data Transfer Speed (Typical): ~230 MiB/s
- Mean Time to Failure (MTTF): 2.5 million hours
- Workload Rating: 550 TB transferred per year
- Warranty: 5 years
- Supply Voltage: 12 V (± 10%) / 5 V (+10/-7%)
- Active Idle Power (Typical): ~6.62 W
- Random Read/Write Power (4 KB Q1 Typical): ~9.87 W
- Operating Temperature: 5 °C to 60 °C
- Non-Operating Temperature: -40 °C to 70 °C
- Operating Shock: 686 m/s² (70 G, 2 ms)
- Non-Operating Shock: 2,450 m/s² (250 G, 2 ms)
- Operating Vibration: 7.35 m/s² (0.75 G) @ 5-300 Hz; 2.45 m/s² (0.25 G) @ 300-500 Hz
- Non-Operating Vibration: 29.4 m/s² (3.0 G) @ 5-500 Hz
- Operating Altitude: -305 m to 3,048 m
- Non-Operating Altitude: -305 m to 12,192 m
- Relative Humidity (Operating): 5 % to 90 % R.H. (no condensation)
- Relative Humidity (Non-Operating): 5 % to 95 % R.H. (no condensation)
- Dimensions (Height × Width × Depth): 26.1 × 101.85 × 147 mm
- Weight: 770 g
- Certifications: CE, EAC, BSMI, RCM, KC, ICES, UKCA, TUV, UL, RoHS
