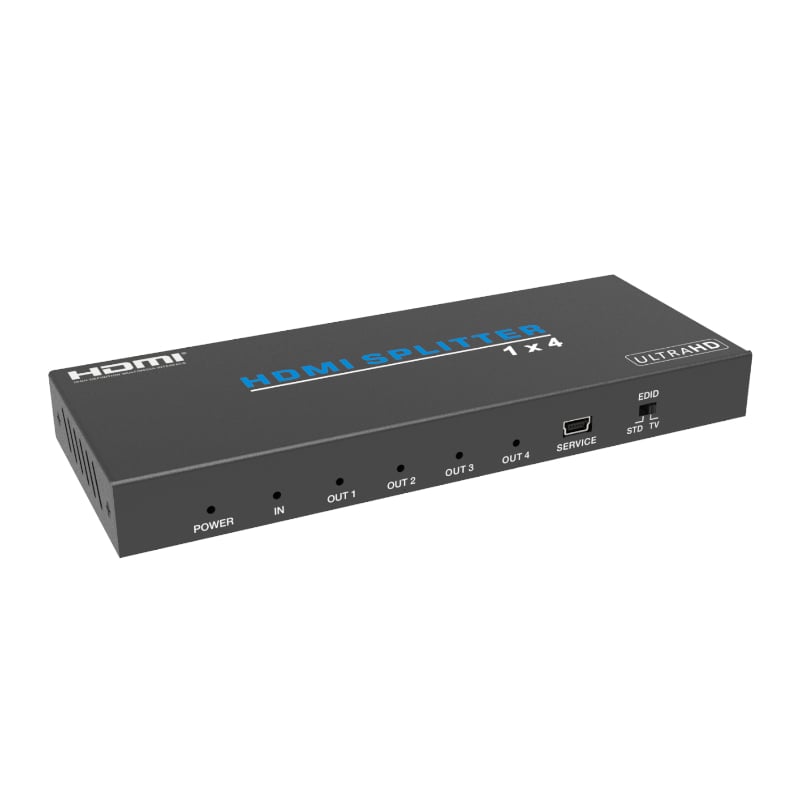

The HDCVT 1x4 HDMI 2.0 18Gbps Splitter is an advanced solution for splitting a single HDMI source to 4 x HDMI displays. It provides high-performance audio and video up to 4K2K@60Hz (4:4:4) and is capable of receiving, retiming and transmitting up to 18Gbps of bandwidth with no data loss. (Supporting the latest features you can be assured of reliable and high-quality HDMI distribution.)
FEATURES:
- HDMI 2.0b, HDCP 2.2 Compliant
- Support video format up to 4K2K@60Hz with 8 bit RGB/YCBCR 4:4:4/YCBCR 4:2:2
- Supports 3D frame sequential video format up to 1080p@60
- Supports 3D frame sequential video format up to 4K2K@30Hz
- Supports high-resolution VESA mode video format up to QSXGA@60Hz
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Supports smart EDID control
- Compact design for an easy and flexible installation
SPECIFICATIONS:
- Chassis Material: Metal
- Silkscreen Colour: Black
- Power Consumption: 2W
- Power Supply Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
- Video Bandwidth: 600MHz/18Gbps
- Input Port: 1x HDMI Type A (19-pin female)
- Output Ports: 4x HDMI Type A
- Video Resolution: 480i~1080p@50/60Hz, 4K2K@24/25/30/60Hz
- ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -20°C ~ 60°C
- Relative Humidity: 20~90% RH (non-condensing)
- Product Dimensions: 6.3 x 16.3 x 1.6 cm
- Product Weight: 260g
WHAT'S IN THE BOX:
- HDCVT 1x4 HDMI 2.0 18Gbps Splitter - Black x1
- 5V/1A Power Adapter x1
- User Manual x1
