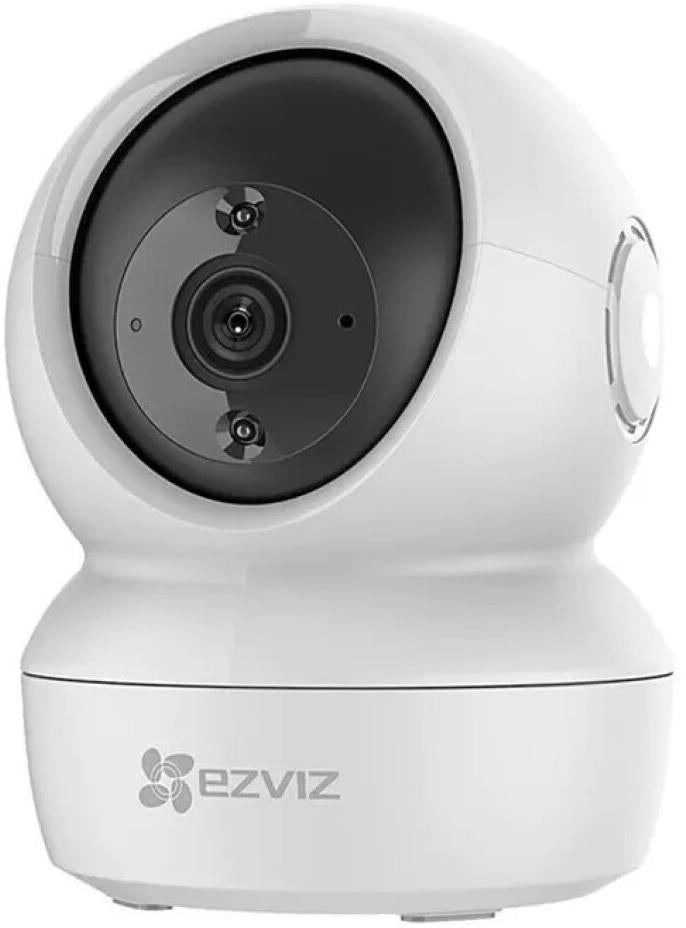

PAN & TILT SMART HOME CAMERA 1080P - H6C-P
EZVIZ H6C Pro Type C
Smart Security Catering For Every Household
Specifications
Model: CS-H6c-R105-1L2WF
Camera
Image Sensor: F1.6@1/3" Progressive Scan CMOS
Shutter Speed: Self-Adaptive Shutter
Lens: 4mm, view angle: 90°(Diagonal), 80° (Horizontal), 43°(Vertical)
Lens Mount: M12
Day & Night: IR-Cut filter with Auto-Switching
DNR: 3D DNR
WDR: Digital WDR
Compression
Video Compression: H.264/H.265
Video Bit Rate Adaptive Bit Rate.
Max. Resolution: 1920 × 1080
Frame Rate: Max:25fps; Self-Adaptive during Network Transmission
Network
Smart Alarm: Motion detection, Human Detection, Human Tracking, Big Noise Detection, Auto patrol
Wi-Fi Pairing: AP paring
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Interface
Storage: Micro SD Card Slot (Max. 512G)
Power: TYPE-C
Wired Network: RJ45 X 1 (10M/100M Self-Adaptive Ethernet Port)
Wi-Fi
Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz - 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps
Output Power(EIRP): 19 dBm
Antenna Gain: 1.9 dBi
General
Operating Conditions: -10 to 45 (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply: DC 5V/1A
Power Consumption: 5W max
IR Range: MAX. 10 Meters(32.81ft)
Dimensions: 88mm x 88.2 mm x 119mm (3.46 x 3.47 x 4.69)
Packaging Dimensions: 103mm x 103mm x 168mm (4.06 x 4.06 x 6.61)
Bare Weight: 218g(0.48lb)
In The Box
Camera
Power Adapter
Power Cable
Drill Template
Mounting Plate
EZVIZ Screw Kit
Regulatory Information
Quick Start Guide
Certifications
Certifications: CE / UL / WEEE / REACH / RoHS / UKCA
