The Cellcop GSM communicator system is based on SMS and GPRS technology. It uses standard cellphone technology for communication and has been designed to provide you with the greatest possible flexibility and convenience. Read this manual carefully and have your installer instruct you on your system’s operation and on which features have been implemented in your system. All users of this system should be equally instructed in its use.
The cellcop communicator can be used in various applications to monitor and control system alarms and parameters remotely using your cellphone. The unit can be configured to your requirements by using the configuration tool. The configuration tool allows the user to setup various options by setting the parameters and sending the setup to the cellcop. Using the configuration tool you can setup the Cellcop directly using a USB cable connected to the to the cellcop or remotely by connecting a GSM modem to the PC running the configuration tool and connect to the cellcop using a data call. The configuration can be backed up to a file using the configuration tool, for easy reuse in future or quickly setting up multiple boards with the same configuration.
Typical hardware requirements
- CP8844u-M Communicator module
- SIM card (Must be a RICA card)
- Power harness connector
- Inputs harness connector (Digital 1-8, Analog 1-4)
- Output harness connector
- Mode inputs harness connector
- GSM Antenna
- Power supply / Charger
- Micro SD card
- Relay board if unit will be used to switch external equipment
- PC running configuration software and USB cable

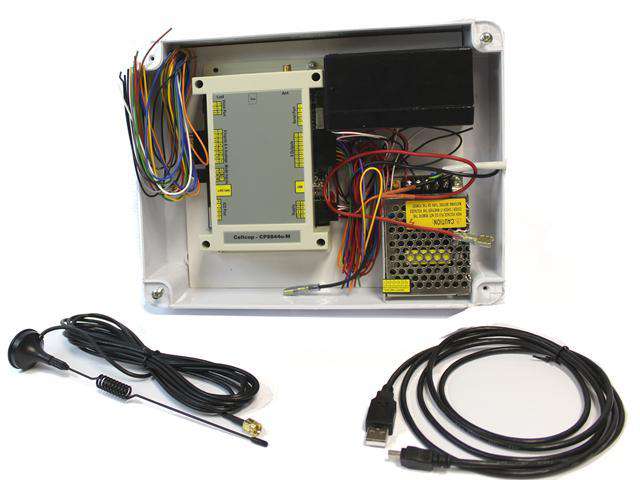

Kit Includes
- CP8844U-M Logger
- Battery
- GSM Antenna
- USB Cable
- Product Software
