AMD HD7750 Discrete GPU
Intel core i5 6th Gen. CPU
Support 6 x DP Outputs
128Gb SSD
Windows 10
8GB Ram

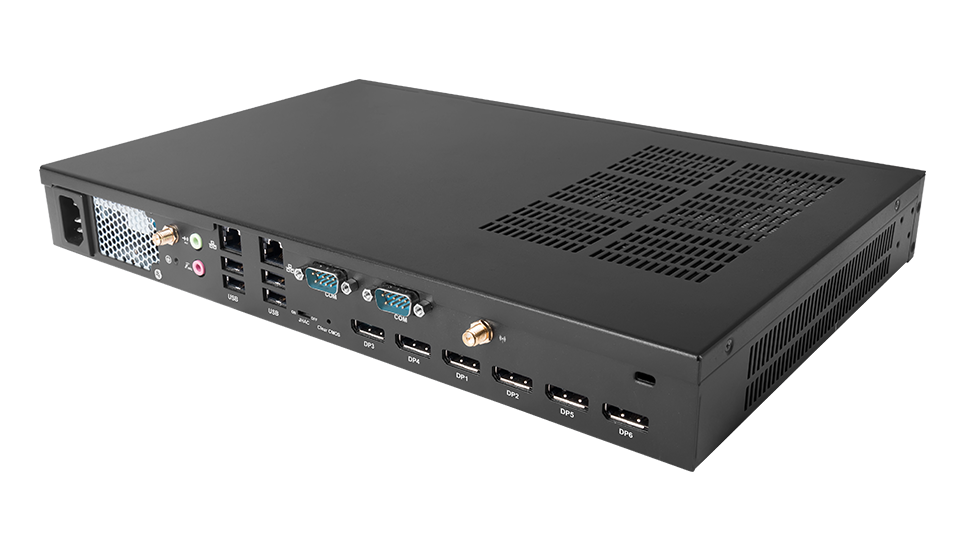

The player provides 6 x DP1.2 (4096x2304@60Hz) outputs which is idea for menu board or video wall applications. 6 of DP outputs are powered by discrete AMD® HD7750 GPU. Users can easily group monitor configurations including 1 x 5, 5 x 1, 2 x 3, 3 x 2 and 2 x 2. (At least 2 active DP to HDMI adapters are needed if you use HDMI display.)
| CPU |
CPU |
Intel® Core i5 LGA1151 Socket 6th Gen. Processors
|
|
|
|
|
|
H110
|
|
|
|
|
|
|
| Memory |
Size |
8GB Up to 32 GB |
| Type |
2 x SO-DIMM DDR3L-1600 MHz |
| Storage |
Socket 1 |
1 x Full-size Mini-PCIe for MSATA
|
| Socket 1 |
1 x 2.5” SATAIII
|
| Display |
|
AMD® Radeon™ 7750 GPU |
|
|
DirectX 11.1, OpenGL 4.2, OpenCL 1.2, H.264, MEPG2
|
|
|
6 x DP (Max.4096 x 2160 @60 Hz)
|
| Network |
Network Controller
|
1 x Intel i219 Gigabit Ethernet
1 x Intel i211 Gigabit Ethernet
|
|
Ethernet Interface
|
2 x RJ45
|
|
Wi-Fi/BT
|
1 x Full-size Mini-PCIe for Wi-Fi/BT
|
|
Mobile Network
|
NA
|

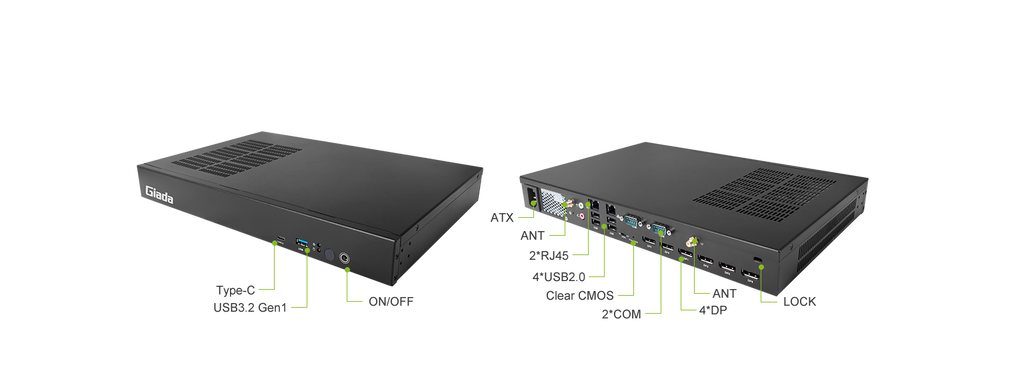

| I/O interface |
|
1 x USB Type-C3.2 Gen1
1 x USB3.2 Gen1, 4 x USB2.0
|
|
|
|
|
|
1 x MIC-IN, 1 x AUDIO-OUT
|
|
|
1 x Power on, 1 x CLR-CMOS
|
|
|
2 x Connector for Wi-Fi/BT
|
|
System
|
TPM
|
Optional: TPM2.0
|
|
Watchdog Timer
|
Yes |
|
Auto Power On
|
Yes
|
|
RTC
|
Set up independently every day, a week as a cycle
|
|
Power Requirement
|
AC, 110V~220V
|
|
Dimensions
|
350 mm x 235.2 mm x 43 mm (13.78" x 9.26" x 1.69")
|
|
Construction
|
Metal, Black
|
|
Operating System
|
Windows 10
|
|
Operating Temperature
|
0°C ~40°C (32°F~104°F) @0.7m/s Air Flow
|
|
Humidity
|
95% @ 40°C (non-condensing)
|
|
Certifications
|
CE, FCC Class B
|
