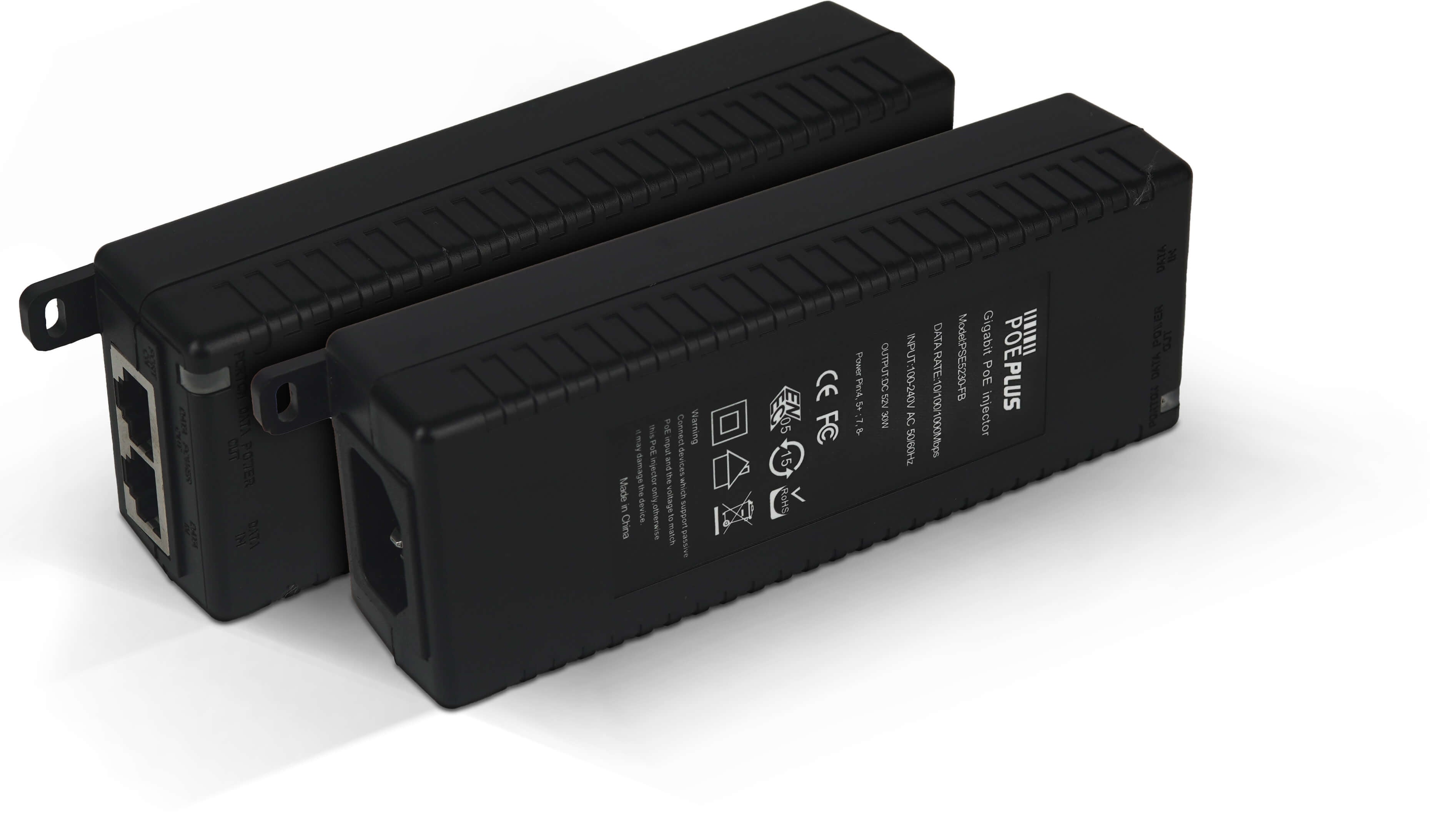

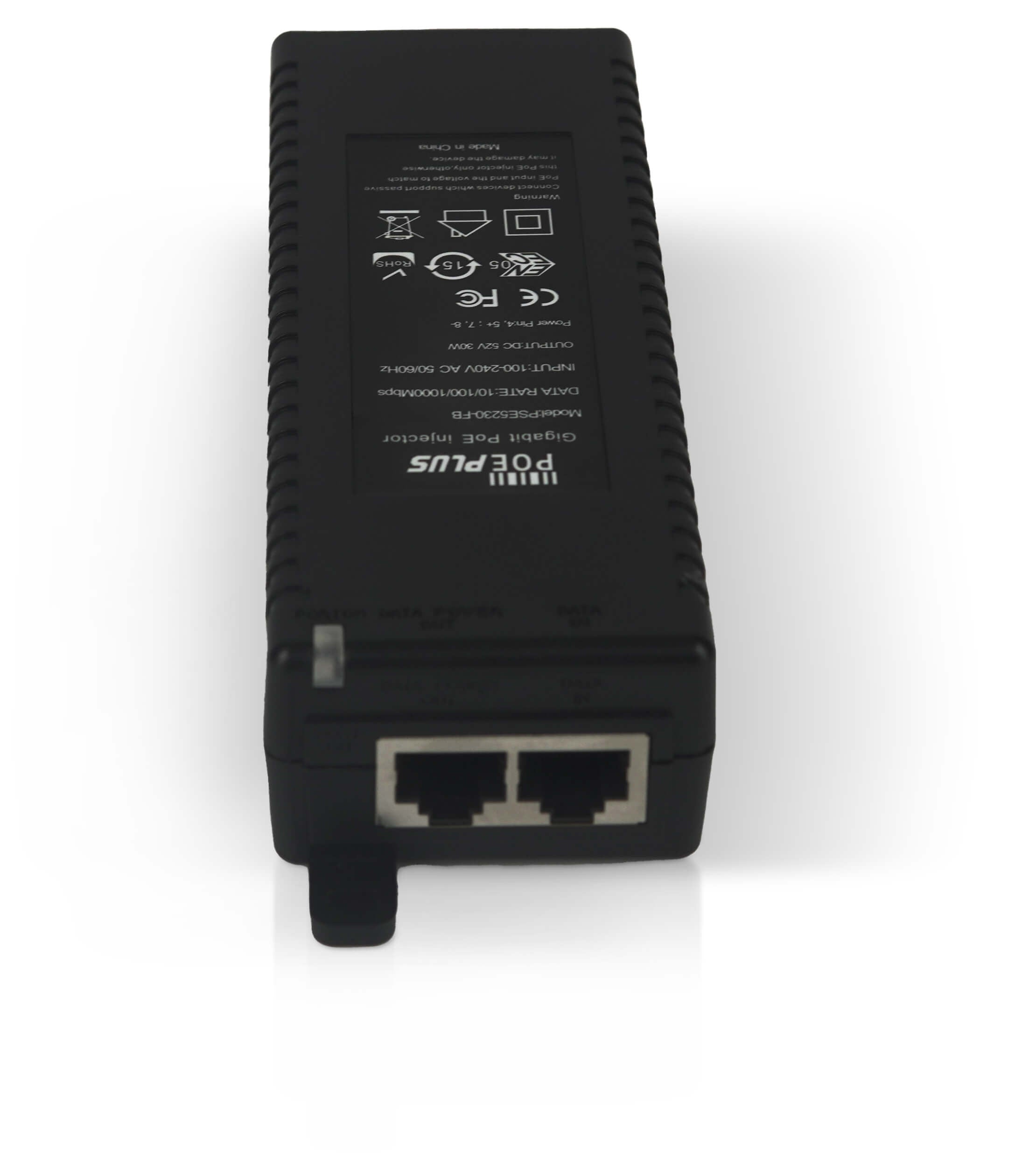

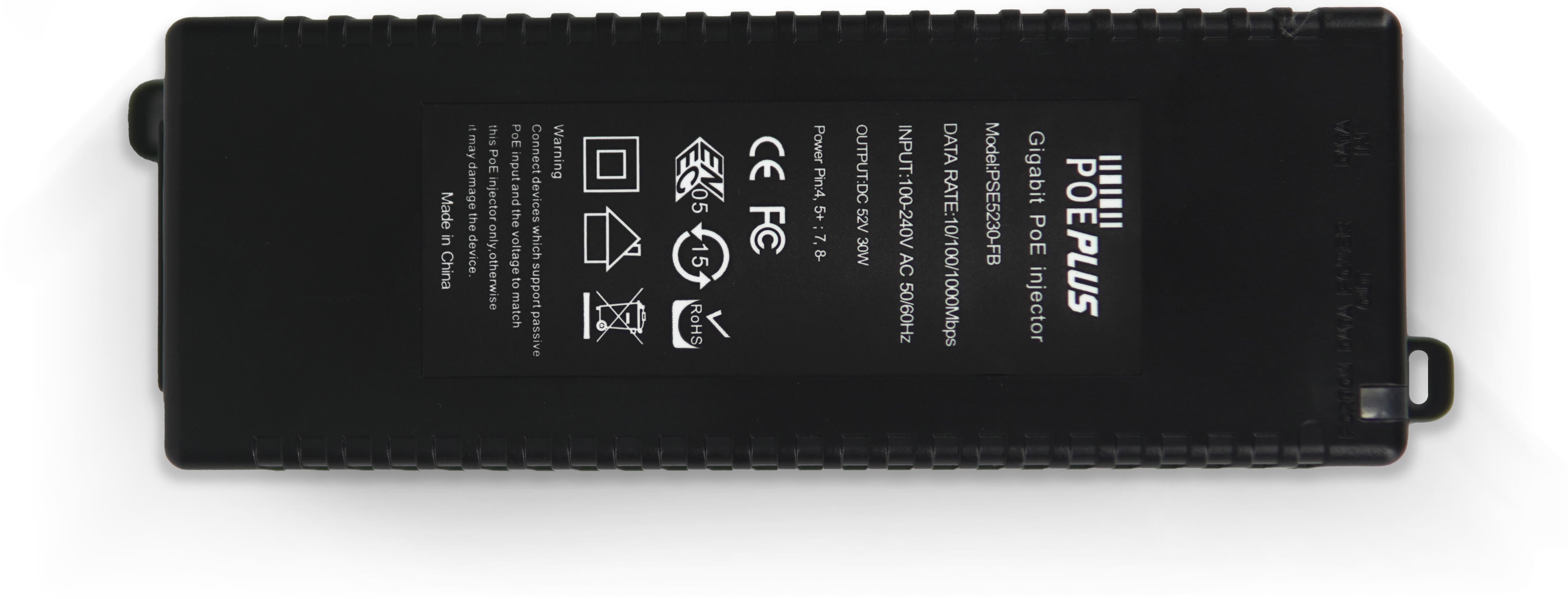

The Acconet POE-48V-30WPG passive PoE injector delivers 52V DC power and data transmission over a single Ethernet cable, adhering to IEEE 802.3/802.3u/802.3ab standards with gigabit speeds (10/100/1000 Mbps). It provides a maximum power output of 30W (0.6A) with power pin assignments of 4/5 (+) and 7/8 (–). This device is suitable for powering PoE devices such as IP cameras, wireless access points, and VoIP phones, particularly in areas with limited power outlets. Its plug-and-play design includes auto MDI/MDI-X and auto-negotiation, requiring no configuration. The injector supports remote power delivery up to 100 metres and operates within an AC input voltage range of 110–240V (50/60Hz) and a temperature range of 0°C to 50°C, with humidity tolerance of 5%–95% (non-condensing). With compact dimensions of 166mm x 57mm x 40mm and a weight of under 200g, it is suitable for various applications. The built-in circuit protection ensures safe operation. The device features one data input and one PoE output port (RJ45).

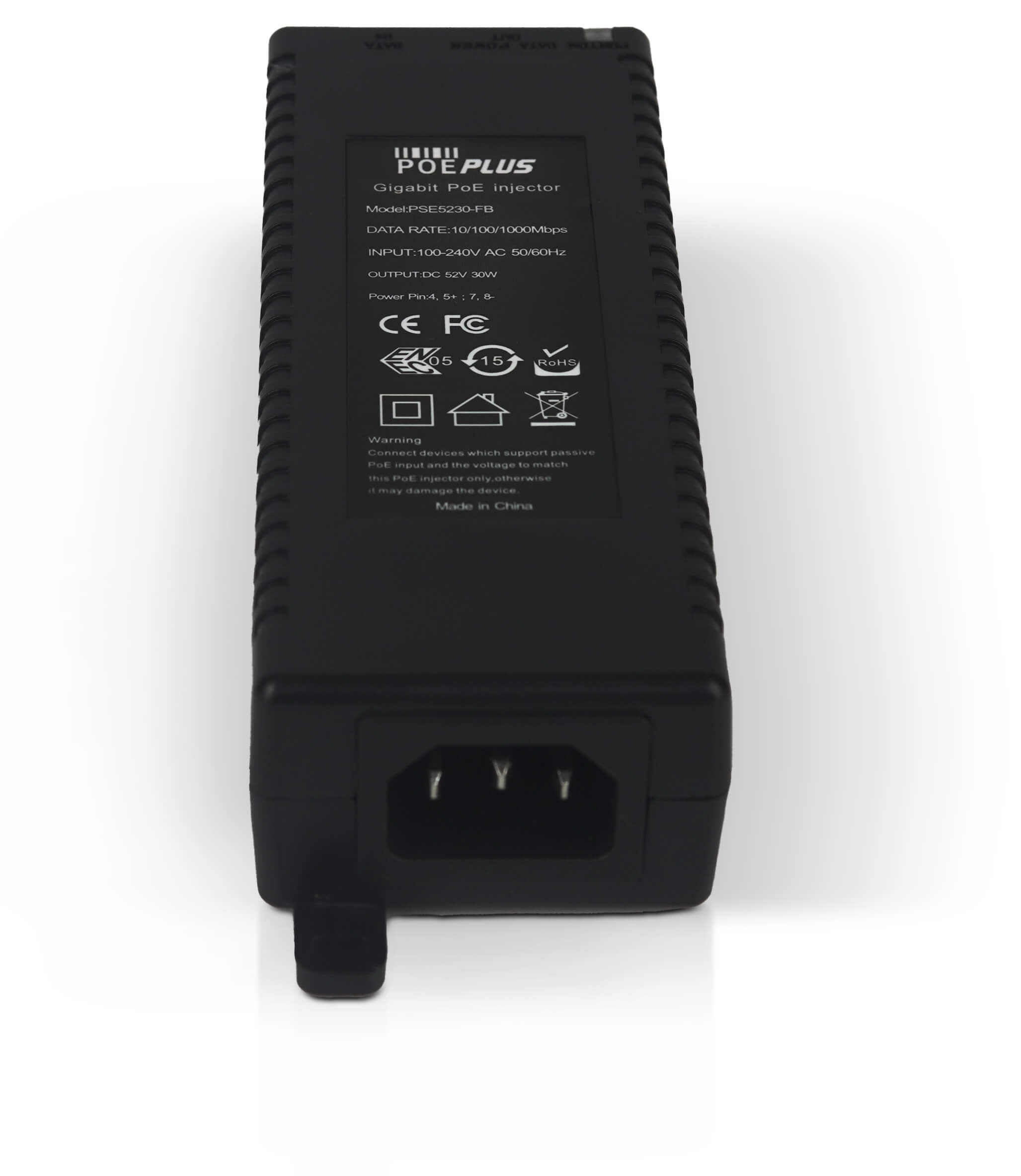

IEC Input Plug. Passive PoE unit, can power 48V passive PoE devices. Kettle Cord Input
-
Brand: Power & POE
-
SKU: POE-48V-30WPG
-
Manufacturer SKU: PSE5230-FB
