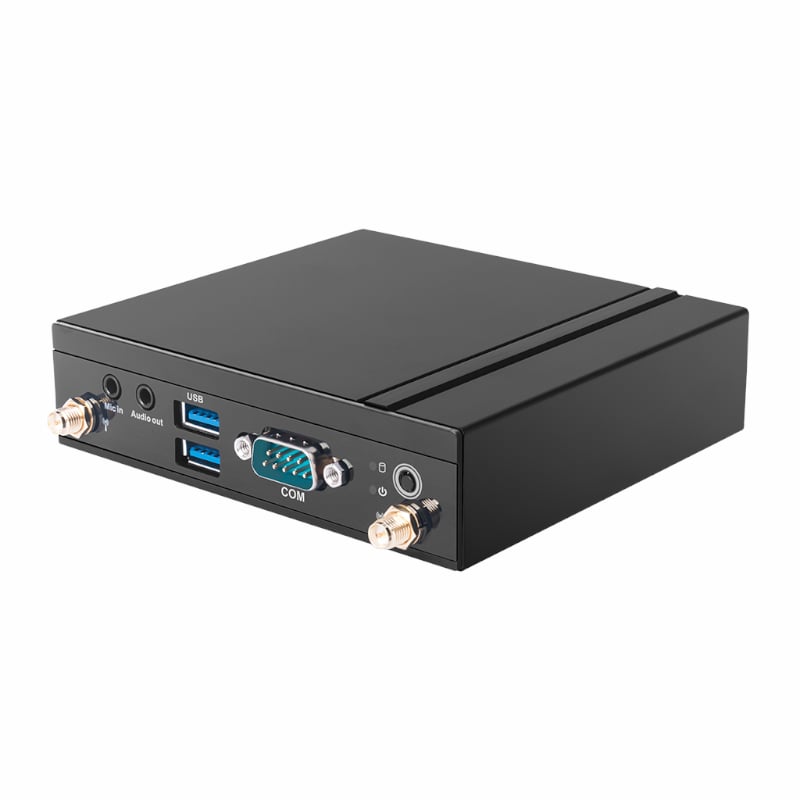

The Giada VM23 is equipped with the Apollo Lake Celeron® processor N3350 (TDP ≤6W). It's Giada's top selling model, with best price-performance ratio. It supports onboard LPDDR4 memory and eMMC5.1 storage. The player adopts Intel® HD Graphics 500. It supports vivid, dual 1080p video decoding. The HDMI 1.4a supports resolutions up to 4096 x 2160@24Hz, while DisplayPort 1.2 port supports 4096 x 2160@60Hz. With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.
FEATURES:
- Intel® Celeron® N3350 processor
- 1 x DP, 1 x HDMI, Supporting 4K Display
- Onboard DDR4 4GB
- 1 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for WiFi/BT
- Long life cycle
- Fanless Design
SPECIFICATIONS:
- Processor:
- CPU: Intel® Celeron® N3350 processor
- Frequency: 2.40 GHz
- Cores: 2
- Chipset: SoC
- Memory:
- Type: LPDDR4-2133 MHz
- Socket: Onboard
- Size: 4GB
- Storage:
- Socket: 1 x Full-size Mini-PCIe for MSATA
- Onboard: 64 GBGB, Onboard eMMC
- Graphics:
- GPU: Intel® UHD Graphics
- Graphic Engine: DirectX 12, OpenGL 4.2, OpenCL 2.0
- DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)
- HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)
- Network:
- Controller: Realtek RTL 8111H Gigabit Ethernet
- Interface: 1 x RJ45
- Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
- Mobile Network: NA
- I/O:
- USB: 2 x USB3.2 Gen1, 2 x USB2.0
- Serial Port: 1 x RS232
- Audio: 1 x MIC-IN, 1 x AUDIO-OUT
- Antenna: 1 x Connector for Wi-Fi/BT
- Button: 1 x Power on, 1 x CLR-CMOS
- System:
- Watchdog Timer: Yes
- Auto Power on: Yes
- RTC: Set up independently every day
- Remo on: Yes
- Fanless: Yes
- Operation System:
- Windows: Windows 10 (64Bit), Windows 11 (64bit)
- Linux: Linux Ubuntu (64bit)
- Power:
- Power Type: DC-IN
- Input Voltage: 12V/2A
- Environment:
- Operating Temperature: 0°C ~40°C (32°F~104°F) @0.7m/s Air Flow
- Relative Humidity: 95% @ 40°C (non-condensing)
- Certification: CE, FCC Class B
- Fanless: Yes
- Colour: Black
- Dimensions: 15.4 x 12.5 x 4 cm
WHAT’S IN THE BOX:
- Giada VM23 Intel Celeron compact Fanless Signage Player – Black x1
- WiFi Antenna x1
- AC Power Adapter x1
- Power Cable x1
- User Manual x1
