The Giada DN74 ARM Fanless Android Signage Player utilises an RK3399 Dual-core ARM Cortex-A72 and a Quad-core ARM Cortex-A53 CPU. It has onboard memory and eMMC storage. Its dual HDMI outputs support two displays, with one reaching 4K resolutions and the other running at a resolution of 2K. Giada brings all of these components together with the Android 7.1 operation system, making it a suitable entry-level signage player for Android environments.
Features:
- Rockchip RK3399
- Onboard 4GB LPDDR4 memory

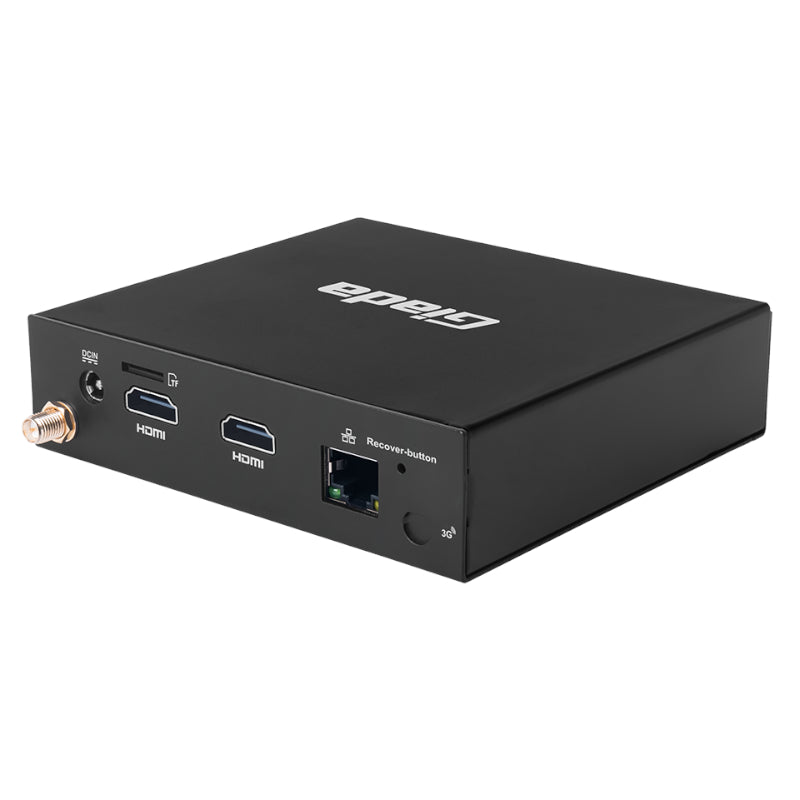

- Two HDMI ports, one supporting 4K and the other 2K
- Onboard eMMC storage of 32GB

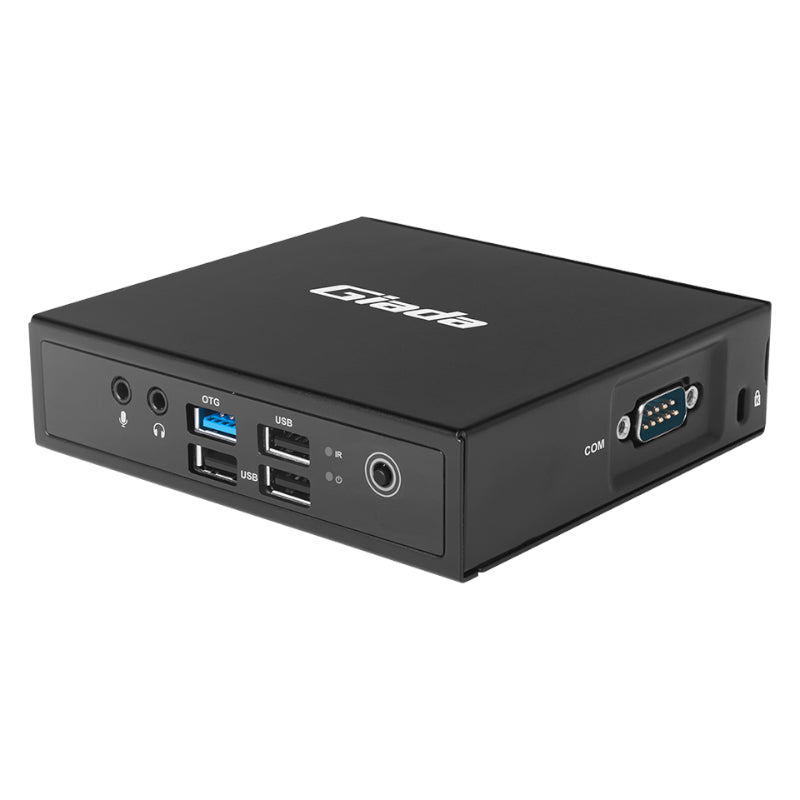

- One USB3.0 port and three USB2.0 ports

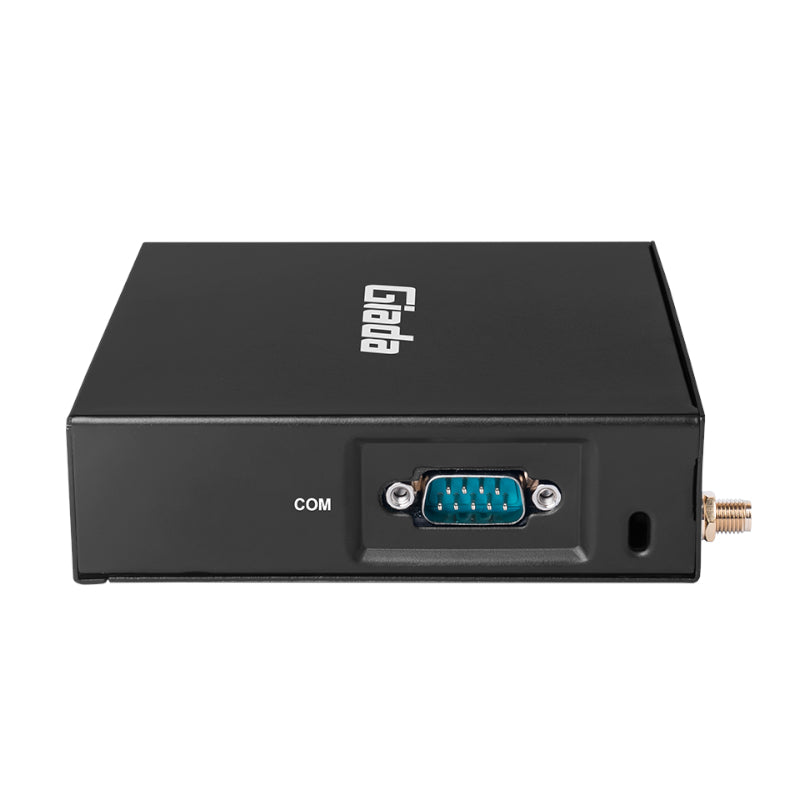

- RS232 Serial Port
- RJ45 Network connection
- Mini-PCIe slot for 3G/4G connectivity
- SIM Card slot
Specifications:
-
Processor
- CPU: Rockchip RK3399
- Frequency: Up to 1.8GHz
- Processing Units: 2 Cores Cortex-A72 & 4 Cores Cortex-A53
- TDP: 6W
-
Memory
- Type: LPDDR4
- Socket: Onboard
- Size: 4GB
-
Graphics
- GPU: Mali-T860MP4
- Graphic Engine: OpenGL ES1.1/2.0/3.0/3.1, OpenCL, Support AFBC (ARM Frame Neck Scarfer Compression)
- Video Decoding Capability: 4K VP9 decoders, 4K 10bits H.265 video decoders, 1080P VC-1, MPEG-1/2/4, VP8 video decoders
-
Display
- HDMI: 1x HDMI (Max. 4K@60Hz) | 1x HDMI (Max. 2K@30Hz)
-
Network
- Controller: 1 x Pef7071 PHY
- Interface: 1x RJ45
-
I/O
- USB: 1 x USB3.2 Gen1 (OTG), 3 x USB2.0
- Serial Port: 2x RS232
- Audio: 1x MIC-IN, 1x AUDIO-OUT
- Mini-PCIe: 1x Full-size Mini-PCIe for 3G/4G
- SIM: 1x SIM Slot
- WiFi on Board: 1x WiFi Module Onboard (WIFI 5GHz, IEEE802.11 a/b/g/ac)
-
Storage
-
Power
- Power Type: DC-IN
- Power Adapter: 12V/2A
-
Environment
- Operating Temperature: 0℃ ~ 40℃ at 0.7m/s Air Flow
- Relative Humidity: 95%@40℃ (non-condensing)
- Supported Operating Systems: Android 7.1
- Mounting: Desk/Wall Mounting and VESA
- Certification: CE, FCC
- Dimensions: 11.66 x 10.74 x 3 cm
What’s in The Box:
- Giada DN74 ARM RK3399 Fanless Android Signage Player 32GB x1
- AC Power Adapter x1
- WiFi Antenna x1
- Length: 25.0 cm
- Width: 7.0 cm
- Height: 19.0 cm
- Weight: 0.988 kg
