Elevate your digital signage deployments with the Giada DN24 Raspberry Pi, a compact and energy-efficient media player tailored for cost-effective signage solutions. Powered by the Raspberry Pi® CM4 module, this robust device is engineered for seamless 24/7 operation, making it ideal for retail displays, corporate communications, transportation hubs, and educational environments.
The Giada DN24 Raspberry Pi combines an ultra-slim form factor with a silent, fanless design, delivering high performance without compromising reliability. It supports 4K video output via HDMI and can power an additional Full HD display via GPIO DSI, making it a versatile solution for dual-display signage requirements. Integrated with Giada’s patented JAHC technology, it ensures automatic power-on and scheduling, enhancing system stability in unattended environments.
Designed for deployment flexibility, the Giada DN24 Raspberry Pi supports VESA mounting and offers extensive connectivity, including dual USB ports, RJ45 LAN, and expansion options through GPIO, UART, and I2C. Whether used in smart kiosks or menu boards, this unit empowers businesses to deliver engaging content with minimal maintenance.
Built for integration, scalability, and long-term reliability, the Giada DN24 Raspberry Pi is the go-to signage player for solution providers seeking an affordable and high-performing media platform.
FEATURES:
- Powered by Raspberry Pi CM5

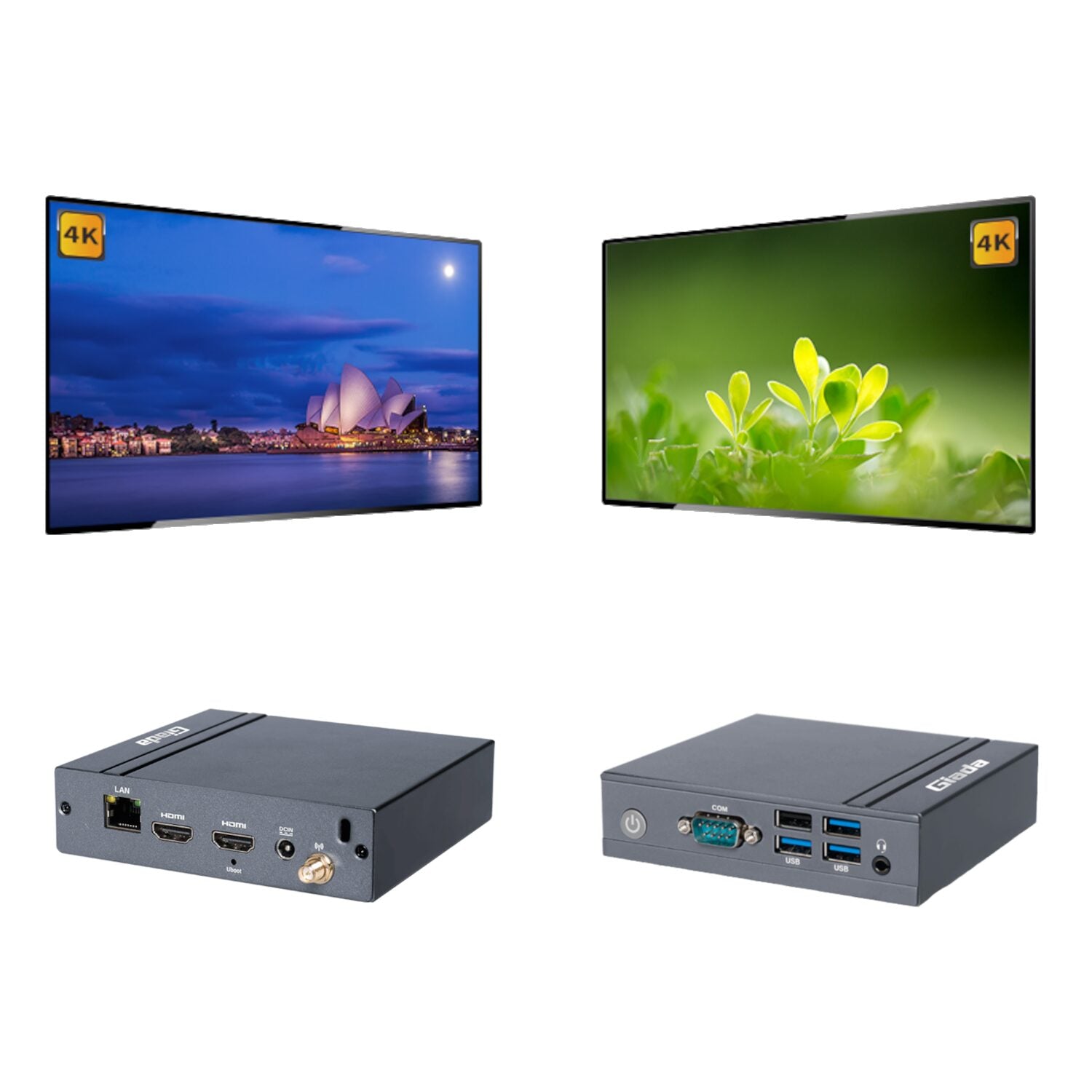

- Dual-display support outputs @ 4K via HDMI and Full HD via GPIO DSI, ideal for multi-screen digital signage
- Ultra-compact, slim, fanless design and silent operation for space-constrained and noise-sensitive environments
- JAHC hardware watchdog ensures automatic power-on, power failure recovery, and scheduled power management
- Flexible connectivity options include USB 3.2 Gen 1, USB 2.0, HDMI 2.0a, RJ45 LAN, GPIO, UART, and I2C
- VESA mount supports integration into kiosks, POS systems, and digital signage enclosures
- Built for 24/7 operation, industrial-grade reliability for continuous use across high-demand environments
- Energy-efficient, low-power consumption design tailored for scalable, cost-effective deployments
SPECIFICATIONS:
- Compute Module
- Compute Module: Raspberry Pi CM4 Lite
- Frequency: 1.50 GHz
- Processing units: 4 Cores Cortex-A72
Memory on Module: 2 GB, Onboard LPDDR4-3200 MHz
- System
- Storage: 32 GB, Onboard eMMC (Optional: 64 GB)
- Watchdog Timer: Yes
- Auto Power On: Yes
- RTC: Set up independently every day, a week as a cycle
- Power Requirement: DC-INN, 12 V/2.08 A
- Dimensions: 11.6 x 10.6 x 3 cm
- Construction: Metal
- Operating System: Raspberry Pi OS
- Operating Temperature: 0°C ~45°C @0.7m/s Air Flow
- Humidity: 95% @ 45°C (non-condensing)
- Certifications: CE, FCC Class B, UKCA
- Network
- Network Controller: 1 x Pef7071 PHY
- Ethernet Interface: 1 x RJ45
- Wi-Fi/BT: Onboard Wi-Fi/BT module (2.4 GHZ/5 GHz)
- Mobile Network: NA
- Display
- GPU: Video Core VI
- Graphic Engine: OpenGL ES3.0, Vulkan 1.0
- Multi-Media:
- 4K60 H.265 video decoders
- 1080p60 H. 264 decoders
- 1080p30 H.264 video encoders
- Display Interface: 2 x HDMI2.0 (Max. 3840 x 2160 @60 Hz)
- I/O interface
- USB:
- 3 x USB3.2 Gen
- 1 x USB2.0
- Serial Port: 1 x RS232
- Audio: 1 x 2-IN-1 headset (MIC-IN & AUDIO-OUT)
- Button:
- Antenna:
- 1 x Connector for Wi-FI/BT
- 1 x Reserved
WHAT'S IN THE BOX:
- Giada DN24 Raspberry Pi Compact Signage Player - CM4 Lite
- Length: 24.0 cm
- Width: 19.0 cm
- Height: 7.0 cm
- Weight: 0.938 kg
