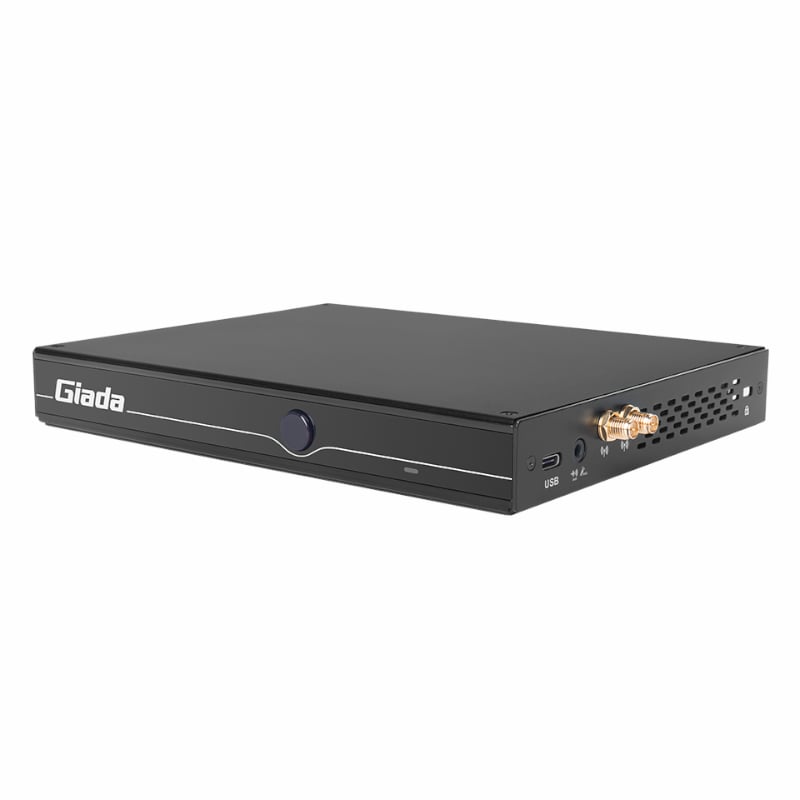

The Giada D613, armed with an Intel Raptor Lake Core i3-1315U processor, introduces a new era of performance and efficiency. The processors feature a combination of high-performance and efficient cores, working in harmony to optimise power consumption without compromising processing power. With support for 4 simultaneous 4K60 displays and hardware-accelerated video encoding and decoding, Giada D613 delivers stunning visuals and an immersive multimedia experience. Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection. 5G provides game-changing benefits like speeds up to 10 times faster than 4G LTE speeds, a safer alternative to public Wi-Fi, low latency, and massive capacity. The Quectel®-RM50XQ 5G module was certified to be compatible with D613.
FEATURES:
- Intel® Core™ i3-1315U processor
- 4 x HDMI, Supporting 4K Display
- 2 x SO-DIMM DDR4 Memory, Up to 64GB
- 1 x M-key M.2 (2242/2280) for SSD
- Supporting RJ45, Wi-Fi 6 (CNVi), and 3G/4G/5G Ethernet Access
SPECIFICATIONS:
- Processor:
- CPU: Intel® Core™ i3-1315U processor
- Frequency: 3.30GHz (Up to 4.50GHz )
- Cores: 6
- BIOS: AMI EFI 64 Mbit
- Memory:
- Type: DDR4-3200MHz
- Socket: 2 x SO-DIMM
- Max Size: 64GB
- Graphics:
- GPU: Intel® UHD Graphics
- Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
- HDMI: 4 x HDMI (Max.4096 x 2304 @60 Hz)
- Network:
- Controller: 1 x Intel® i219LM Gigabit Ethernet
- Interface: 1 x RJ45
- Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot
- Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
- I/O:
- USB: 1 x USB3.2 Gen2, 2 x USB2.0
- USB Type-C: 1 x USB Type-C3.2 Gen2
- Serial Port: 1 x RS232
- Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
- Button: 1 x Power on, 1 x CLR-CMOS
- Storage:
- M.2: 1 x M-key M.2 (2242/2280) for NVMe
- JAHC Tech:
- WatchDog Timer: 0~255 Second Time Out Support
- Auto Power On: Power Activated Automatically Start
- Operation System:
- Windows: Windows 11 (64bit)
- Linux: Linux Ubuntu (64bit)
- Chrome: Chrome OS
- Power:
- Power Type: DC-IN
- Input Voltage: 19 V/4.74 A
- Environment:
- Operating Temperature: 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
- Relative Humidity: 95%@40℃ (non-condensing)
- Certification: CE, FCC Class B, CCC
- Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
- Construction: Metal
- Colour: Black
- Dimensions: 18.9 x 14.8 x 2.6 cm
WHAT’S IN THE BOX:
- Giada D613 Intel Core i3 High-end Digital Signage Player – Black x1
- Wi-Fi Antenna x2
- User Manual x1
- Length: 27.0 cm
- Width: 7.0 cm
- Height: 24.0 cm
- Weight: 1.661 kg
