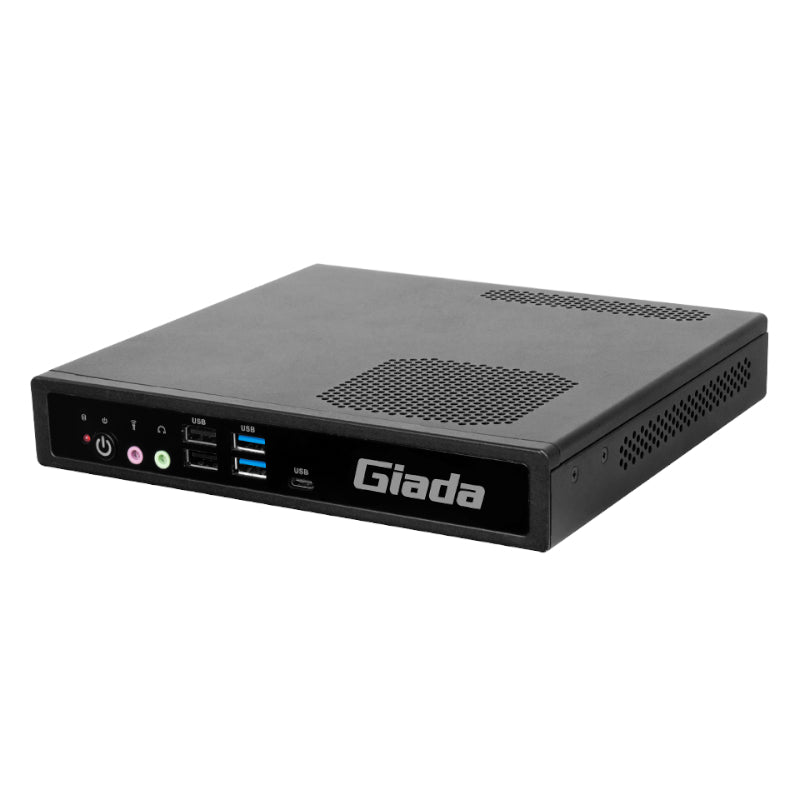

The GIADA BQ612 with H610 Barebone is a small yet powerful computer built to satisfy your demands. It has an Intel® LGA1700 Socket, which is compatible with 12th/13th Gen processors and ensures high-performance computing. It has two DDR4-3200 MHz memory slots and is capable of handling multitasking and demanding tasks. The barebone has one HDMI port that supports 4K resolution for amazing images.
With 2 x RJ45 Gigabit LAN connections and 1 x E-Key M.2 (2230) slot for WiFi/BT, you'll be able to stay connected in any setting. The GIADA BQ612 is distinguished by its lengthy life cycle, which ensures long-term performance and reliability for your computing demands. This barebone is ready to go, whether for business or play.
Note: CPU is not included.
FEATURES:
- 1 x HDMI supporting 4K
- Intel® LGA1700 Socket 12th/13th Gen. processors
- 2x DDR4-3200 MHz Memory
- 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for WiFi/BT
- Long life cycle
SPECIFICATIONS:
- Processor:
- CPU: Intel® LGA1700 Socket 12th/13th Gen. processors
- Turbo Frequency: by CPU
- Chipset: H610/B660
- Processing Units: by CPU
- TDP: ≤ 65 W
- Memory:
- Type: 2 x SO-DIMM DDR4-3200 MHz
- Size: Up to 64 GB
- Storage:
- Socket 1: 1 x M-Key M.2 (2242/2280) for PCIe SSD
- Socket 2: 1 x 2.5” SATAIII (7+15 pin)
- Graphics:
- GPU: Intel® UHD Graphics 730/770
- Graphic Engine: DirectX 12.0, OpenGL 4.5, OpenCL 3.0,
- VGA: 1 x VGA (Max. 2048 x 1536 @60 Hz)
- HDMI: 1 x HDMI (Max. 4096 x 2160 @60 Hz)
- Network:
- Controller: Realtek RTL 8111H Gigabit Ethernet
- Interface: 2 x RJ45
- Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
- Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot
- I/O:
- USB: 1 x USB Type-C3.2 Gen1 (H610), 2 x USB3.2 Gen1, 6 x USB2.0 (H610)
- Serial Port: 2 x RS232
- Audio: 1 x MIC-IN, 1 x AUDIO-OUT
- Antenna: 2 x Connector for Wi-Fi/BT
- Button: 1 x Power on, 1 x CLR-CMOS
- System:
- TPM: Optional: TPM2.0
- Watchdog Timer: Yes
- Auto Power on: Yes
- RTC: Set up independently every day
- Remo on: Yes
- Operation System:
- Windows: Windows 10 (64Bit), Windows 11 (64bit)
- Linux: Linux Ubuntu (64bit)
- Power:
- Power Type: DC-IN
- Input Voltage: 19V/4.74A
- Environment:
- Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
- Relative Humidity: 95% @ 45°C (non-condensing)
- Certification: CE, FCC Class B
- Construction: Metal
- Colour: Black
- Dimensions: 20 x 18.5 x 3.5 cm
WHAT’S IN THE BOX:
- Giada BQ612 with H610 barebones embedded PC – Black x1
- WiFi Antenna x2
- AC Power Adapter x1
- Power Cable x1
- User Manual x1
