Description

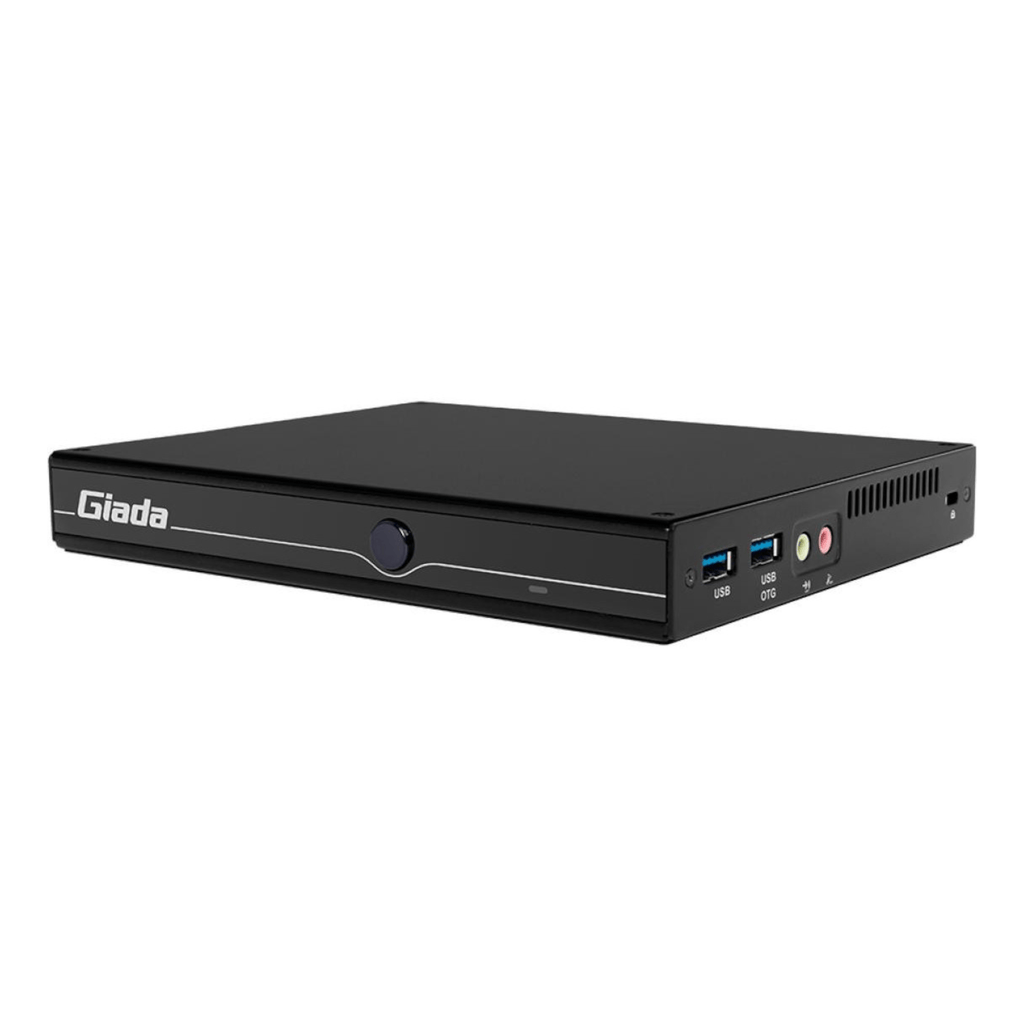

Unlock next-level digital display performance with the Android 12 Digital Signage Player, engineered to meet the demands of high-resolution, multi-screen content delivery. The Giada D77 is powered by the advanced Rockchip RK3588 processor, delivering exceptional performance and efficiency for complex signage environments. Equipped with up to 8GB LPDDR4 RAM and 128GB eMMC storage, this system is built for seamless media playback, real-time content updates, and interactive digital solutions.
Designed for enterprise and commercial deployment, the Android 12 Digital Signage Player features four HDMI 2.1 outputs supporting up to 8K resolution, enabling dynamic, immersive visuals across multiple displays. Its slim, fanless chassis ensures silent operation and durability in 24/7 applications, including retail, corporate, education, and transportation environments.
Built on Android 12, the Giada D77 provides a flexible, secure, and customisable operating environment. Rich I/O ports, including USB 3.0, USB-C, RS232, and Gigabit LAN support diverse peripheral integration and network configurations. This Android 12 Digital Signage Player is ideal for digital signage professionals seeking cutting-edge performance, stability, and ease of deployment.
With its compact footprint, high-efficiency processing, and multi-display support, the Giada D77 redefines the capabilities of an Android 12 Digital Signage Player in enterprise-grade signage networks.
FEATURES:
- High-performance ARM Architecture powered by Rockchip RK3588 8-core processor
- Native Android 12 OS offers an optimised, secure, and flexible platform for digital signage applications
- Quad HDMI 2.1 Outputs support up to 4x 4K or a single 8K display for immersive multi-screen deployments
- Fanless design ensures quiet operation and high reliability for 24/7 commercial usage
- Robust memory and storage with up to 8GB LPDDR4 RAM and 128GB eMMC for fast content rendering and local playback
- Wide connectivity options including USB 3.0, Type-C, RS232, and Gigabit LAN for peripheral and network integration
- Compact industrial form factor ideal for embedded installations and space-sensitive deployments
- Trusted Giada quality ensures long-term lifecycle support and deployment reliability across industries
- Flexible mounting supports VESA mounting for seamless integration behind screens or within enclosures
- Efficient power management with 12V DC input for streamlined installation in varied environments
SPECIFICATIONS:
- CPU
- CPU: Rockchip RK3588
- Frequency: 2.40 GHz
- Processing units: 4 Cores Cortex-A76 & 4 Cores Cortex-A55
- TDP: 15 W
- Memory
- Size: 8 GB,
- Type: Onboard 2-channel LPDDR4x
-
Storage
- Onboard:
- 128 GB, Onboard eMMC
- 1 x M-key M.2 (2280) for PCIe3.0 X4 SSD (NVMe)
- Onboard:
- Network
- Network Controller: 1 x Realtek RTL 8211E Gigabit Ethernet
- Ethernet Interface: 1 x GbE RJ45
- Wi-Fi/BT: 1 x E-keyM.2(2230) for Wi-Fi/BT module,
- Supporting Wi-Fi 5 /6
- Mobile Network:
- 1 x B-key M.2(3042) for 3G /4G
- 1 x SIM Slot
- Display
- GPU: ARM Mali-G610 MP4 GPU
- Graphic Engine: OpenGL ES 1.1/2.0/3.2, OpenCL 1.1/1.2/2.0, Vulkan 1.1/1.2
- Multi-Media:
- H.265/H.264/AV1/AVS2 etc. video decoder, up to 8K@60fps
- 8K@30fps video encoders for H.264/H.265
- Display Interface:
- 3 x HDMI (Max. 4096 x 2160 @60 Hz)
- 1 x HDMI (Max. 1920 x 1080 @60Hz)
- I/O interface
- USB:
- 1 x USB3.2 Gen1 (OTG), 1 x USB3.2 Gen1
- 2 x USB2.0
- Serial Port: 1 x RS232
- Audio: 1 x MIC-IN, 1 x AUDIO-OUT
- Button: 1 x Power on, 1 x Recovery
- Antenna:
- 1 x Connector for Wi-Fi/BT
- 1 x Connector for 3G/4G (Reserved)
- System
- Watchdog Timer: Yes
- Auto Power On: Yes
- RTC: Set up independently every day, a week as a cycle
- Power Requirement: DC-IN, 12 V/2.08 A
- Dimensions: 18.96 x 14.83 x 2.6 cm
- Construction: Metal, Black
- Operating System: Android 12
- Operating Temperature: 0°C ~45°C @0.7m/s Air Flow
- Humidity: 95% @ 45°C (non-condensing)
- Certifications: CE, FCC Class B
WHAT'S IN THE BOX:
- Giada Android 12 Digital Signage Player - D77 with RK3588 x1
