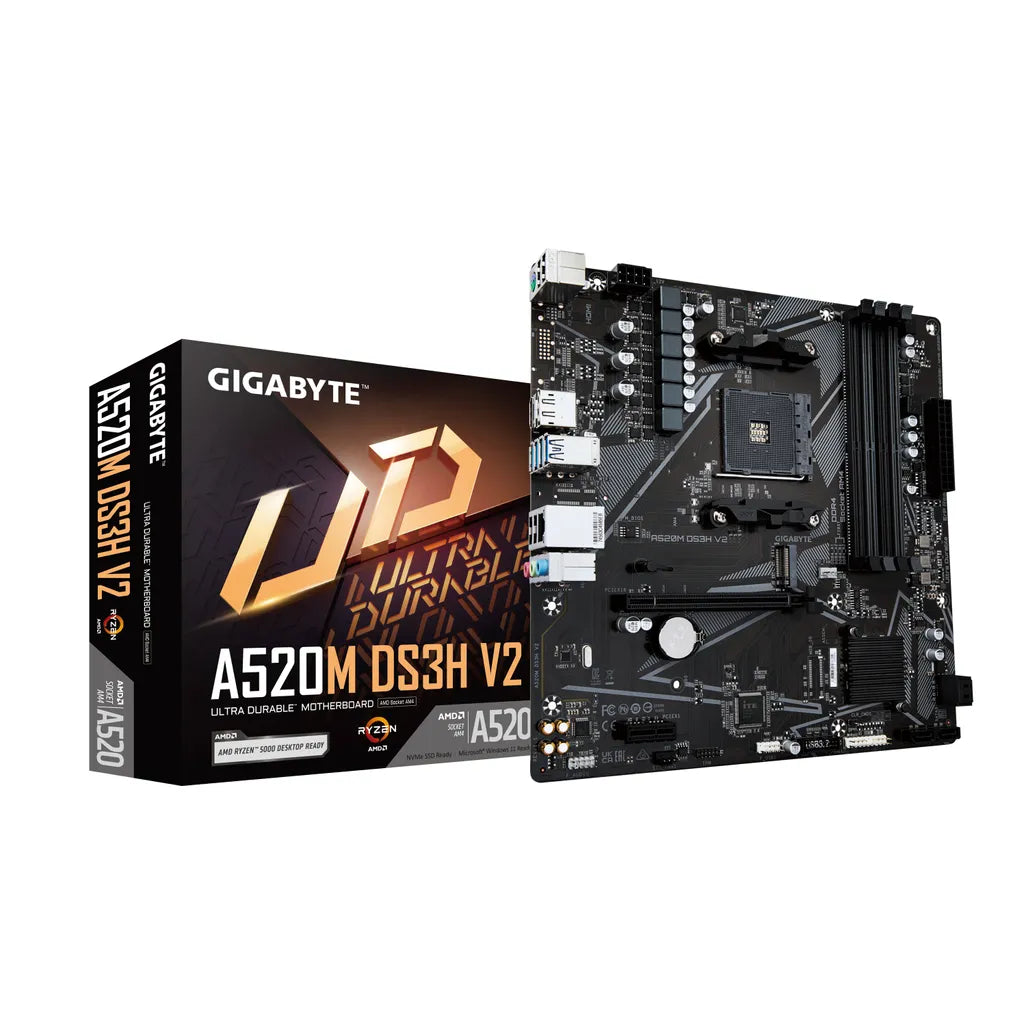

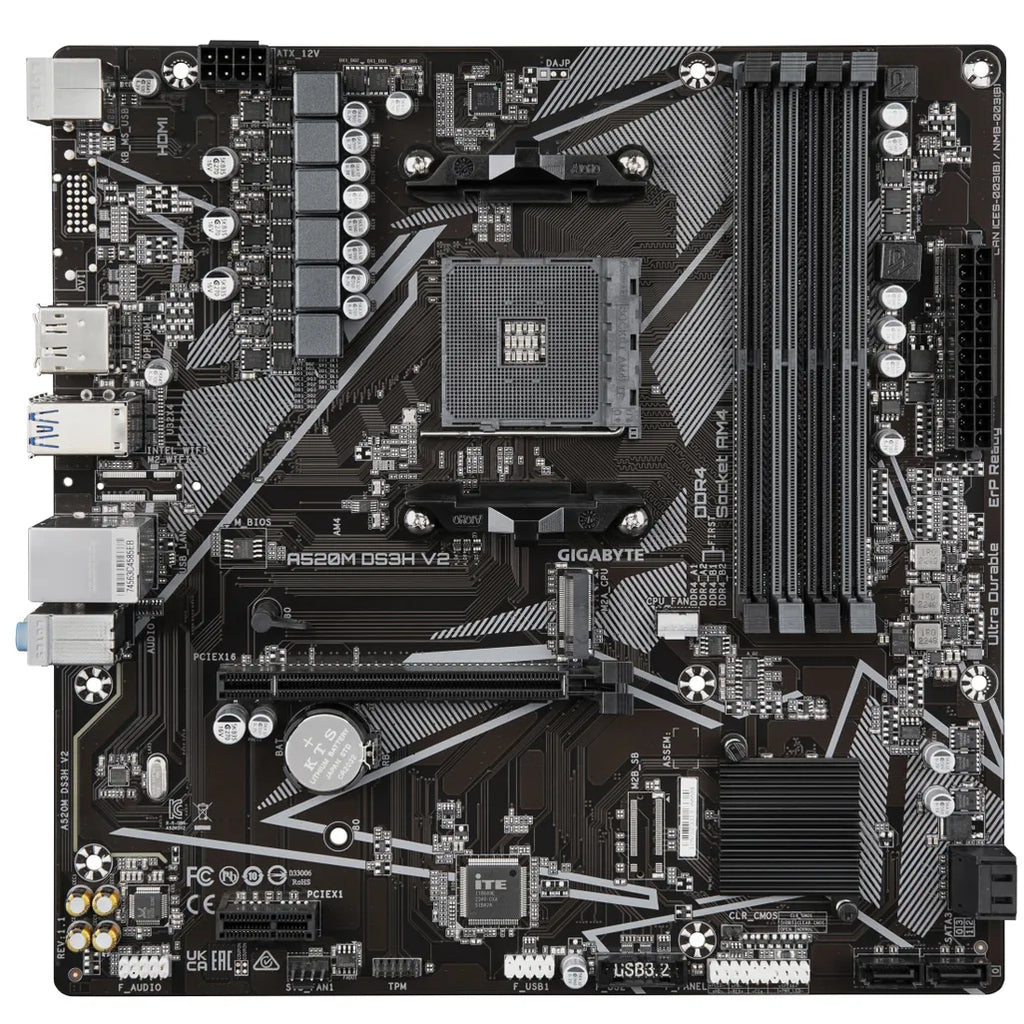

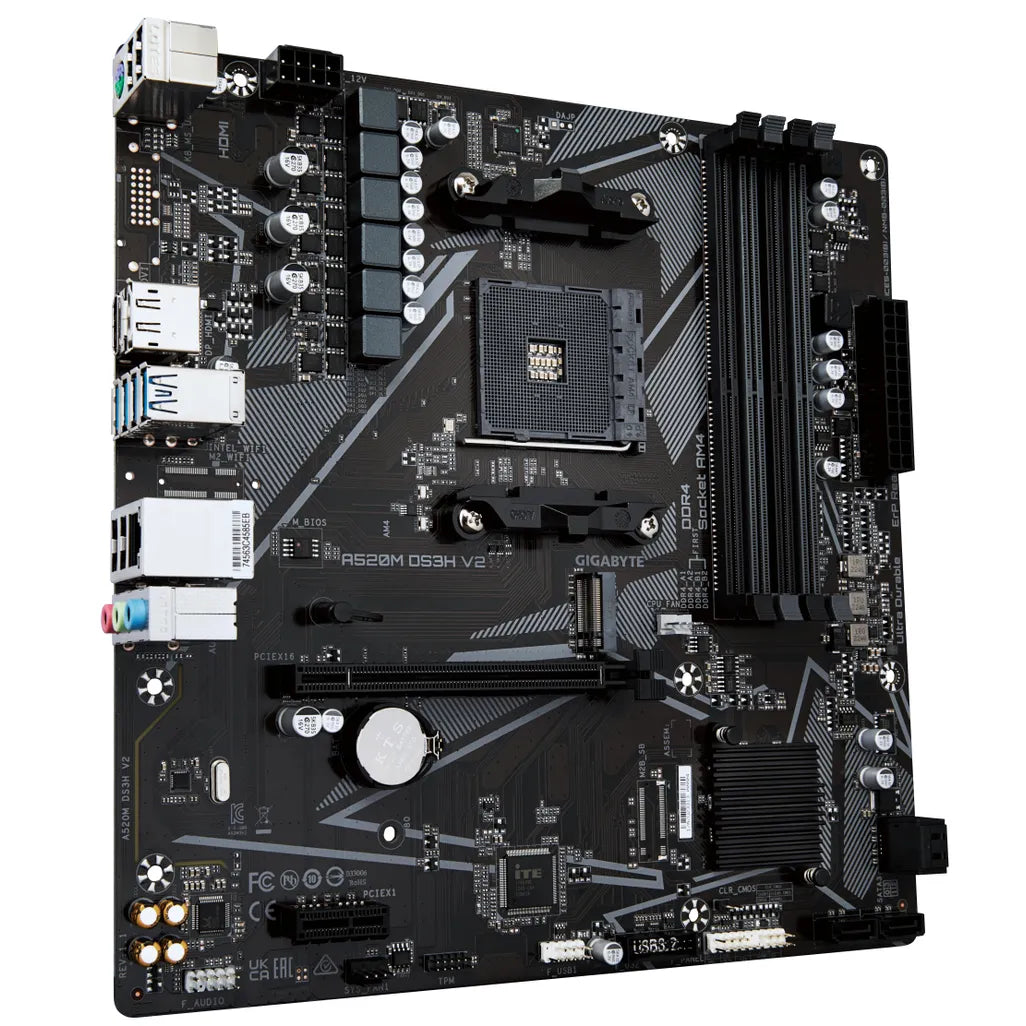

Gigabyte A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. USB connector type: USB Type-A
Processor
| Processor socket |
Socket AM4 |
| Maximum internal memory supported by processor |
128 |
| Processor manufacturer |
AMD |
| Maximum number of SMP processors |
1 |
| Supported processor sockets |
Socket AM4 |
| Compatible processor series |
AMD Ryzen 3 3rd Gen,AMD Ryzen 5 3rd Gen,AMD Ryzen 7 3rd Gen,AMD Ryzen 9 3rd Gen,AMD Ryzen Threadripper 3rd Gen,AMD Ryzen Threadripper Pro 3rd Gen |
Features
| Product colour |
Black |
| Component for |
PC |
| Motherboard form factor |
Micro ATX |
| Power source type |
ATX |
| Motherboard chipset family |
AMD |
| Audio output channels |
7.1 |
| Audio chip |
Realtek ALC887 |
| Windows operating systems supported |
Windows 10 x64 |
| Cooling type |
Active |
| PC health monitoring |
CPU,LED,Power supply,Temperature,Voltage |
Network
| Wi-Fi |
N |
| Ethernet LAN |
Y |
| Ethernet interface type |
Gigabit Ethernet |
Packaging content
| Batteries included |
Y |
| Cables included |
SATA |
| Drivers included |
Y |
| Bundled software |
Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility |
Weight & dimensions
| Width |
244 |
| Depth |
244 |
| Height |
35 |
Memory
| Maximum internal memory |
128 |
| ECC |
Y |
| Supported memory types |
DDR4-SDRAM |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 |
| Supported memory module capacities |
1GB,2GB,4GB,8GB,16GB,32GB |
Graphics
| Discrete graphics support |
Y |
| HDCP |
Y |
| Number of displays supported |
3 |
| Maximum resolution |
5120 x 2880 |
Packaging data
| Package depth |
265 |
| Package height |
54 |
| Package width |
265 |
| Package weight |
810 |
Expansion slots
| PCI Express x16 (Gen 3.x) slots |
1 |
| Number of M.2 (M) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
2 |
Internal I/O
| USB 2.0 connectors |
1 |
| Serial port headers |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Y |
| Power fan connector |
Y |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Y |
| Front panel connector |
Y |
| ATX Power connector (24-pin) |
Y |
| CPU fan connector |
Y |
| 12V power connector |
Y |
| Number of EATX power connectors |
1 |
| Total number of SATA connectors |
4 |

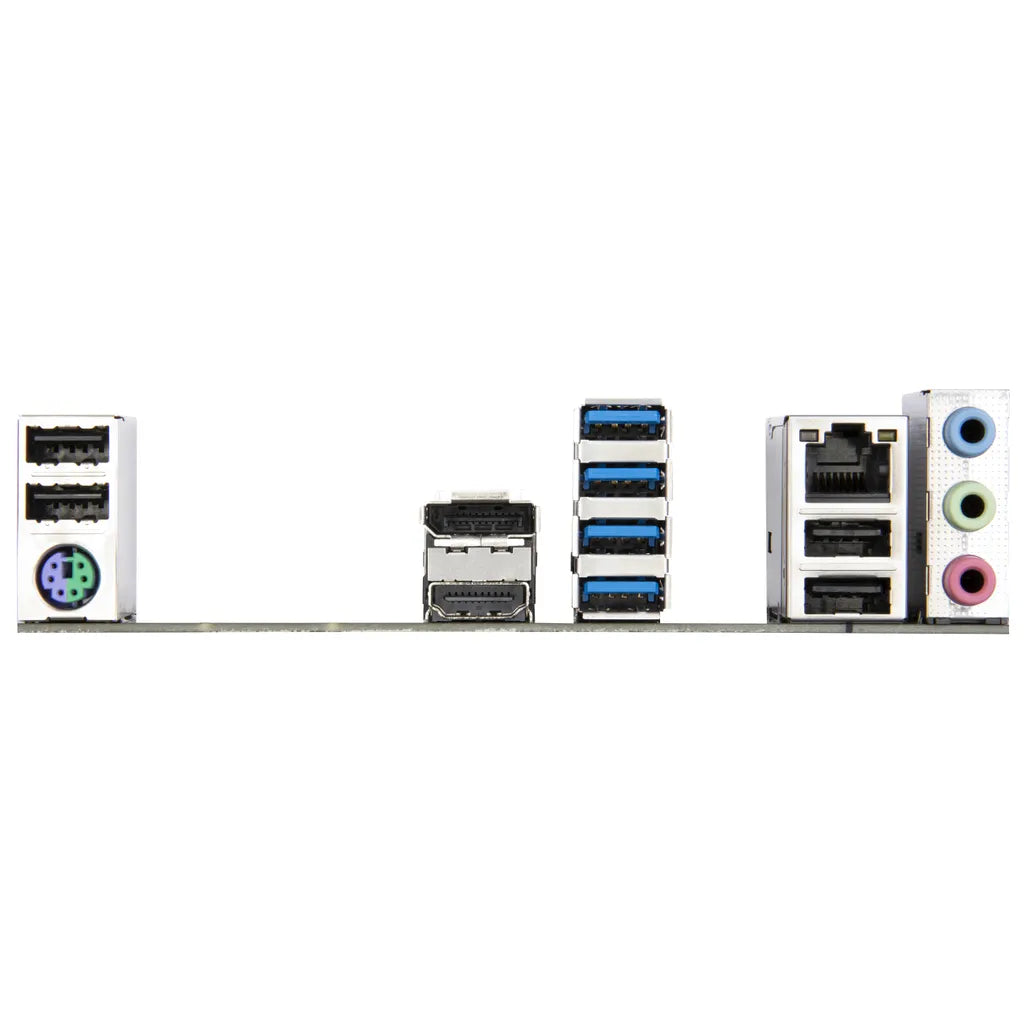

Rear panel I/O ports
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| PS/2 ports quantity |
1 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| Digital audio optical out |
1 |
| DisplayPorts quantity |
1 |
| USB connector type |
USB Type-A |
| HDMI version |
2.1 |
| DisplayPort version |
2.0 |
Storage controllers
| RAID levels |
0,1,10 |
| RAID support |
Y |
| Number of HDDs supported |
4 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2,SATA III |
| Number of storage drives supported |
5 |
BIOS
| BIOS type |
UEFI AMI |
| BIOS memory size |
128 |
| ACPI version |
5.0 |
| Clear CMOS jumper |
Y |
| Desktop Management Interface (DMI) version |
2.7 |
| System management BIOS (SMBIOS) version |
2.7 |
| Clear CMOS button |
Y |
Battery
| Number of battery cells |
1 |
| Lithium weight per battery |
0.07 |
| Battery weight |
3 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Battery type |
CR2032 |
Logistics data
| Country of origin |
China |
| Products per shipping (inner) case |
1 |
