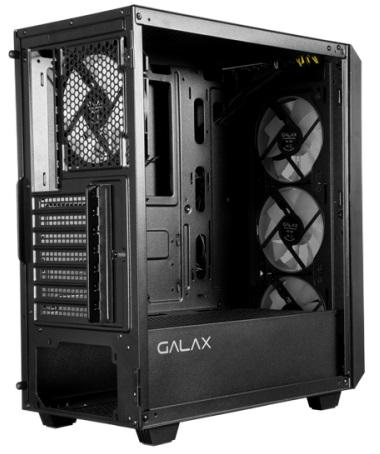

GALAXY REVOLUTION 01 GAMING CASE - G-CG01AGBA4AO-GXLG
GALAX PC Case (REV-01)
ATX, 4 ARGB FAN
MID Tower Case
Form Factor (Midi, Micro, Mini ITX, Full): MIDI
Chassis: SPCC: 0.45mm
PSU Form Factor: Bottom/ATX
M/B Form Factor: ATX,M-ATX
Front Panel: ABS, Mesh
Top Panel: Metal cover
Side Panel
Left: Tempered Glass
Right: Metal cover
External Drive Bay(s)
5.25" (ODD): 0
3.5": 0
Internal Drive Bay(s)
3.5" (HDD): 2
2.5" (SSD): 2
1 x 3.5HDD + 3 x 2.5SSD or 2 x 3.5HDD + 2 x 2.5SSD
I/O
Buttons : 4
USB1.1 Port(s): 0
USB2.0 Port(s): 1
USB3.0 Port(s): 1
USB3.1 Port(s): 0
HD Audio Support: 1
Card Reader (Support): 0
P-Lock: 0
RGB Controller : 1 Rainbow + PWM V2.0
Controller max. fans: 5
RGB Controller max. LED strips : 2
Remote (IR or RF): 0
Cooling Fan Support
Front: 3 x 120mm, 2 x 140mm(Fan optional)
Top: 2 x 120mm,2 x 140mm(Fan optional)
Rear: 1 x 120mm (Fan optional)
Left Side: 0
PSU Cover: 2 x120mm (Fan optional)
Water Cooling Support (Radiator Size)
Front: 120mm, 140mm, 240mm, 280mm, 360mm
Top: 120mm, 140mm, 240mm
Rear: 120mm x 1
Dust Cover: Bottom and top cover with dust filter
Slots: 7
Dimensions
Chassis: mm (L)360 x (W)210 x (H)440
Full Case (inc Fascia): mm (L)424 x (W)215 x (H)460
Carton: mm (L)506 x (W)266 x (H)465
Net Weight (Kg): kg 4.9
Gross Weight (Kg): kg 5.8
VGA Card Length: mm up to 340
CPU Cooler Height: mm 170
Cable Management Depth: mm 22
NO PSU
