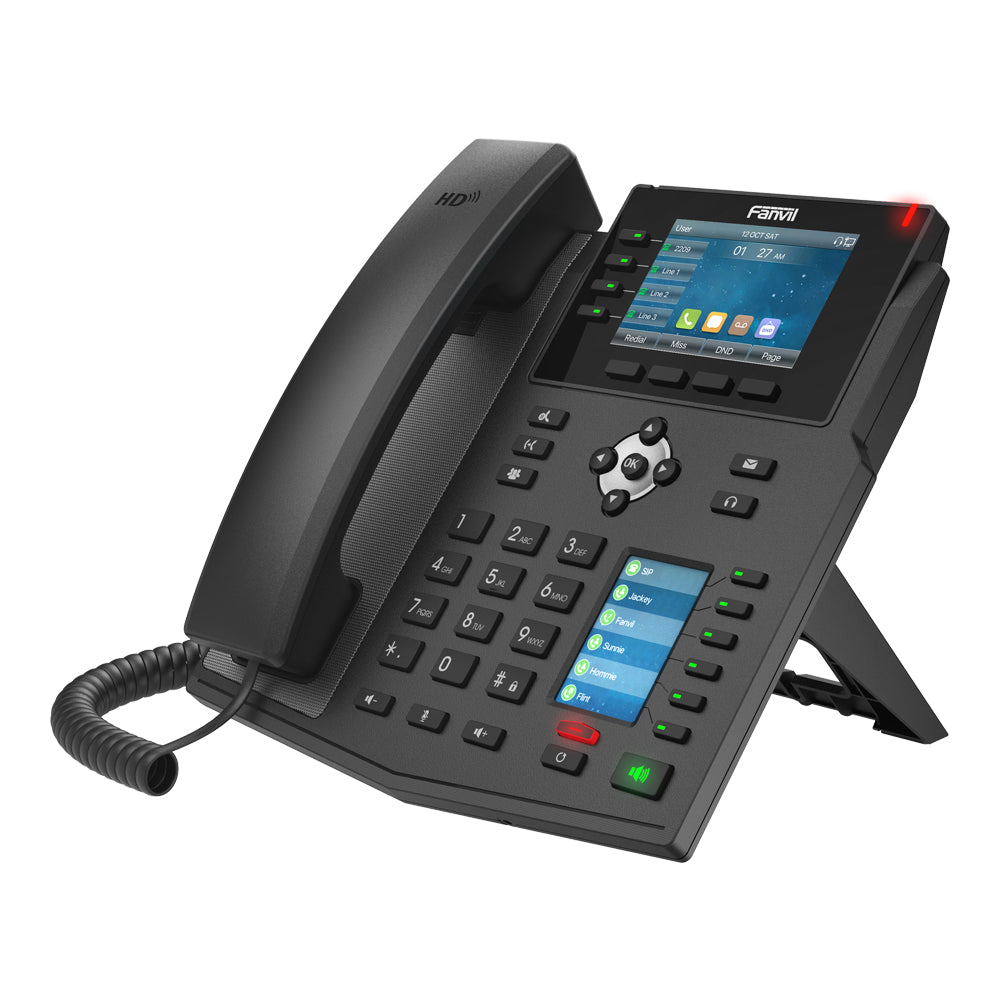

FANVIL X5U HIGH AUDIO EXPERIENCE

Features

• Dual-Screen Design - 3.5-inch main colour display with 2.4-inch DSS screen for enhanced control
• 16× SIP Lines - Supports high call capacity for enterprise environments
• HD Voice Quality - Crystal-clear audio on handset and speakerphone
• 6-Way Audio Conference - Efficient multi-party communication
• Dual Gigabit Ports with PoE - High-speed connectivity and simplified deployment
• Built-in Bluetooth 4.2 - Supports Bluetooth headsets and Wi-Fi dongle connectivity
• EHS Headset Support - Compatible with wireless headsets for hands-free operation

Specifications

Phone Functions

• Phonebook: Local (2,000 Entries), Remote XML/LDAP (2,000 Entries)
• Call Logs: 1,000 Entries (Incoming/Outgoing/Missed)
• DSS-Keys: Programmable with Multi-Page Support (up to 30× DSS-Keys)
• Bluetooth 4.2: Supports Headsets and Mobile Device Pairing
• Wi-Fi Support: via Optional USB Dongle
• USB Port: Supports Call Recording and Storage

Call Functions

• Call Handling: Call Out, Answer, Reject, Hold, Resume
• Call Forwarding: Always, Busy, No Answer
• Call Transfer: Attended and Unattended
• Conferencing: 6-Way Audio Conference
• DND: Do-Not-Disturb with Scheduling
• Speed Dial & Redial: Quick Call Access Features

Audio

• HD Voice: Handset and Speakerphone
• Wideband Codecs: G.722, Opus
• Narrowband Codecs: G.711a/u, G.729, G.726, iLBC
• Echo Cancellation: Full-Duplex AEC
• Noise Processing: VAD, CNG, NR, AGC
• Jitter Buffer: Dynamic Adaptive

Network

• Interfaces: Dual 10/100/1000Mbps RJ45 Ports (Bridged PC Port)
• IP Mode: IPv4 / IPv6 / Dual Stack
• VLAN & QoS: 802.1p/Q, Traffic Prioritisation
• VPN: L2TP, OpenVPN
• Network Access Control: IEEE 802.1x

Protocols

• SIP: SIP v1 (RFC2543), SIP v2 (RFC3261)
• Transport: UDP, TCP, TLS
• Media: RTP, RTCP, SRTP
• Provisioning: DHCP, FTP, TFTP, HTTP, HTTPS
• Time Sync: SNTP

Deployment & Management

• Auto-Provisioning: FTP/TFTP/HTTP/HTTPS/DHCP/TR-069/SIP PnP
• Management: Web Interface, Syslog, Packet Capture
• Configuration: Import/Export, Firmware Upgrade
• Security: HTTPS, AES128/256 Encryption
• Remote Management: TR-069 Support

Physical

• Display: 3.5" Main Screen (480 × 320), 2.4" DSS Screen (240 × 320)
• Keypad: 42-Keys Including DSS, Line and Function Keys
• Ports: 2× RJ45, 2× RJ9, 1× USB2.0, 1× DC Power
• Power: DC 5V 2A or PoE (IEEE 802.3af)
• Installation: Desktop Stand (45° / 50°) or Wall-Mount (Optional Extra)
• Operating Temperature: 0~45°C
