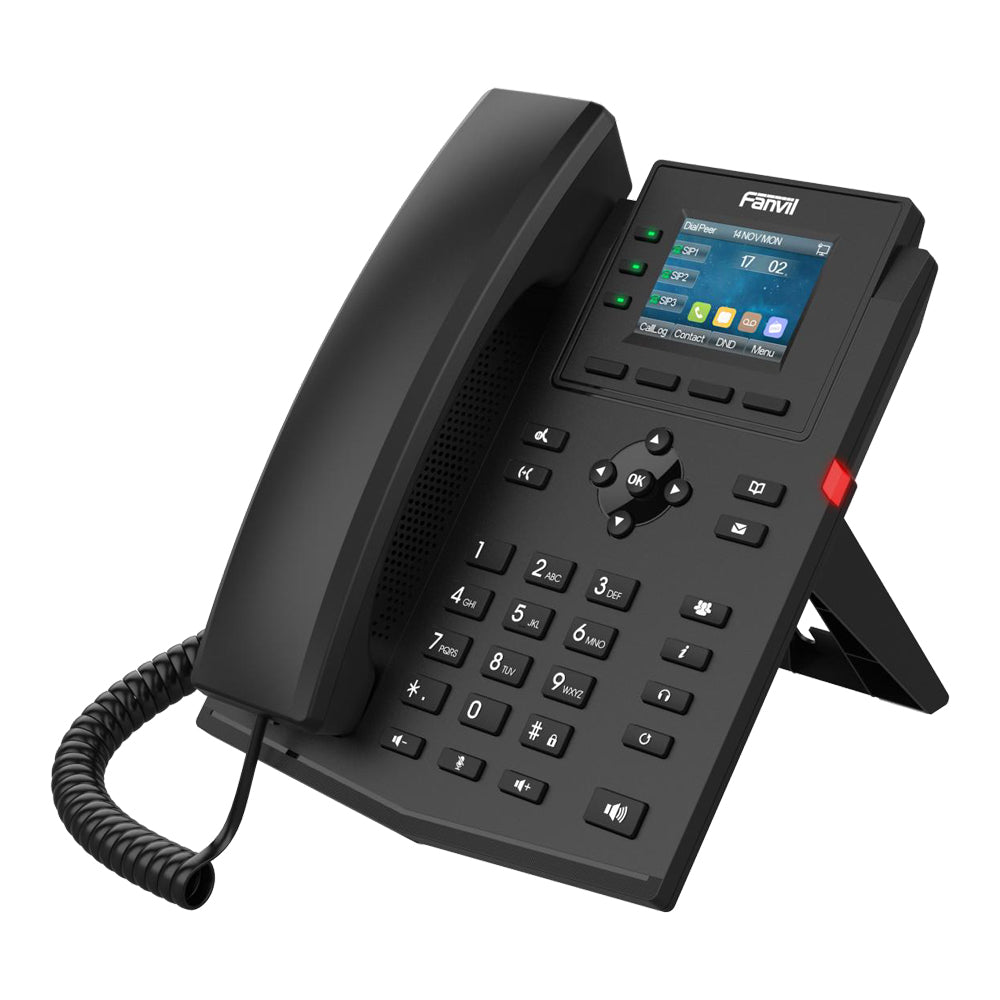

FANVIL X303P ENTERPRISE IP PHONE POE

Features

• 2.4" Colour Display - 320×240 screen for clear and intuitive navigation
• 4× SIP Lines - Flexible call handling for multi-line environments
• HD Voice with Opus Codec - Delivers superior audio clarity and quality
• 6-Way Audio Conferencing - Enables efficient team collaboration
• PoE Support - Simplifies installation with power and data over a single cable
• Dual 10/100Mbps Ports - Includes PC Passthrough for streamlined connectivity
• EHS Headset Support - Compatible with wireless headsets for hands-free use
• Programmable DSS Keys - Quick access to frequently used functions
• Cost-Effective Design - Ideal for entry-level business deployments

Specifications

Generic

• SIP Lines: 4× SIP Lines
• Display: 2.4" Colour Display (320×240)
• HD Voice: Supported
• PoE: Supported
• Operating Modes: Handset, Hands-Free and Headset
• Operating Temperature: 0~45°C

Phone Functions

• Phonebook: Local and Remote (XML, LDAP, up to 1,000 Entries)
• Call Logs: Incoming, Outgoing and Missed Calls
• DSS Keys: Programmable DSS and Soft Keys
• VMWI: Voice Message Waiting Indication
• XML Browser: Supported
• Remote Control: Action URL and Active URI
• Time Sync: Network Time Synchronisation
• UI: Customisable Interface and Ringtones

Call Functions

• Call Functions: Call, Answer, Reject, Hold, Resume, Waiting
• Call Handling: Forward, Transfer (Attended and Unattended), Parking and Pickup
• Conferencing: 6-Way Audio Conferencing
• Dialling: Speed Dial and Redial
• DND: Do Not Disturb Supported
• Intercom: Intercom and Multicast
• Caller ID: Supported with Anonymous Call Handling

Audio

• Audio: HD Audio with Full-Duplex Speakerphone
• Audio Codecs: G.722, Opus, G.711, G.729, G.726, iLBC
• Audio Features: AEC, Noise Reduction, AGC, VAD, PLC
• Jitter Buffer: Dynamic Adaptive
• DTMF: RFC2833 and SIP INFO

Network

• Network Ports: Dual 10/100 Mbps Ethernet with PC Passthrough
• IP Support: IPv4 and IPv6
• IP Mode: Static IP, DHCP, PPPoE
• VLAN: Supported
• VPN: L2TP and OpenVPN
• QoS: QoS and 802.1x Access Control
• Redundancy: DNS-SRV and Redundant Server Support

Protocols

• Protocols: SIP v1/v2 (UDP, TCP, TLS), RTP, RTCP, SRTP
• Network Services: STUN, DHCP, SNTP
• Management Protocols: HTTP, HTTPS, FTP, TFTP, TR-069
• Security: 802.1p, 802.1Q, 802.1x, AES128, AES256

Deployment And Management

• Provisioning: Auto-Provisioning via FTP, TFTP, HTTP, HTTPS, TR-069, DHCP
• Management: Web Interface, Configuration Import and Export
• Maintenance: Firmware Upgrade, Syslog and Diagnostics
• Tools: Web-Based Packet Capture, Phonebook Import and Export

Physical

• Display: 2.4" Colour LCD
• Keypad: 36-Key with DSS and Line Keys (LED Indicators)
• Ports: 2× RJ45 (Network and PC), RJ9 (Handset and Headset)
• Power: PoE or DC Adapter (Optional Extra)
• Power Consumption: up to ~2.09W (PoE)
