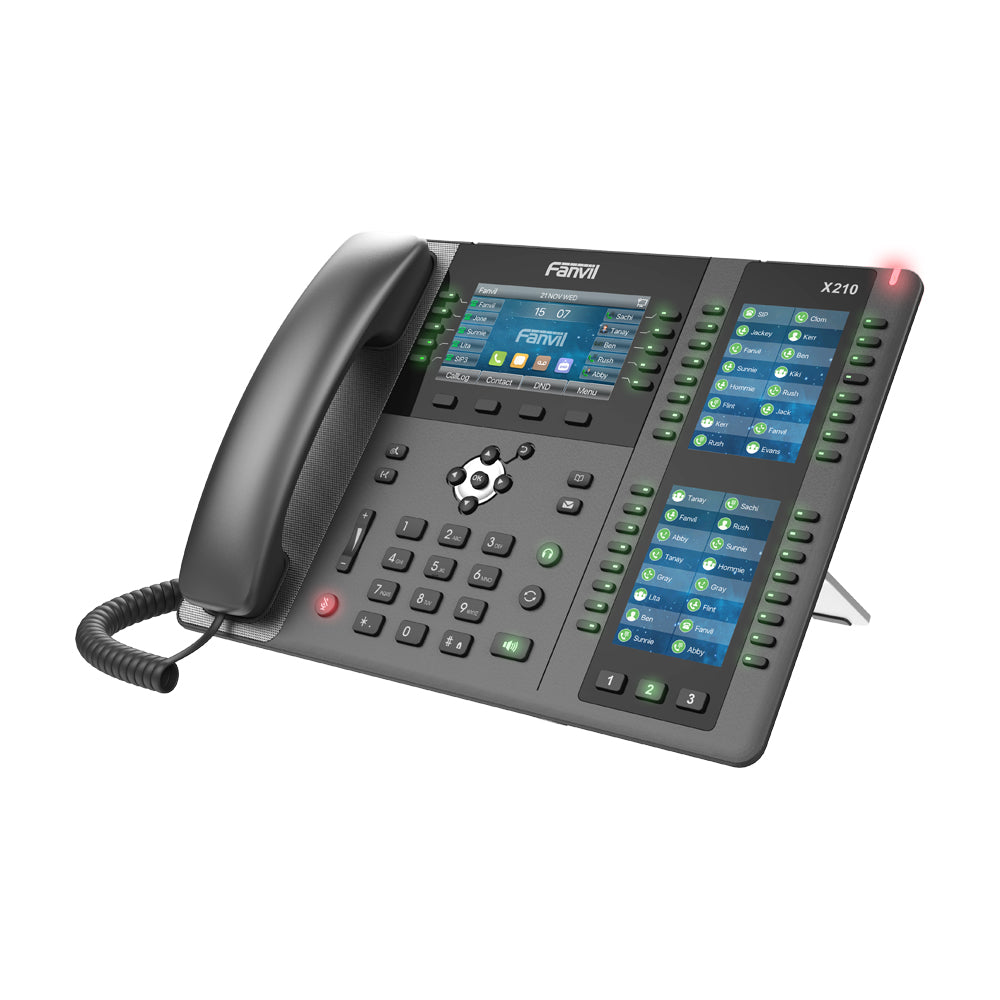

FANVIL X210 HIGH-END ENTERPRISE IP PHONE 106 DSS

Features

• 20× SIP Lines - Handles high call volumes for enterprise environments
• Triple Display Design - 4.3" Main screen with dual 3.5" DSS displays for enhanced usability
• DSS Key Expansion - Supports up to 106× DSS keys for rapid call control and shortcuts
• HD Audio - Crystal-clear sound on handset and speakerphone
• Built-in Bluetooth - Connect wireless headsets and mobile devices easily
• Optional Wi-Fi Connectivity - Supports Wi-Fi via USB dongle for flexible deployment
• 6-Way Audio Conference - Enables efficient team collaboration
• Video Call Support - H.264 decoding for video intercom and door phone integration
• Dual Gigabit Ports with PoE - High-speed networking with simplified power delivery

Specifications

Phone Functions

• Phonebook: Local (2000 entries), Remote (XML/LDAP)
• Call Logs: Missed/Incoming/Outgoing (up to 1000 Entries)
• DSS Keys: Programmable with Custom Icons and LED Indicators
• Bluetooth: Built-in Bluetooth 4.2 for Headsets and Mobile Pairing
• Wi-Fi: Supported via USB Wi-Fi Dongle
• Hot Desking: Supported for Shared Workspaces
• Customisation: Background, Ringtone, DSS Layout and UI Display
• Provisioning: Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/TR-069
• Management: Web Interface, Configuration Import/Export, Firmware Upgrade

Call Functions

• Call Handling: Answer, Reject, Hold, Resume, Redial
• Call Features: Transfer (Attended/Unattended), Forward, Waiting
• Conference: 6-Way Audio Conferencing
• Caller Features: Caller ID, Anonymous Call, Call Blocking
• DND: Do Not Disturb with Scheduling Support
• Advanced: Call Park, Call Pickup (Server Dependent)
• Speed Dial: Supported with Programmable Keys
• Auto Answer: Supported for Intercom and Paging
• Direct IP Call: Supported Without SIP Proxy

Audio

• HD Voice: HD Handset and Full-Duplex Speakerphone
• Codecs: G.722, Opus, G.711a/u, G.729, iLBC
• Echo Cancellation: Acoustic Echo Cancellation (AEC)
• Noise Reduction: NR, VAD, CNG, AGC
• Sampling Rate: Wideband 16kHz
• Jitter Buffer: Dynamic Adaptive up to 300ms
• Packet Loss Concealment: Supported
• DTMF: In-Band, RFC2833, SIP INFO

Video

• Video Codec: H.264
• Video Calls: Supports Receiving Video Calls
• Resolution Support: up to 1080p
• Integration: Compatible with IP Cameras and SIP Video Door Phones

Network

• Network Ports: Dual Gigabit RJ45 (LAN + PC Passthrough)
• IP Support: IPv4 / IPv6 / Dual Stack
• Protocols: SIP v1/v2, TCP, UDP, TLS, RTP, SRTP
• VPN: L2TP, OpenVPN
• VLAN: Supported (802.1Q)
• QoS: Supported for Voice Prioritisation
• Security: 802.1x Network Access Control
• Provisioning: DHCP, PPPoE, DNS-SRV

Management And Deployment

• Auto Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP Option 66, TR-069
• Web Management: Browser-Based Configuration and Monitoring
• Remote Maintenance: Syslog, Packet Capture, Remote Upgrade
• Configuration: Import/Export and Backup Support
• Firmware: Online and Manual Upgrade Supported
• Security: HTTPS, AES Encryption Support

Physical

• Displays: 4.3" Main Colour Display, 2× 3.5" DSS Colour Displays
• DSS Keys: up to 106× DSS Keys (42× Tri-Colour Physical Keys)
• Keypad: 77× Keys including Soft Keys, Function Keys and Navigation Keys
• Ports: 2× RJ45 (Network + PC), 2× RJ9 (Handset + Headset), 1× USB 2.0
• Connectivity: Bluetooth 4.2, Wi-Fi via USB Dongle
• Power: PoE (IEEE 802.3af) or 5V DC Adapter
• Installation: Desktop Stand with Adjustable Angles (40° / 50°)
• Dimensions: 309 × 226 × 167mm (Adjustable Stand)
• Colour: Dark Grey
