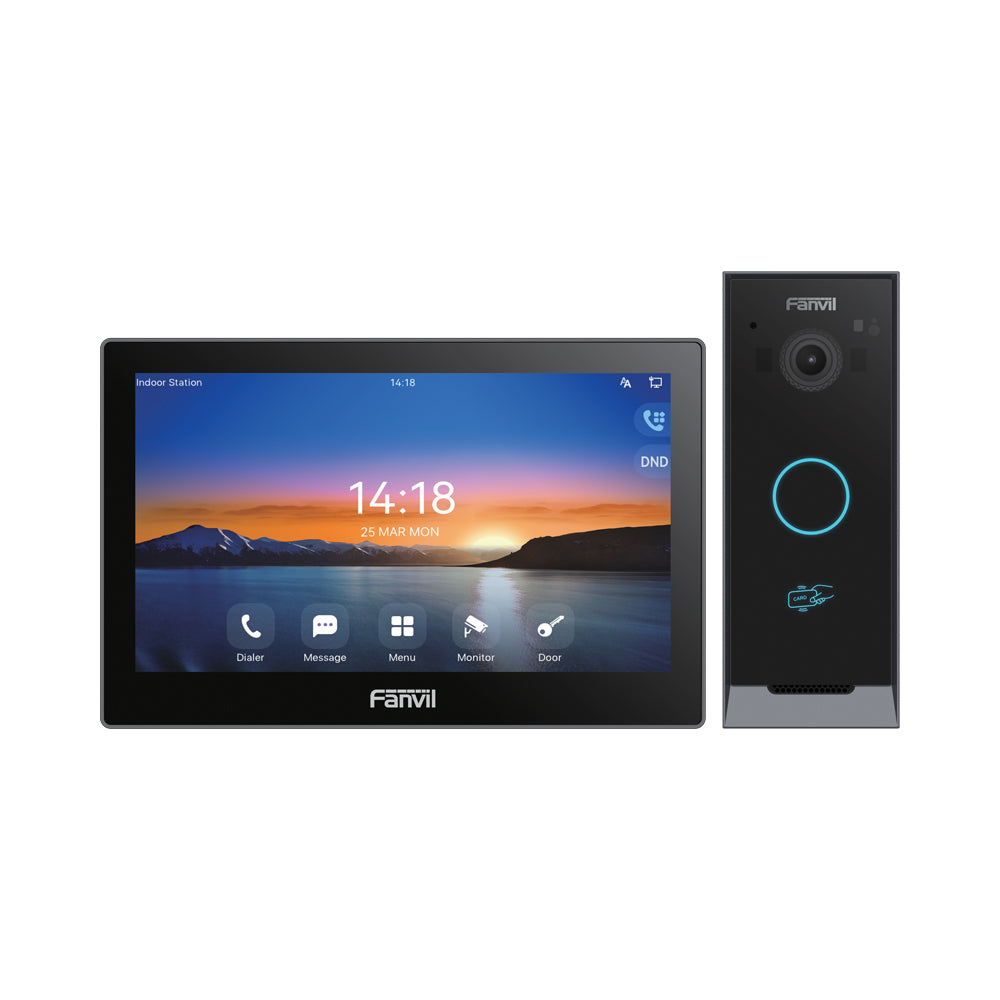

FANVIL VIK-01 VIDEO INTERCOM KIT I60 AND I504W

Features

• Plug and play, quickly deployment
• Flexible door access methods
• Monitor door phone camera footage on both mobile and indoor station
• Remote door opening anytime, anywhere
• Supports one-touch calling
• CCTV integration

Fanvil I504W Specifications

• Screen: 7" 1024×600 Colour Capacitive Touch Screen
• Body: ABS
• Speaker: 2W
• Wi-Fi: 2.4GHz/5.0GHz
• Interface: 8× Alarm Input, 1× Short -Circuit Output, 1× Doorbell input, 1× RS485 (Reserved)
• Network: 10/100Mbps Adaptive
• Power Supply:

Dc12V 1A

PoE: 3.65~6.64W

• Working Temperature: -10~50°C
• Storage Temperature: -40~80°C
• Working Humidity: 10~90%
• Size (L × W × H): 177.38 × 113.99 × 22.5mm
• Installation: Wall-Mounted

Functional Capabilities

• Supported Protocols: SIP 2.0 over UDP/TCP/TLS
• Audio:

Narrowband Codec: G.711A/U, G.723.1, G.726-16 / 24 / 32 /40, G.729AB, iLBC

Broadband Codec: G.722, OPUS

Full-Duplex Hands-Free Calling, Supports Acoustic Echo Cancellation (AEC)

• Video:

Hardware Decoding: H.264, H.265 (Optional)

Video Call Resolutions: QVGA / CIF / VGA / 4CIF / 720p / 1080p

• DTMF:

In-Band

Out-of-Band DTMF (RFC2833)

SIP Info

• Do Not Disturb (DND): Supported and the Time Can Be User-Defined
• Supports:

Viewing Video from Third-Party IP Cameras

Customising Incoming Call Ringtones

Remote Door Unlocking

Sending/Receiving Messages

Fanvil I60 Specifications

• Keyboard: 1× Speed-Dial Button
• Body: ABS and PC
• Colours:

Panel: Black

Housing: Gunmetal

• Sensor: 1/2.9", CMOS
• Camera: 2MP, Supports Infrared
• Viewing Angle: 140° (FOV), 100° (Horizontal), 57° (Vertical)
• Output Video: H.264 (Baseline, Main Profile)
• Light Sensitivity: 0.1 Lux
• Card Storage: 1,0000
• Power Consumption:

PoE: 1.63~6.93W

Adapter: 1.51~6.16W

• Power Supply:

Dc12V 1A

PoE 802.3af Class 3

• Working Temperature: -40~70°C
• Storage Temperature: -40~70°C
• Dimensions: 50 × 130 × 30mm
• IP Level: IP65
• Installation:

Wall-Mounted

Rain Cover

Functional Capabilities

• Supported: SIP 2.0 over UDP/TCP/TLS
• Lock Opening:

IC Card

By DTMF Code

Remote Door Opening

Ble

• Interface:

Wiegand Input / Output

Short-Circuit Input / Output

• Supported Wiegand: 26, 34bit
• Supported ONVIF: Profile S
• Supported Standards:

IC Card

Dtmf

Indoor Switch

BLE Cards 13.56 MHz

• Talking Mode: Full-Duplex (High-Definition Audio)
• Supports:

Built-In Relay

Motion Detection

Tamper Alarm

TF Card

Open API

Shipping Dimensions

• Length: 29.3 cm
• Width: 17.6 cm
• Height: 6.5 cm
• Weight: 0.80 kg
