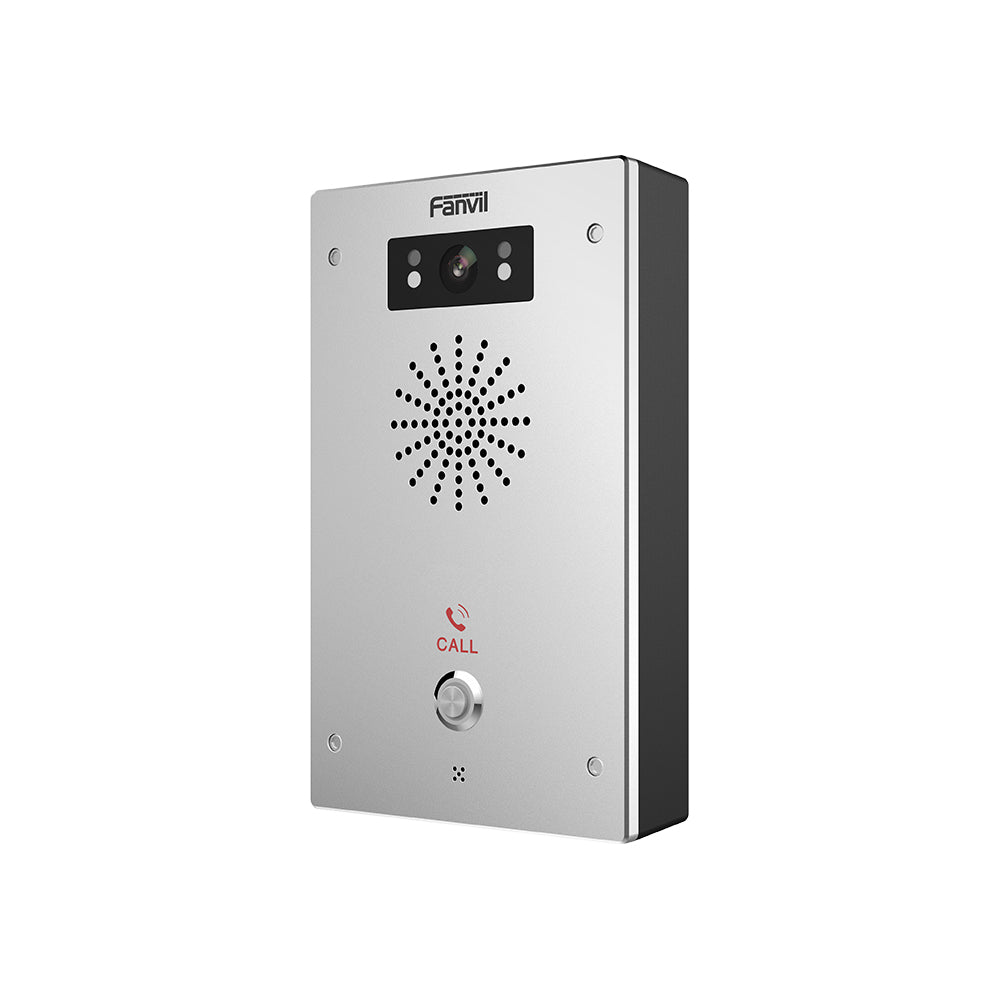

FANVIL I16SV OUTDOOR IP65 IK10 SIP 2MP VIDEO INTERCOM

Features

• 2MP HD Camera with Night Vision - Infrared support enables clear 24/7 video monitoring
• HD Audio Performance - 3W speaker with acoustic echo cancellation ensures clear communication
• IP65 and IK10 Protection - Weatherproof and vandal-resistant design for harsh outdoor environments
• PoE Support - IEEE 802.3af simplifies installation with power and data over a single cable
• Dual SIP Line Support - Flexible VoIP integration for modern communication systems
• Access Control Integration - Built-in relay I/O supports door locks, alarms and sensors
• Broadcasting and Storage - Supports multicast, MP3 broadcasting and TF card for local storage
• Advanced Network Security - VPN, VLAN and IPv6 support for secure deployment
• Wide Platform Compatibility - Works with Asterisk, 3CX, Broadsoft, Avaya and more
• Durable Wall-Mount Design - Aluminium housing ensures long-term reliability in outdoor installations

Specifications

Generic

• SIP Lines: 2× SIP Lines
• HD Voice: Full-Duplex Speakerphone with Acoustic Echo Cancellation
• PoE: IEEE 802.3af Class 3
• Video Intercom: Supported
• MP3 Broadcasting: Supported
• DSS Key: Programmable with LED Indicator
• Speaker: Built-In Active Speaker
• Storage: TF Card Slot for Audio Playback
• Alarm: Tamper Alarm Supported

Call Functions

• Call Functions: Call, Answer, Reject, Call Waiting, Speed Dial, Anonymous Call
• Intercom: Intercom and Multicast Calling Supported

Audio

• Audio Codecs: G.722, Opus, G.711A/U, G.729, iLBC, G.726
• DTMF: In-Band, RFC2833, SIP INFO

Video

• Camera: 2MP CMOS
• Video Resolution: 1920 × 1080, 1280 × 720
• Video Compression: H.264
• Night Vision: Infrared Support
• Field of View: Up to 126° Diagonal

Network

• Network: 10/100Mbps Ethernet
• IP Support: IPv4 and IPv6
• IP Mode: Static IP, DHCP, PPPoE
• VLAN: Supported
• VPN: L2TP, OpenVPN

Protocols

• Protocols: SIP v1/v2 (UDP, TCP, TLS), RTP, RTCP, SRTP, STUN, DHCP, SNTP, HTTP, HTTPS, FTP, TFTP, TR-069

Deployment And Management

• Management: Auto-Provisioning (FTP, TFTP, HTTP, HTTPS, DHCP, TR-069), Web Management, Firmware Upgrade, Syslog, Diagnostics

Physical

• Protection Rating: IP65
• Impact Rating: IK10
• Housing: Aluminium-Alloy
• Installation: Wall-Mount
• Operating Temperature: -30~60°C
• Dimensions: 195 × 120 × 40mm
• Interface: 1× RJ45 (PoE)
• I/O Ports: Relay Input and Output for Access Control
• Audio Output: Line-Out and Recording Output
