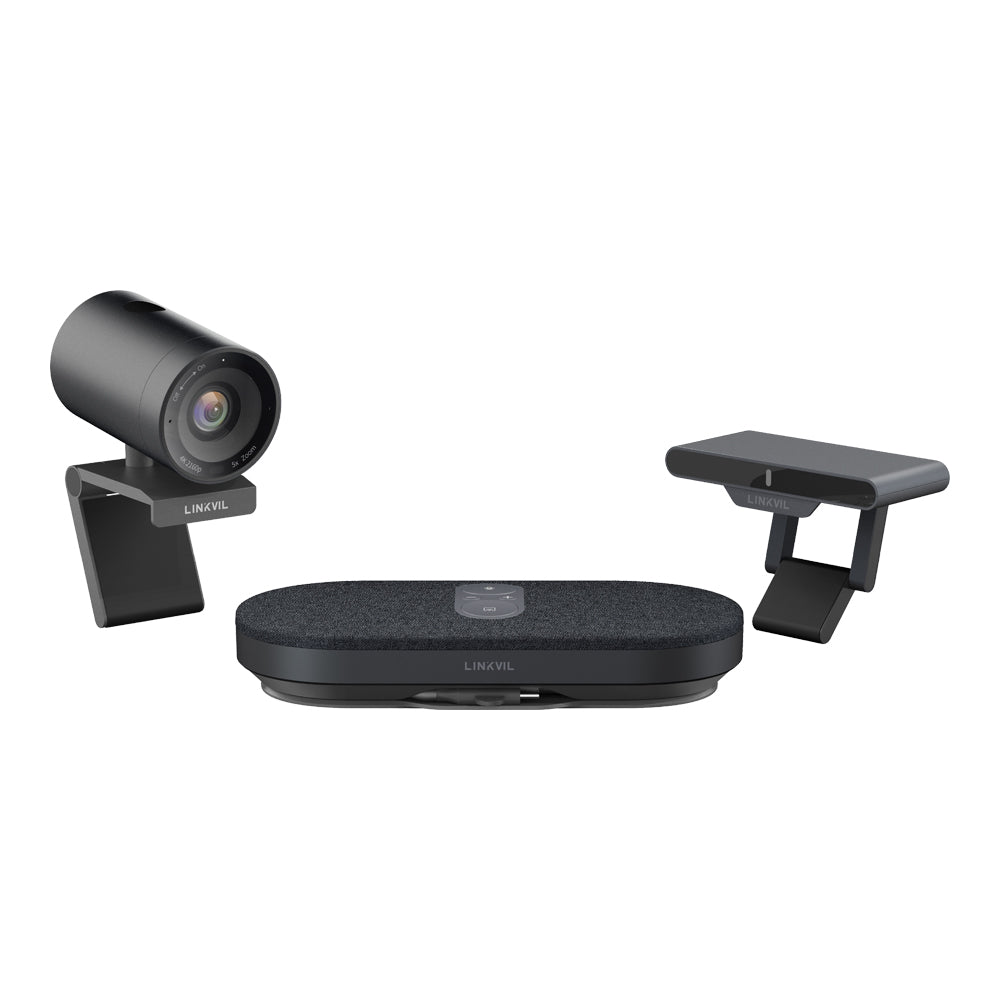

FANVIL CA400 ALL-IN-ONE WIRELESS CONFERENCE SOLUTION - SPEAKERPHONE, 4K CAMERA AND RECEIVER HUB

Features

• Wireless 4K Screen-Sharing for Real-time Presentations - Eliminate tedious steps - with a simple press, users can effortlessly enjoy a 4K TV display, making the entire experience smooth and productive.
• All-in-One Design. Combine Audio, Video and Screen Sharing Together - The innovative and convenient all-in-one design promotes efficient meetings. With comprehensive BYOD support, it is easy to connect the speaker to a laptop using a USB Type-C cable.
• Clutter-Free Collaborative Spaces and Access Camera Wirelessly - Effortlessly stream 1080p video from your laptop wirelessly, simplifying and organising your office space. Achieve a one-stop setup in three easy steps and bid farewell to tangled cables.
• 8-Array Microphone and 3W Enhanced Speaker to Present Superior Audio Quality - Driven by advanced technologies (AEC, ANS, AGC, and vocal enhancement), automatically balances voices, suppresses noise and eliminates echoes, ensuring a stable and natural sound.
• Camera with Auto-Framing, Delivering Detailed Images - With a wide-angle coverage of 118.5°, a 5× digital zoom and auto-framing technology, the camera will automatically zoom in / out to frame all participants, users can also adjust the direction and focal length with an OSD remote control.

Specifications

Screen Sharing

• Max. Output Resolution: 1920×1080 @30fps

Microphone (Speakerphone)

• Type: 8× MEMS Microphones with 360° Pickup
• Pick-up Range: up to 4m
• Signal to Noise Ratio (SNR): 64.5dB(A)
• Sensitivity: -26dBFS @1kHz (0dB=1V/Pa)
• Acoustic Overload Point: 119dB SPL @1kHz
• Frequency Range: 20Hz~10kHz
• Audio Processing: Beamforming, Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS), Automatic Gain Control (AGC), Full-Duplex

Speaker

• Power: 3W (4Ω)
• Driver Size: 50mm
• Sensitivity: 85dB ±3dB @1m
• Signal to Noise Ratio (SNR): 50dB
• Frequency Range: 200Hz~10kHz
• Max. Sound Pressure Level: 85dB SPL @1m
• Background Noise: <30dB
• Total Harmonic Distortion: ≤5%

Usb Camera

• Sensor: Sony IMX415 (1/2.8")
• Max. Resolution: 3840×2160 @30Hz
• Output Formats: MJPEG / H.264 / H.265 / YUV / NV12
• Supported Resolutions: 4K, 1080p, 720p and Lower Resolutions
• Field of View: DFOV 118.5° / HFOV 109.9° / VFOV 74.6°
• Auto Framing: Supported
• Aperture: F2.5
• Zoom: 5× Digital Zoom
• USB Output: USB3.0: 4K @60Hz, USB2.0: 1080p @30Hz
• Security: Manual Camera Lens Cover

Microphone (Camera Unit)

• Type: 2× Electret Microphones
• Pick-up Range: up to 4m
• Signal to Noise Ratio (SNR): 65dB(A)
• Sensitivity: 94dB SPL @1kHz
• Audio Processing: Duplex, ANS, AGC
• Mounting: Magnetic Attachment

Receiver (Wireless)

• Protocol: 802.11 a/n/ac
• Transmission Protocol: UDP
• Transmission Distance: up to 10m
• Frequency Bands:
• 5180–5320MHz (5.0GHz), Max. 20dBm
• 5500–5700MHz (5.0GHz), Max. 20dBm

Camera Streaming

• Max. Output Resolution: 1920×1080 @30fps
• Camera Type: UVC
• Video Format: H.264
• Mounting: Magnetic Attachment

Physical Specifications

• Dimensions:
• Speakerphone: 180 × 81 × 32mm
• USB Camera: 80 × 75 × 53mm
• Receiver: 102 × 45 × 20mm
• Weight:
• Speakerphone: 385g
• USB Camera: 210g
• Receiver: 70g
• Operating Temperature: 0~40°C
• Humidity: 10~90% RH

I/O Interface

• Speakerphone: USB Type-C (PD, DisplayPort Alt Mode)
• Camera: USB Type-C
• Receiver: 1× HDMI, 1× USB Type-C (PD), 1× USB3.0 Type-A

Operating System

• Windows 10 / 11
• macOS

Shipping Dimensions

• Length: 23.3 cm
• Width: 18.8 cm
• Height: 11 cm
• Weight: 1.67 kg
