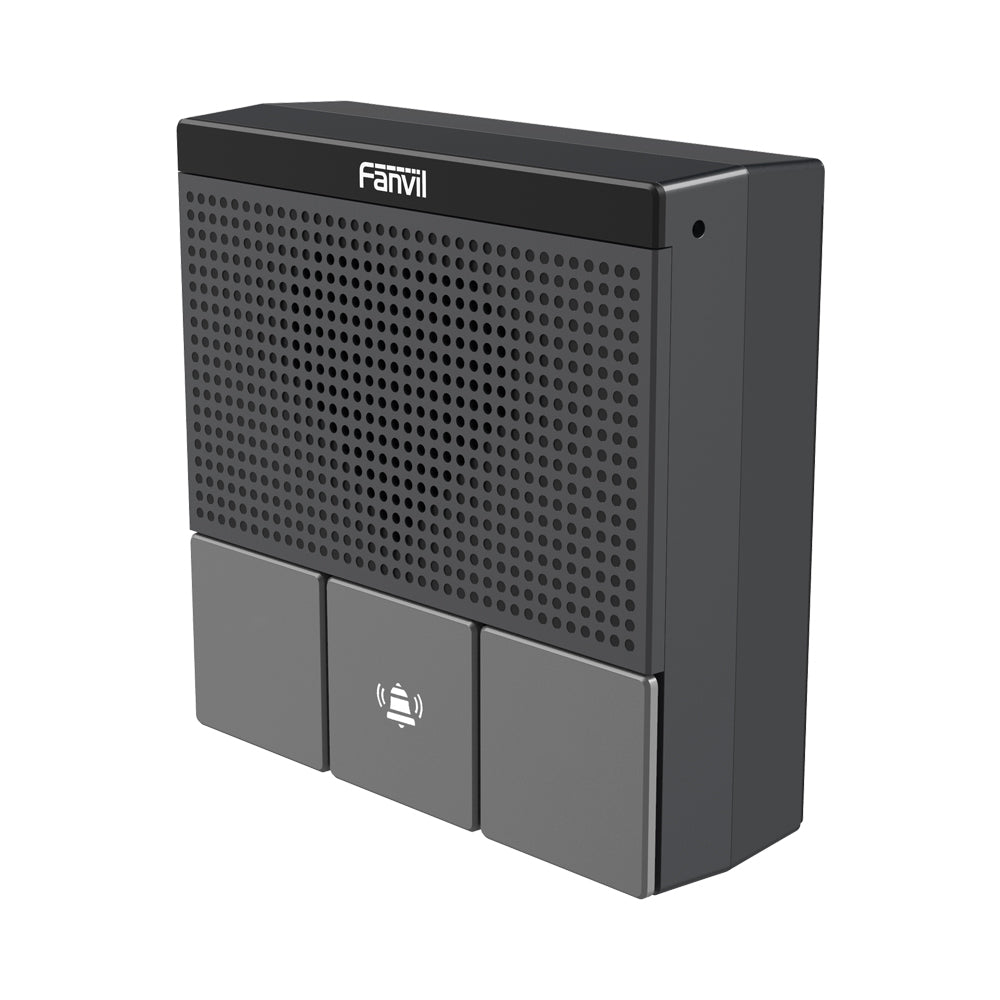

FANVIL A10 WIFI SIP INTERCOM

Features

• Supports 2 SIP accounts and includes 3 detachable function buttons for flexible configuration
• Built‑in HD audio support (wideband codecs such as G.722 and Opus) with Acoustic Echo Canceller (AEC) for clear intercom communication
• Network interface: 10/100 Mbps Ethernet. For the “W" variant (A10W/A10W‑E) there is also built‑in dual‑band Wi-Fi (2.4GHz & 5GHz)
• PoE support (Power over Ethernet) or external DC power option - simplifies installation
• IP54 rated - dust and splash‑resistant, suitable for indoor (and light protected) use
• Additional features: Supports auto‑answer, comes with short‑circuit input/output and relay interface (for external devices such as alarms/locks)

Specifications

• Audio Codecs
• Narrowband: G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband: G.722, Opus
• Networking & Security: IPv4/IPv6 support, DHCP/Static/PPPoE configurations
• Wi-Fi Encryption & VPN support (for Wi-Fi models): WPA/WPA2‑PSK, 802.1X EAP, L2TP/OpenVPN

Physical / Environmental

• Power consumption: for the Wi-Fi variant approx 1.42W – 2.35W (adapter) or 1.99W – 3.05W (PoE) depending on model
• Operating temperature: −10 °C to 50 °C
• Body material: ABS housing
• Installation styles supported: Wall mountable and standard 86‑box embedded
