Fanvil X5U Enterprise IP Phone with 3.5" Main Colour Screen and 2.4" Extended Colour Screen
Professional Communication. Smarter Control.

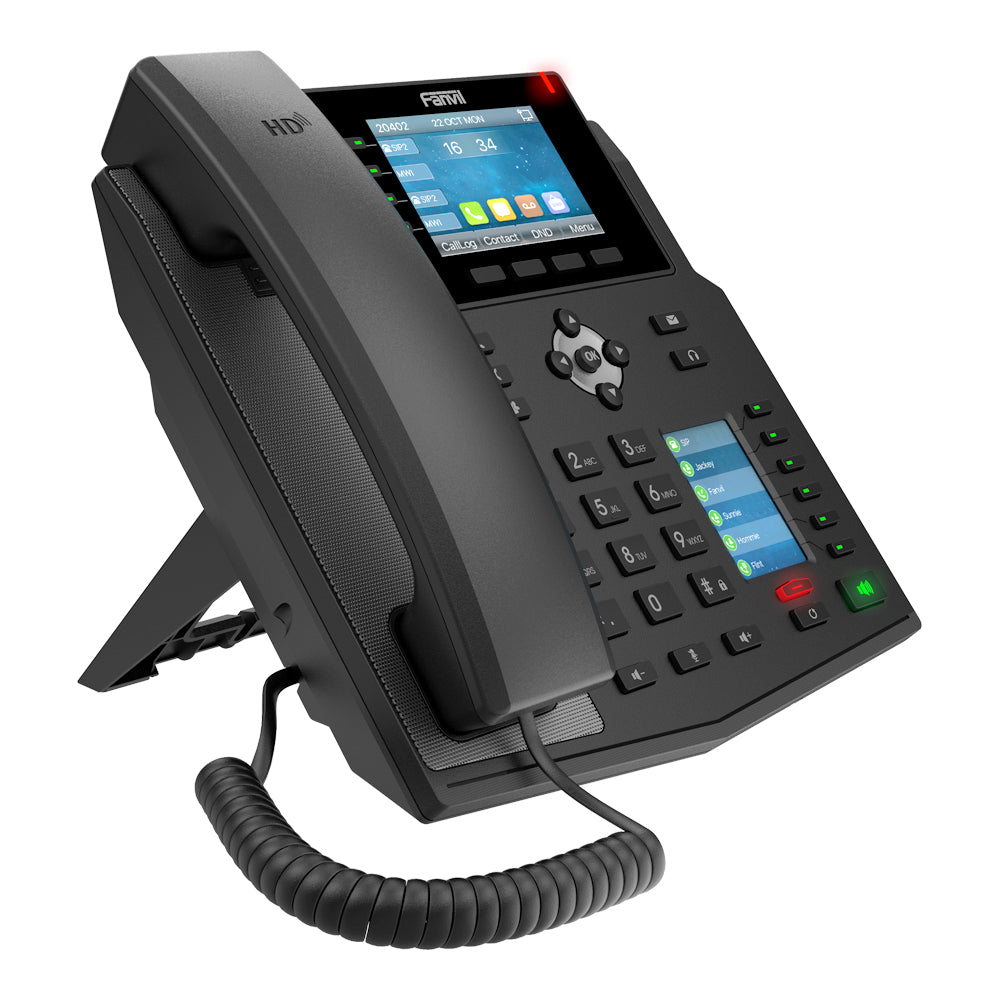

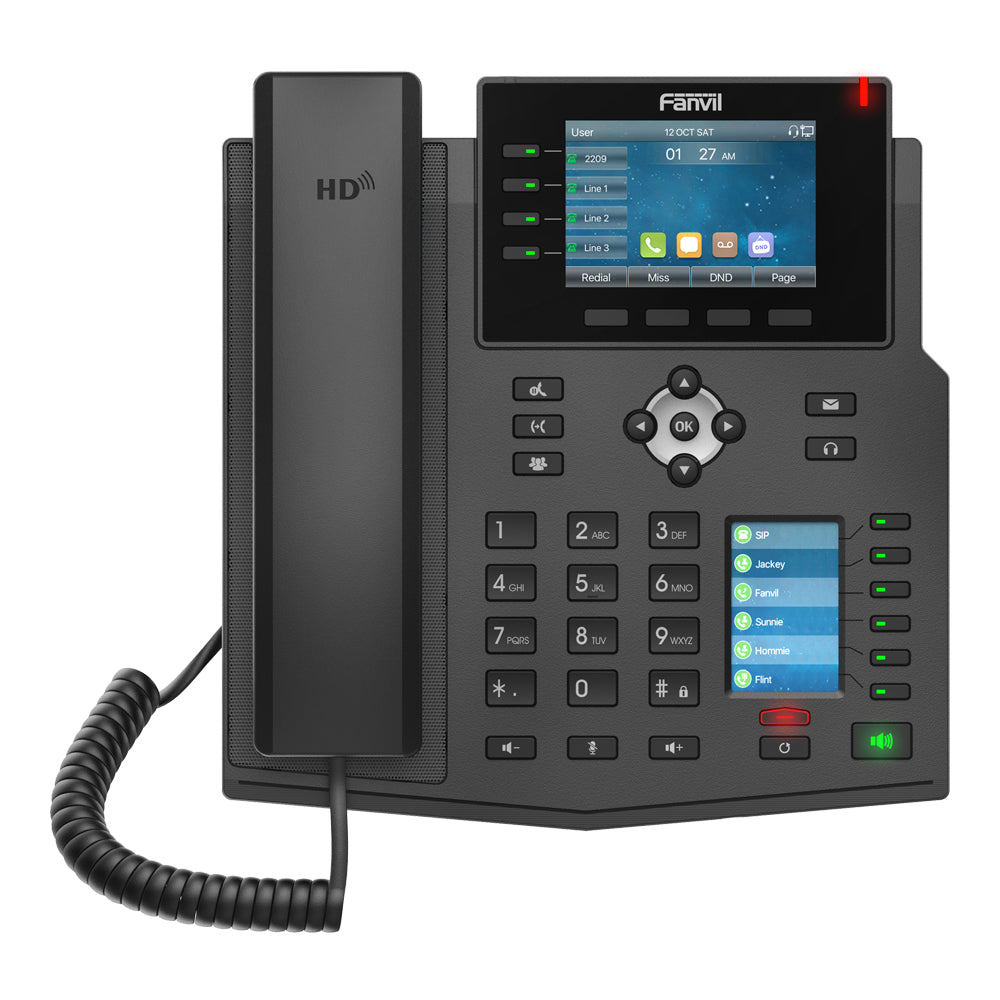

The Fanvil X5U Enterprise IP Phone delivers a powerful dual-screen design with a 3.5-inch colour display and DSS screen for enhanced productivity. Supporting up to 16× SIP lines, it enables efficient call handling and streamlined business communication. HD voice quality and 6-way audio conferencing ensure clear, professional conversations at all times. Dual Gigabit ports with PoE provide fast, reliable connectivity with Bluetooth and optional Wi-Fi for flexibility. Programmable DSS keys, EHS headset support and an adjustable stand make it ideal for modern office environments.
Features
- Dual-Screen Design - 3.5-inch main colour display with 2.4-inch DSS screen for enhanced control
- 16× SIP Lines - Supports high call capacity for enterprise environments
- HD Voice Quality - Crystal-clear audio on handset and speakerphone
- 6-Way Audio Conference - Efficient multi-party communication
- Dual Gigabit Ports with PoE - High-speed connectivity and simplified deployment
- Built-in Bluetooth 4.2 - Supports Bluetooth headsets and Wi-Fi dongle connectivity
- EHS Headset Support - Compatible with wireless headsets for hands-free operation
Specifications
Phone Functions
- Phonebook: Local (2,000 Entries), Remote XML/LDAP (2,000 Entries)
- Call Logs: 1,000 Entries (Incoming/Outgoing/Missed)
- DSS-Keys: Programmable with Multi-Page Support (up to 30× DSS-Keys)
- Bluetooth 4.2: Supports Headsets and Mobile Device Pairing
- Wi-Fi Support: via Optional USB Dongle
- USB Port: Supports Call Recording and Storage
Call Functions
- Call Handling: Call Out, Answer, Reject, Hold, Resume
- Call Forwarding: Always, Busy, No Answer
- Call Transfer: Attended and Unattended
- Conferencing: 6-Way Audio Conference
- DND: Do-Not-Disturb with Scheduling
- Speed Dial & Redial: Quick Call Access Features
Audio
- HD Voice: Handset and Speakerphone
- Wideband Codecs: G.722, Opus
- Narrowband Codecs: G.711a/u, G.729, G.726, iLBC
- Echo Cancellation: Full-Duplex AEC
- Noise Processing: VAD, CNG, NR, AGC
- Jitter Buffer: Dynamic Adaptive
Network
- Interfaces: Dual 10/100/1000Mbps RJ45 Ports (Bridged PC Port)
- IP Mode: IPv4 / IPv6 / Dual Stack
- VLAN & QoS: 802.1p/Q, Traffic Prioritisation
- VPN: L2TP, OpenVPN
- Network Access Control: IEEE 802.1x
Protocols
- SIP: SIP v1 (RFC2543), SIP v2 (RFC3261)
- Transport: UDP, TCP, TLS
- Media: RTP, RTCP, SRTP
- Provisioning: DHCP, FTP, TFTP, HTTP, HTTPS
- Time Sync: SNTP
Deployment & Management
- Auto-Provisioning: FTP/TFTP/HTTP/HTTPS/DHCP/TR-069/SIP PnP
- Management: Web Interface, Syslog, Packet Capture
- Configuration: Import/Export, Firmware Upgrade
- Security: HTTPS, AES128/256 Encryption
- Remote Management: TR-069 Support
Physical
- Display: 3.5" Main Screen (480 × 320), 2.4" DSS Screen (240 × 320)
- Keypad: 42-Keys Including DSS, Line and Function Keys

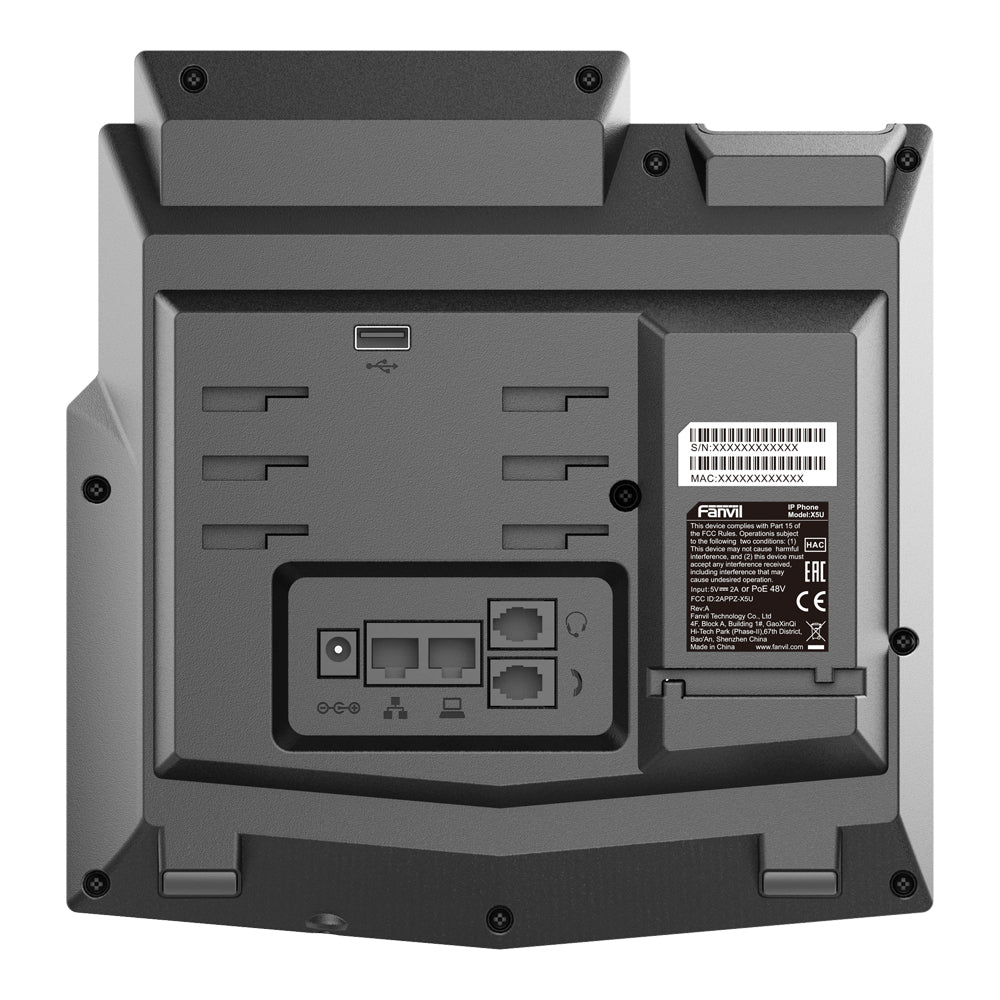

- Ports: 2× RJ45, 2× RJ9, 1× USB2.0, 1× DC Power
- Power: DC 5V 2A or PoE (IEEE 802.3af)

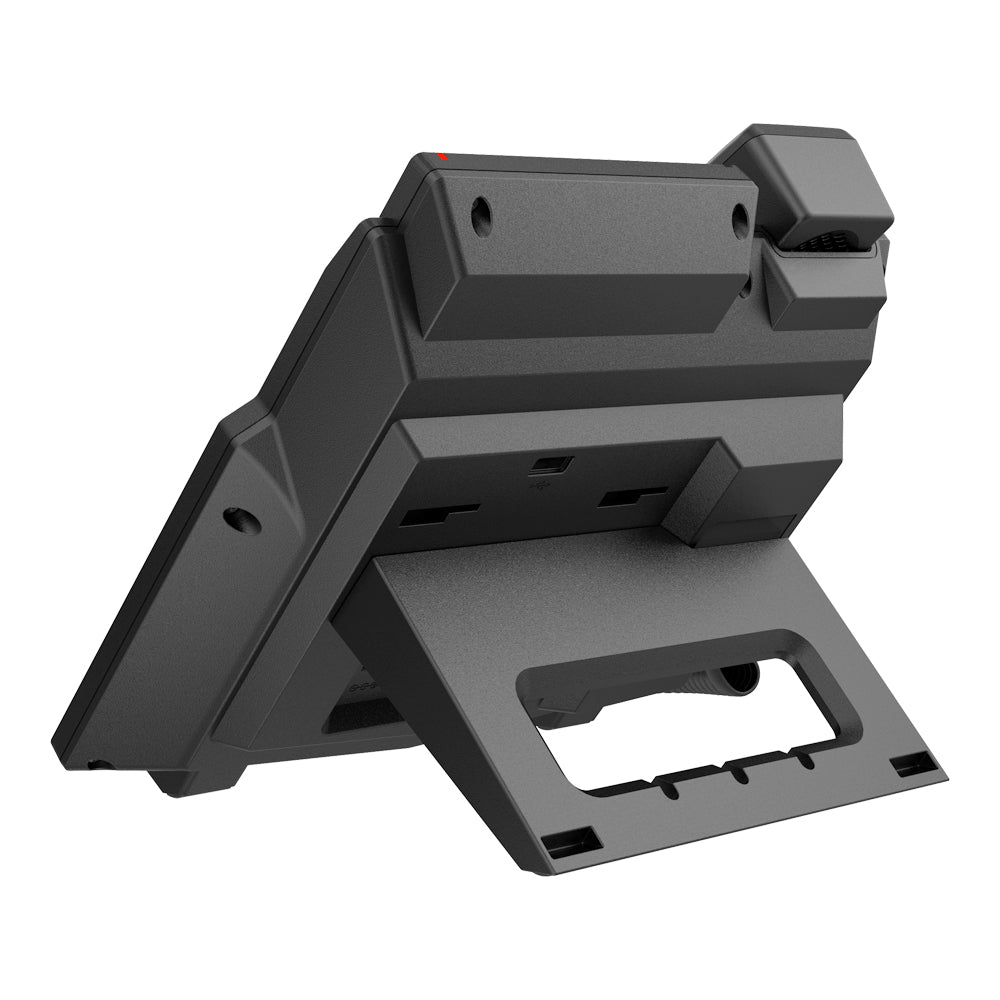

- Installation: Desktop Stand (45° / 50°) or Wall-Mount (Optional Extra)
- Operating Temperature: 0~45°C
