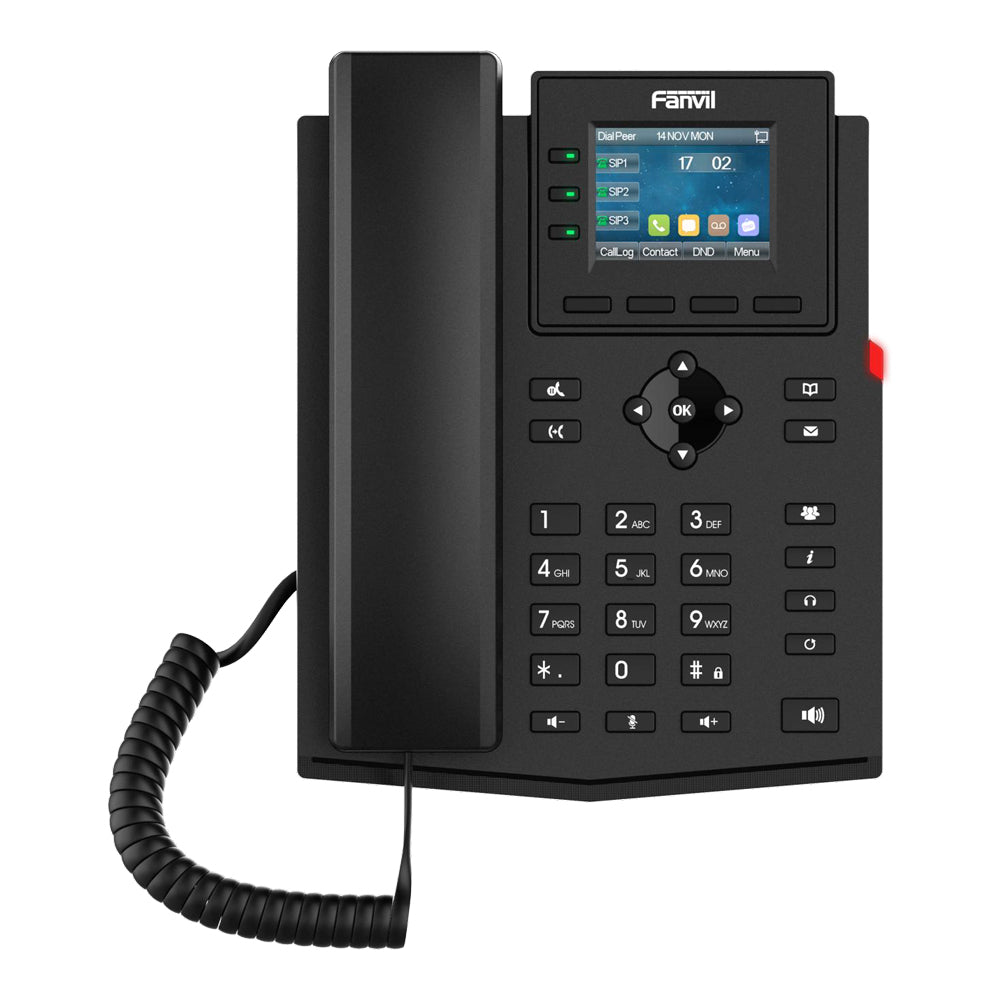

Fanvil X303P Enterprise IP Phone with PoE
Clear Calls. Smart Value.
The Fanvil X303P Enterprise IP Phone delivers reliable, high-quality business communication in a cost-effective package. Featuring a 2.4-inch colour display, HD voice with Opus support and 4× SIP lines, it’s designed for everyday office use with a smooth, user-friendly experience. With dual network ports and integrated PoE, plus support for 6-way audio conferencing, the X303P provides flexible deployment and efficient collaboration - making it an ideal solution for modern enterprise environments.
Features
- 2.4" Colour Display - 320×240 screen for clear and intuitive navigation
- 4× SIP Lines - Flexible call handling for multi-line environments
- HD Voice with Opus Codec - Delivers superior audio clarity and quality
- 6-Way Audio Conferencing - Enables efficient team collaboration
- PoE Support - Simplifies installation with power and data over a single cable
- Dual 10/100Mbps Ports - Includes PC Passthrough for streamlined connectivity
- EHS Headset Support - Compatible with wireless headsets for hands-free use
- Programmable DSS Keys - Quick access to frequently used functions
- Cost-Effective Design - Ideal for entry-level business deployments
Specifications
Generic
- SIP Lines: 4× SIP Lines
- Display: 2.4" Colour Display (320×240)
- HD Voice: Supported
- PoE: Supported
- Operating Modes: Handset, Hands-Free and Headset
- Operating Temperature: 0~45°C
Phone Functions
- Phonebook: Local and Remote (XML, LDAP, up to 1,000 Entries)
- Call Logs: Incoming, Outgoing and Missed Calls
- DSS Keys: Programmable DSS and Soft Keys
- VMWI: Voice Message Waiting Indication
- XML Browser: Supported
- Remote Control: Action URL and Active URI
- Time Sync: Network Time Synchronisation
- UI: Customisable Interface and Ringtones
Call Functions
- Call Functions: Call, Answer, Reject, Hold, Resume, Waiting
- Call Handling: Forward, Transfer (Attended and Unattended), Parking and Pickup
- Conferencing: 6-Way Audio Conferencing
- Dialling: Speed Dial and Redial
- DND: Do Not Disturb Supported
- Intercom: Intercom and Multicast
- Caller ID: Supported with Anonymous Call Handling
Audio
- Audio: HD Audio with Full-Duplex Speakerphone
- Audio Codecs: G.722, Opus, G.711, G.729, G.726, iLBC
- Audio Features: AEC, Noise Reduction, AGC, VAD, PLC
- Jitter Buffer: Dynamic Adaptive
- DTMF: RFC2833 and SIP INFO
Network
- Network Ports: Dual 10/100 Mbps Ethernet with PC Passthrough
- IP Support: IPv4 and IPv6
- IP Mode: Static IP, DHCP, PPPoE
- VLAN: Supported
- VPN: L2TP and OpenVPN
- QoS: QoS and 802.1x Access Control
- Redundancy: DNS-SRV and Redundant Server Support
Protocols
- Protocols: SIP v1/v2 (UDP, TCP, TLS), RTP, RTCP, SRTP
- Network Services: STUN, DHCP, SNTP
- Management Protocols: HTTP, HTTPS, FTP, TFTP, TR-069
- Security: 802.1p, 802.1Q, 802.1x, AES128, AES256
Deployment And Management
- Provisioning: Auto-Provisioning via FTP, TFTP, HTTP, HTTPS, TR-069, DHCP
- Management: Web Interface, Configuration Import and Export
- Maintenance: Firmware Upgrade, Syslog and Diagnostics
- Tools: Web-Based Packet Capture, Phonebook Import and Export
Physical
- Display: 2.4" Colour LCD
- Keypad: 36-Key with DSS and Line Keys (LED Indicators)

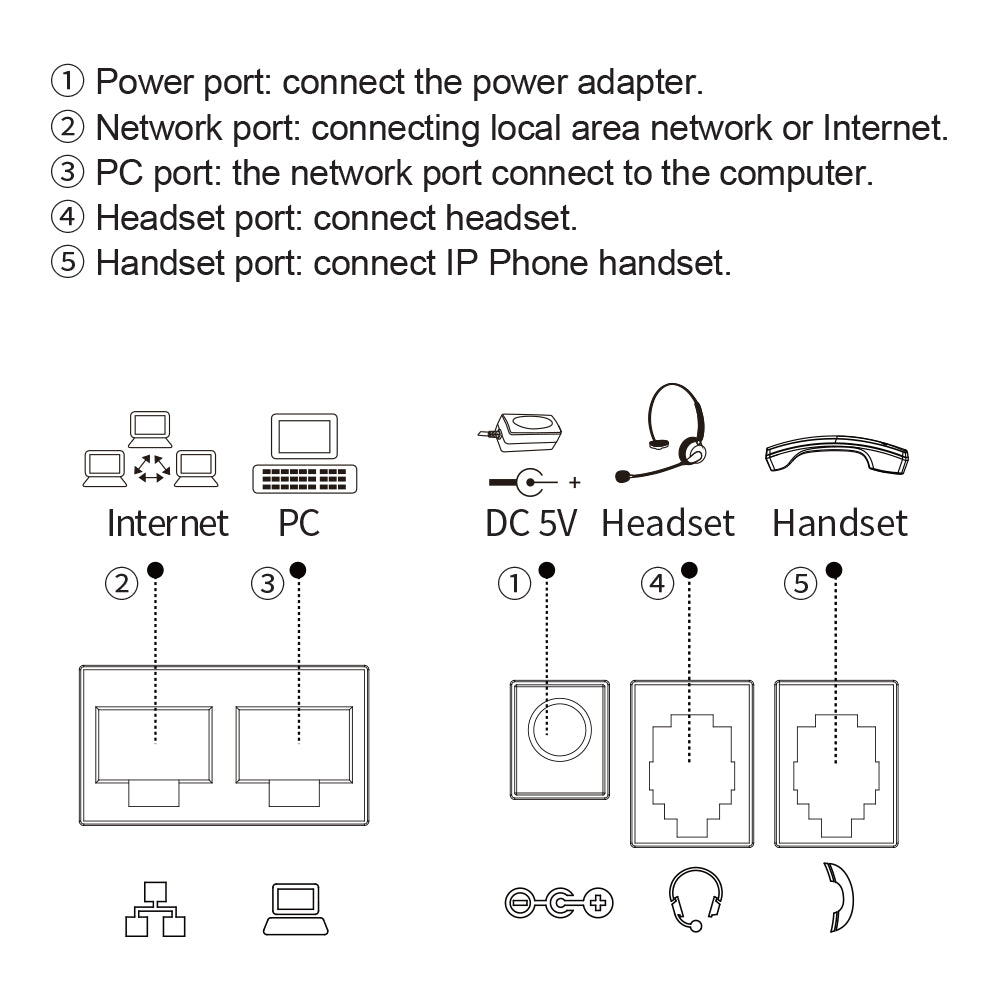

- Ports: 2× RJ45 (Network and PC), RJ9 (Handset and Headset)
- Power: PoE or DC Adapter (Optional Extra)
- Power Consumption: up to ~2.09W (PoE)
