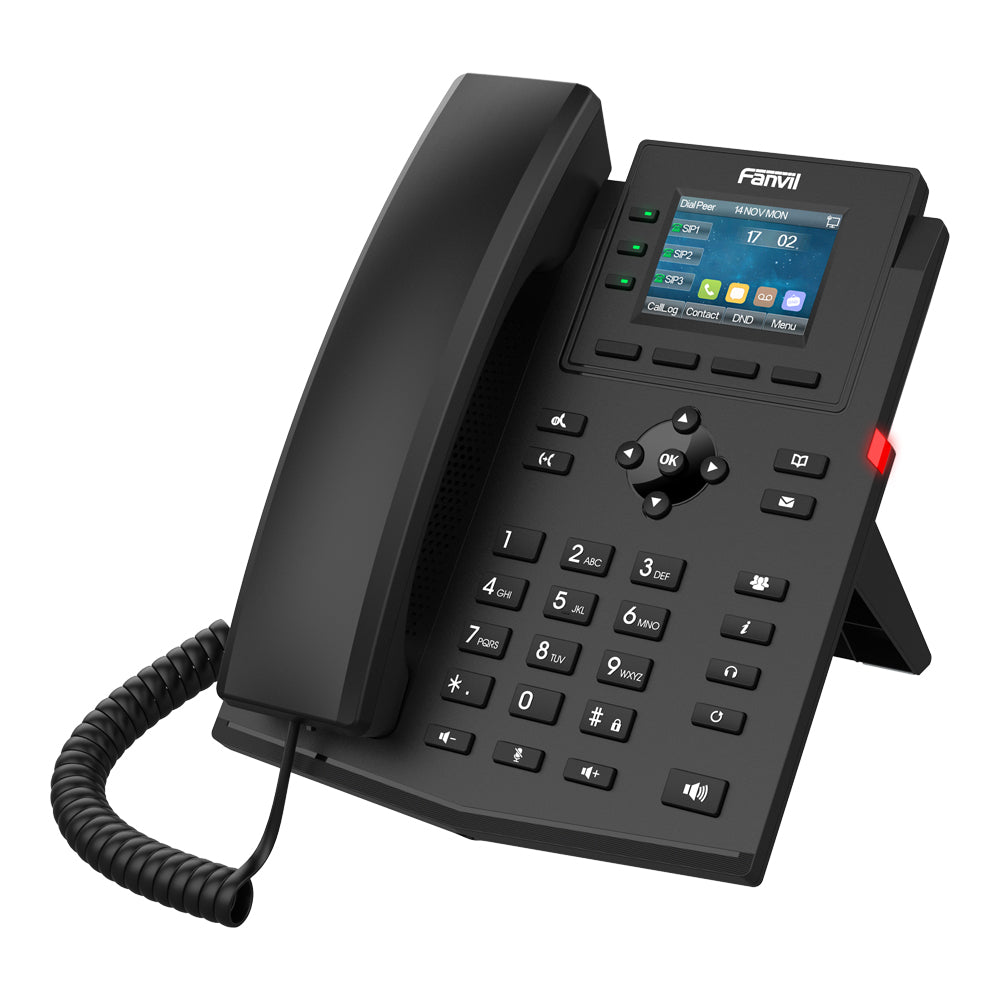

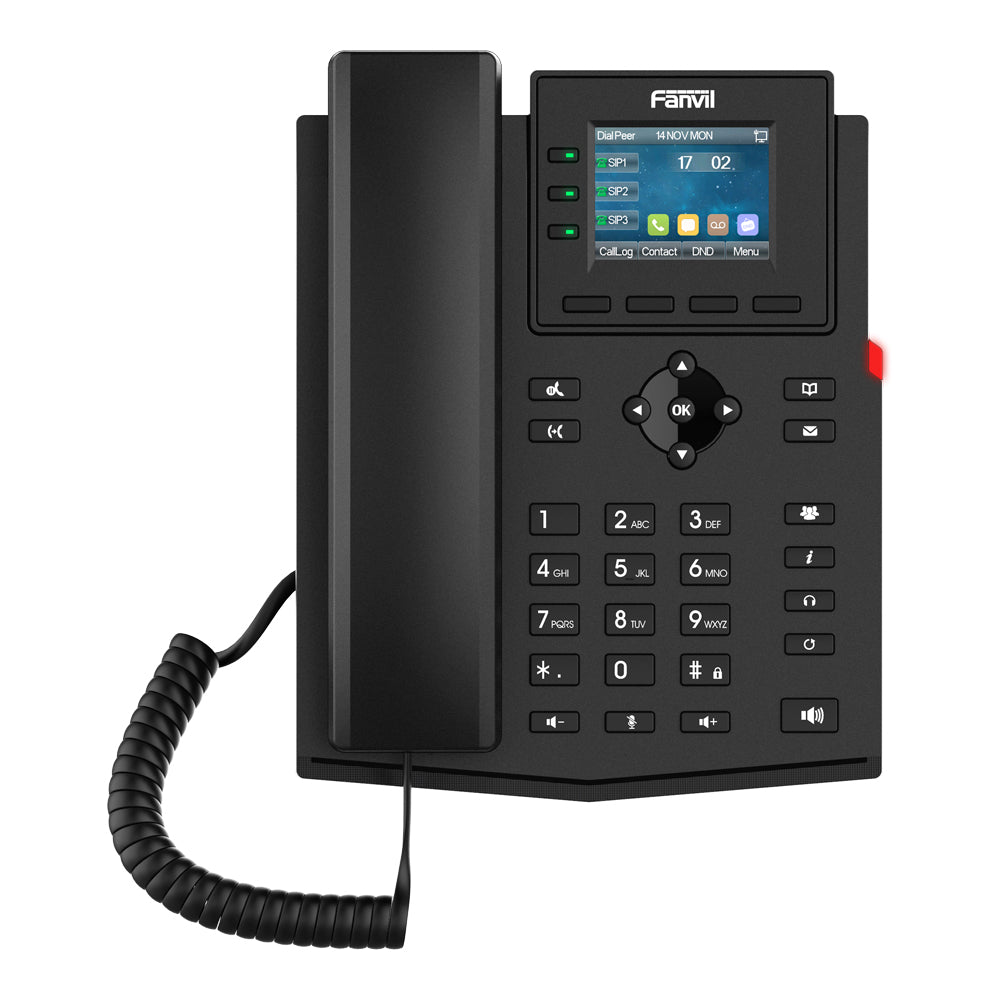

Fanvil X303-2 Wire IP Phone with 2.4" Colour Screen
Upgrade Existing Telephone Wiring with Modern SIP Communication.
The Fanvil X303-2 Wire is a professional IP phone designed to deliver power, network connectivity and voice communication through an existing 2-wire connection. This allows older telephone cabling to be reused when paired with a compatible 2-Wire PoE switch, helping simplify upgrades in offices, hospitals and apartment buildings. It features a 2.4" colour screen, 4 SIP accounts, HD Voice with G.722 and Opus codecs, and 6-way audio conferencing. Dedicated function keys, programmable DSS keys, EHS wireless headset support and comprehensive call management features make the X303-2 Wire a practical solution for modernising legacy telephone installations.
Features

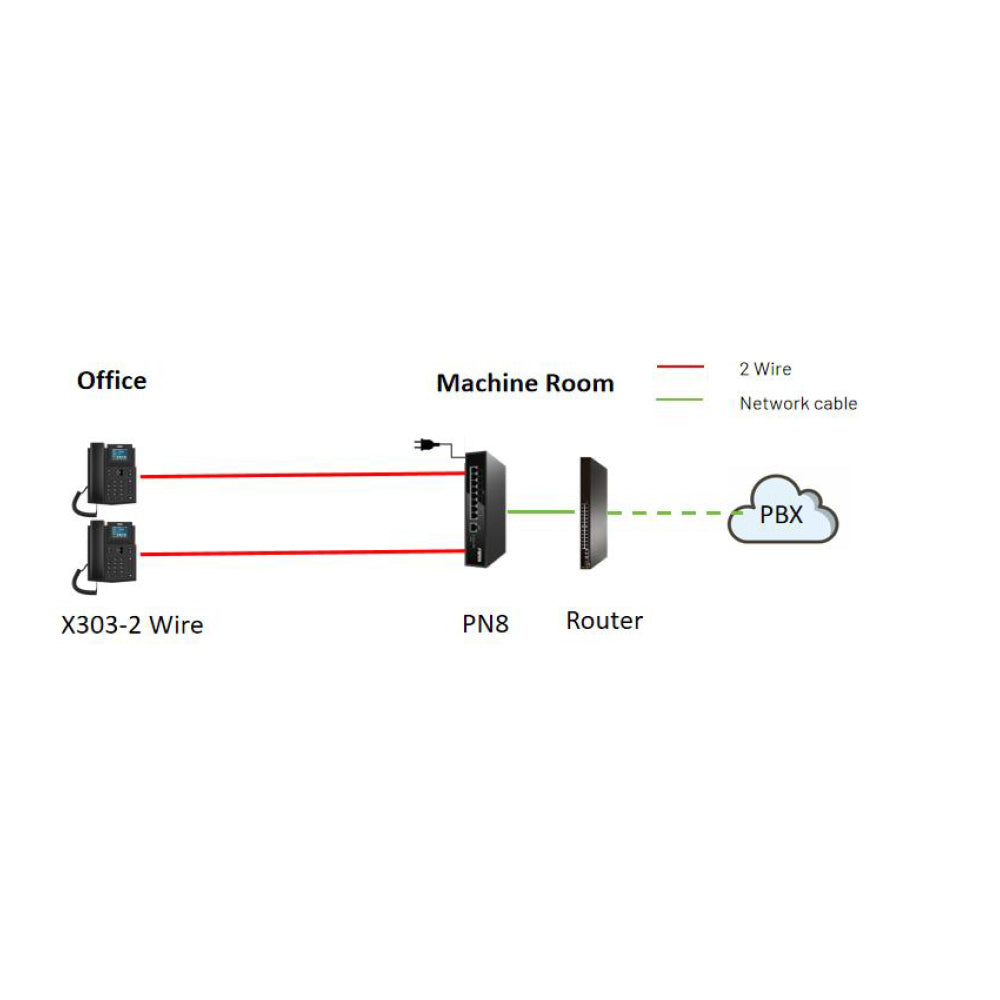

- 2-Wire Power and Network - Transmits power and network connectivity through existing 2-wire cabling when connected to a compatible 2-Wire PoE switch
- Existing Cable Reuse - Helps modernise telephone systems without replacing suitable legacy wiring
- 2.4" Colour Screen - Provides a clear 320 × 204 interface for calls, contacts and phone settings
- 4 SIP Accounts - Supports multiple SIP registrations for flexible business communication
- HD Voice - G.722 and Opus codecs provide clear wideband audio through the handset and speakerphone
- 6-Way Audio Conference - Supports multi-party conference calls directly from the phone
- 3 Line Keys - Provides quick access to configured SIP lines with LED status indicators
- Programmable DSS Keys - Supports BLF, speed dial, intercom, call park, call forwarding and other functions
- Advanced Call Management - Includes hold, transfer, waiting, forwarding, pickup, DND and auto-answering
- EHS Wireless Headset Support - Supports selected Poly and Jabra wireless headset solutions using compatible EHS cables
- IPv4 and IPv6 Support - Provides flexible network deployment for modern IP environments
- Secure SIP Communication - Supports SIP over TLS and SRTP media encryption
- Centralised Deployment - Supports auto-provisioning, TR-069 and web-based management
- Flexible Installation - Suitable for desktop placement or wall mounting with the optional wall stand
Specifications
- SIP Accounts: 4
- Display: 2.4" Colour Screen
- Display Resolution: 320 × 204
- Soft Keys: 4
- Function Keys: 9
- Line Keys: 3 with LED Indicators
- Navigation Keys: 4 Navigation Keys and 1 OK Key
- Standard Keypad: 12 Keys
- Volume Controls: Volume Up, Volume Down and Microphone Mute
- Status Light: 1× Red Indicator

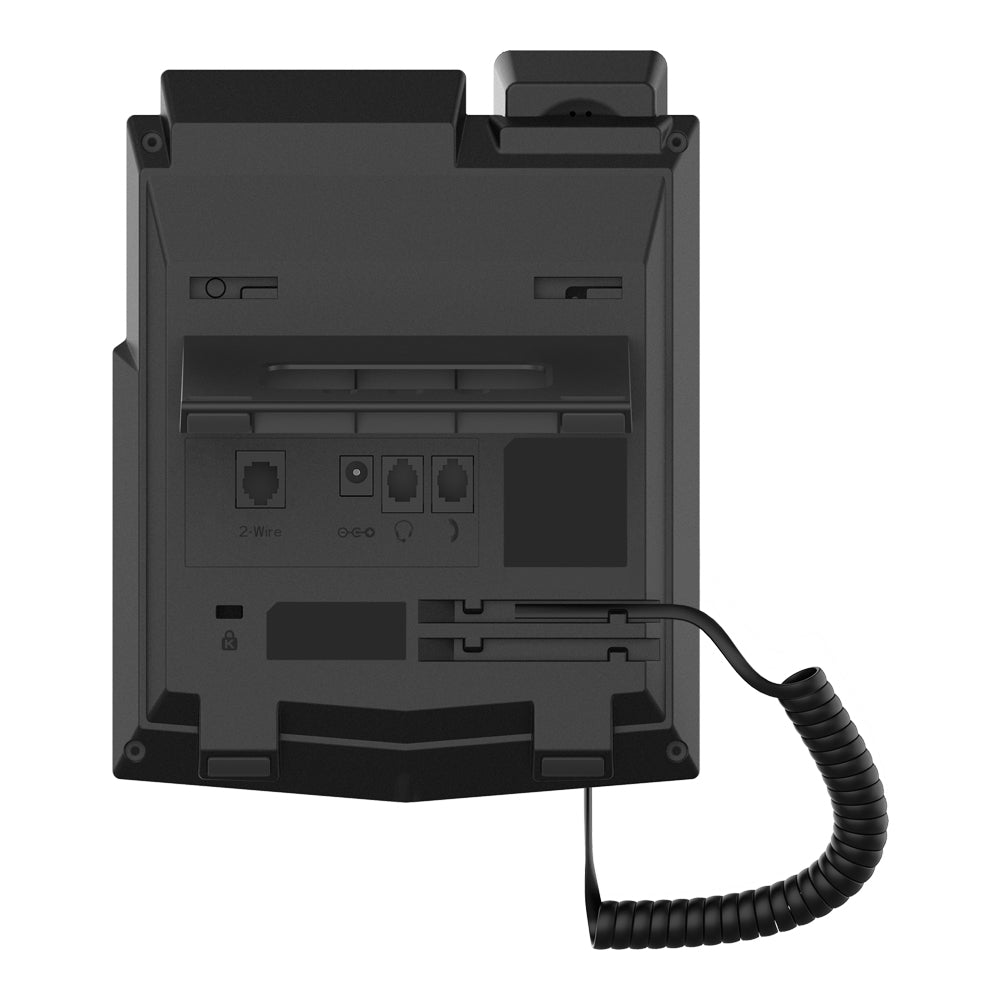

- 2-Wire Interface: 1× 6P2C RJ11 Port
- Handset Port: 1× RJ9
- Headset Port: 1× RJ9
- Security Slot: 1
- Power Input: Compatible 2-Wire PoE Switch or DC12V 1A (Both Sold Separately)
- Housing Material: Plastic
- Colour: Black
- Wideband Codecs: G.722 and Opus
- Narrowband Codecs: G.711A/U, G.723.1, G.726, G.729A/B and iLBC
- Audio Processing: AEC, VAD, CNG, BNE, NR, AGC, PLC and Dynamic Adaptive Jitter Buffer
- DTMF: In-Band, RFC2833 and SIP INFO
- Conference Calling: 6-Way Audio Conference
- Network Modes: IPv4 and IPv6
- IP Configuration: Static IP, DHCP and PPPoE
- Network Access Control: IEEE 802.1X
- VPN: L2TP and OpenVPN
- Network Features: VLAN, LLDP, QoS, RTCP-XR and VQ-RTCPXR
- SIP Protocol: SIP2.0 Over UDP, TCP and TLS
- Media Protocols: RTP, RTCP and SRTP
- Local Phonebook: Up to 1000 Entries
- Remote Phonebook: XML and LDAP, Up to 1000 Entries
- Call Logs: Incoming, Outgoing and Missed, Up to 600 Entries
- Call Functions: Hold, Transfer, Waiting, Forwarding, Intercom, Speed Dial, Call Park, Pickup, Redial, DND, Auto-Answering, Hotline and Hot Desking
- Headset Support: Wired RJ9 Headset and Compatible EHS Wireless Headsets
- Management: Web Management Portal, Configuration Import and Export, Firmware Upgrade, Syslog and Packet Capture
- Auto-Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP and TR-069
- Desktop Dimensions at 45°: 169 × 203.6 × 172.7mm
- Desktop Dimensions at 50°: 169 × 194 × 181mm
- Wall-Mounted Dimensions: 169 × 113.4 × 207.6mm
- Working Temperature: 0~45°C
Optional Accessories
- DC12V 1A Power Adapter
- Wall Stand
- Compatible EHS Cable for Supported Wireless Headsets
Notes
- A compatible 2-Wire PoE switch is required to provide network connectivity and power through the 2-wire connection
- The phone does not include a standard Ethernet network port
- Existing wiring must be suitable for the intended 2-wire deployment
- Poly wireless headsets require a compatible Poly APD-80 EHS cable
- Jabra wireless headsets require a compatible Fanvil EHS20 EHS cable
- Some call functions require compatible SIP server support
