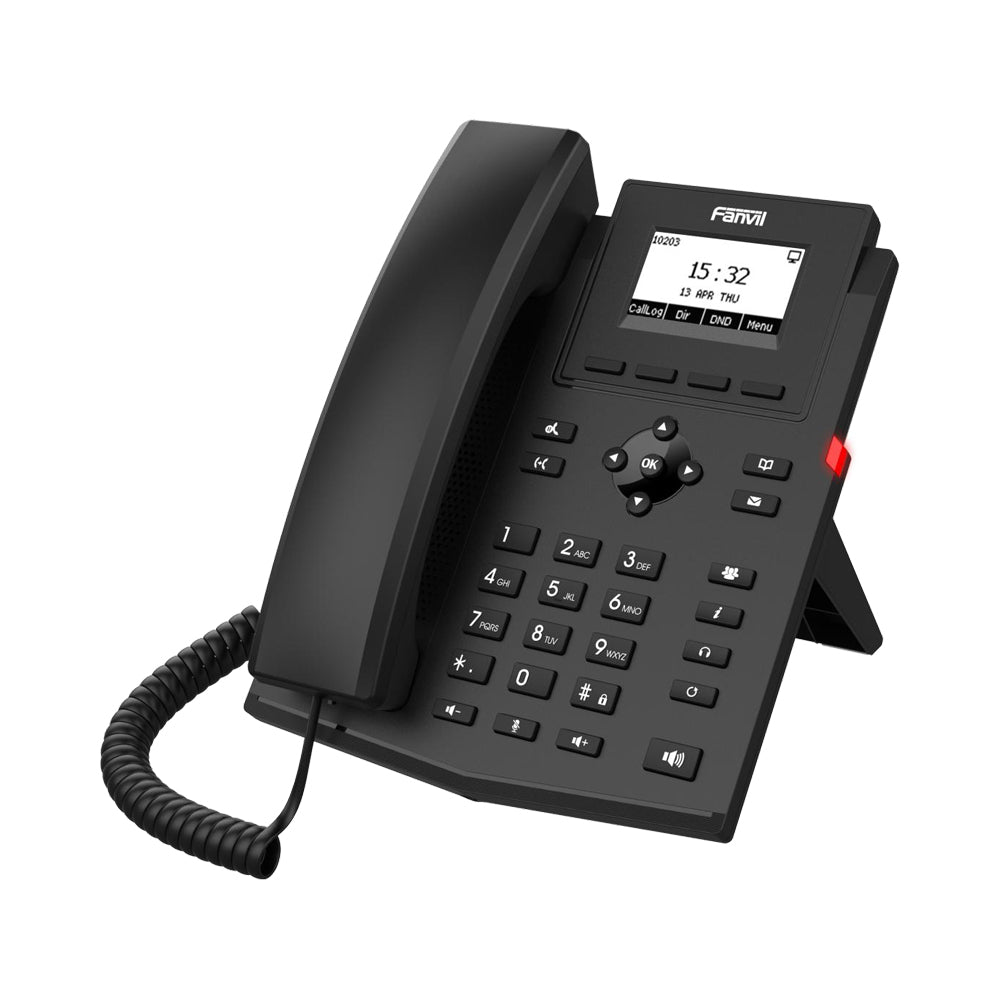

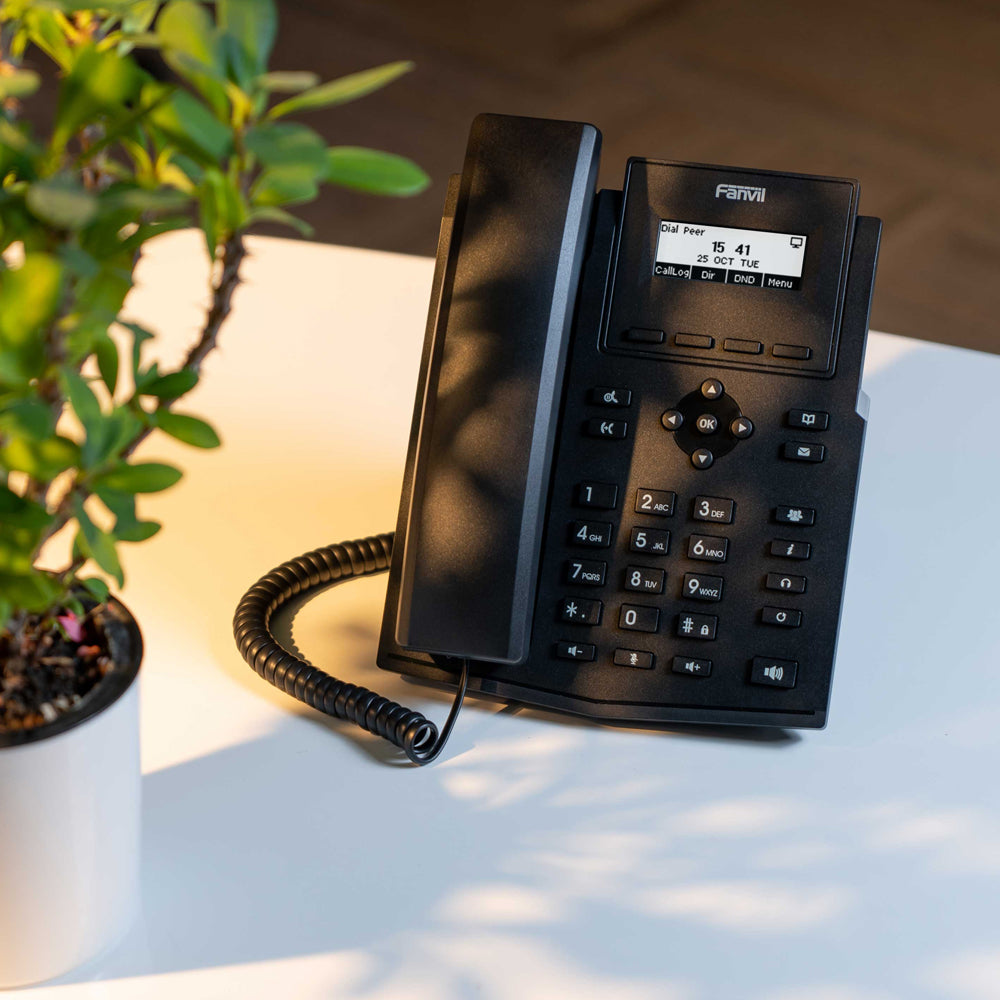

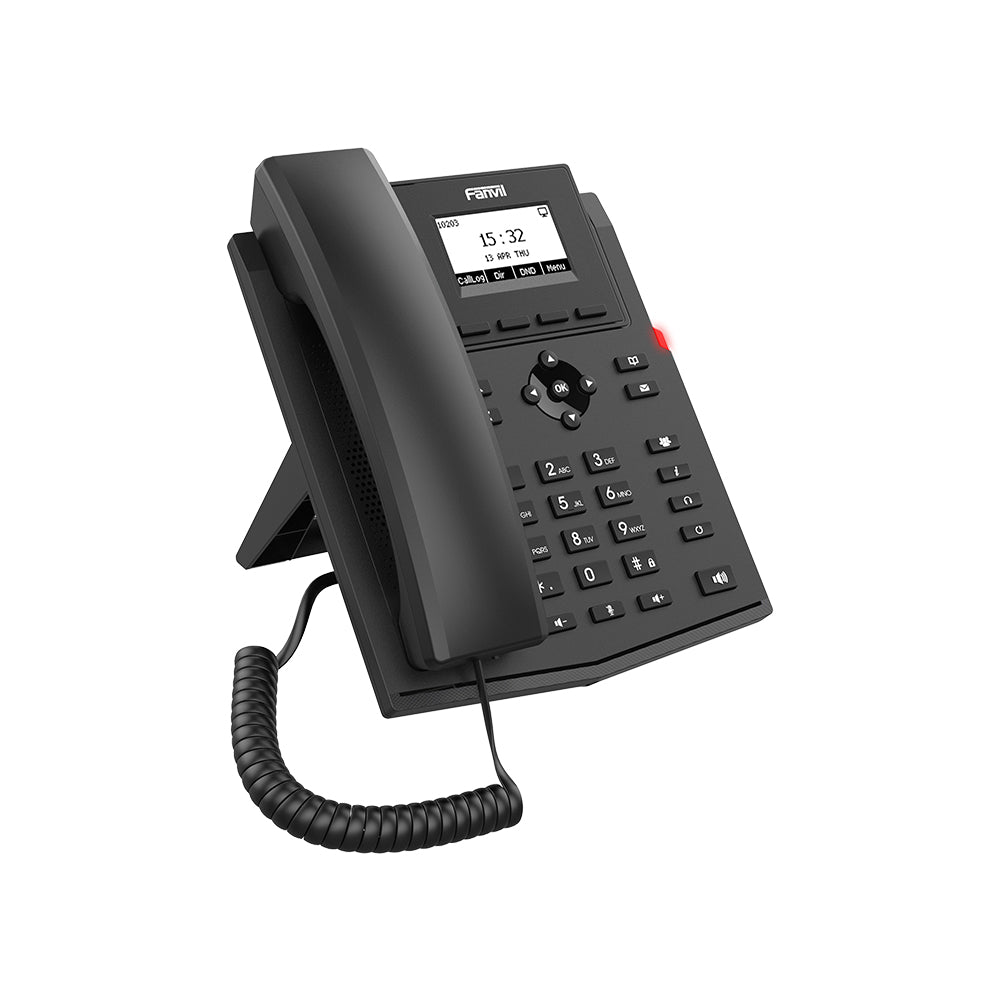

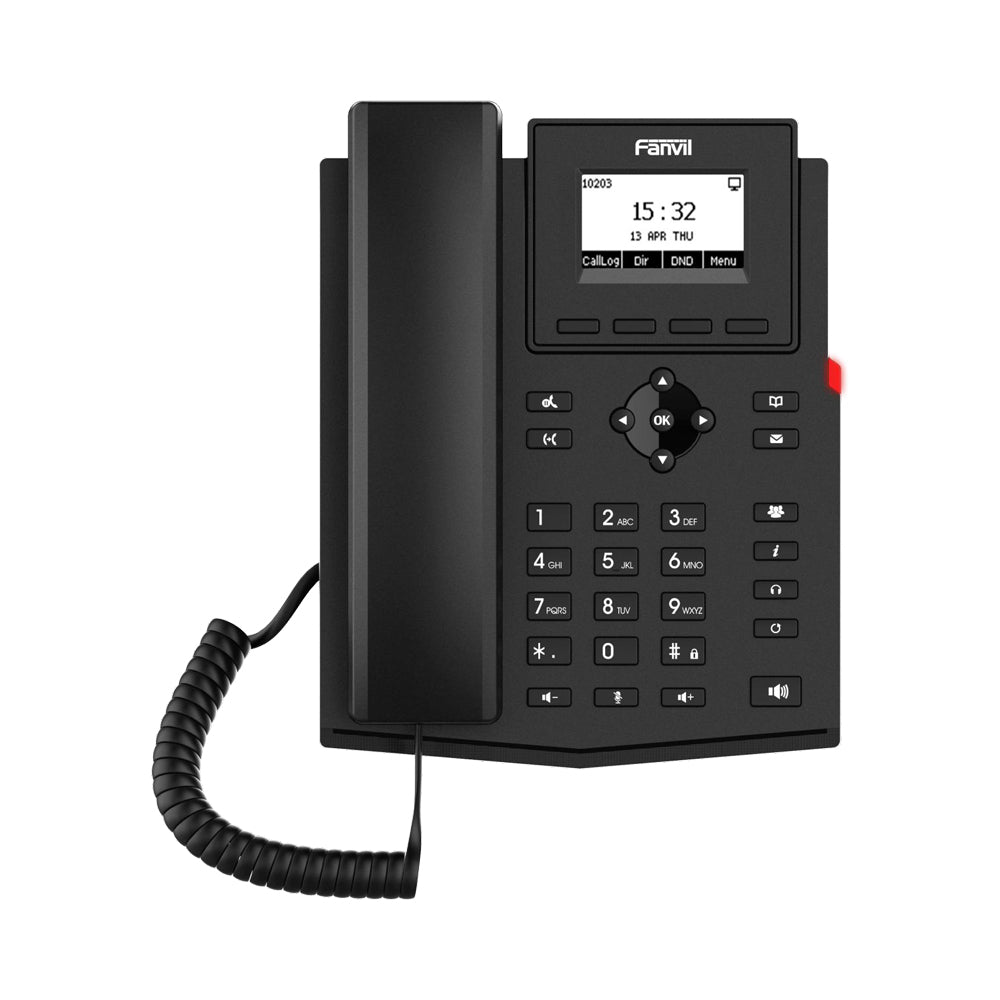

Fanvil X301G Cost-Effective Gigabit IP Phone with 2.3" 132 × 64 Pixel Dot-Matrix Display
Reliable Business Communication. Simple and Efficient.
The Fanvil X301G is an entry-level Gigabit IP phone designed to deliver dependable and high-quality communication for everyday business environments. Featuring a clear 2.3-inch dot-matrix display, it provides an intuitive interface for handling calls and essential functions with ease. Supporting 2 SIP lines and 6-way audio conferencing, the X301G is ideal for small offices and teams that require efficient call handling and collaboration. HD audio with support for wideband codecs such as G.722 and Opus ensures clear, natural voice quality on both handset and speakerphone. Equipped with dual Gigabit Ethernet ports and integrated PoE, the phone offers flexible deployment and simplified installation using a single cable for power and data. Additional support for EHS wireless headsets enhances user convenience and mobility. Designed for flexibility, the X301G includes a desktop stand for easy setup, with optional wall-mount installation available via a bracket sold separately. This makes it a practical and cost-effective solution for professional VoIP communication.
Features
- 2 SIP Lines - Supports dual line operation for efficient call handling
- HD Voice Quality - Wideband audio with G.722 and Opus codecs for clear communication
- 2.3-Inch Display - Clear dot-matrix screen for easy navigation and call management
- 6-Way Audio Conferencing - Enables small team collaboration directly from the phone
- Dual Gigabit Ports - High-speed network connectivity for modern office environments
- PoE Support - Single cable for power and data simplifies installation
- EHS Headset Support - Compatible with wireless headsets for added mobility
- Desktop Installation - Includes stand for quick and easy setup
- Optional Wall Mount - Wall bracket available separately for flexible deployment
Specifications
Generic
- SIP Lines: 2 Lines
- Audio: HD Voice (Handset and Speaker)
- Power: PoE Support (IEEE 802.3af)
- Display: 2.3-Inch Dot-Matrix Display
- Installation: Desktop Stand (Wall Mount Optional)
- Power Supply: External Adapter Optional
Phone Functions
- Phonebook: Up to 1000 Entries
- Call Logs: Up to 600 Entries (In/Out/Missed)
- Speed Dial: Supported
- XML Browser: Supported
- DSS Keys: Programmable Soft Keys
- Features: Hotline, Redial, Call Completion
Call Functions
- Call Handling: Hold, Resume, Mute, Transfer
- Conferencing: 6-Way Audio Conference
- Caller ID: Supported
- DND: Do Not Disturb (Timed)
- Auto Answer: Supported
- Call Forwarding: Supported
Audio
- Codecs: G.711, G.722, Opus, G.729
- Speakerphone: Full-Duplex with AEC
- Noise Reduction: NR, AGC, VAD and CNG
- Echo Cancellation: Supported
- Jitter Buffer: Dynamic Adaptive
Network
- Ethernet: Dual 10/100/1000Mbps Ports
- IP Mode: IPv4 and IPv6
- Network Protocols: DHCP, Static, PPPoE
- VLAN: 802.1Q Support
- VPN: L2TP and OpenVPN
- QoS: Supported
Protocols
- SIP: SIP v1 and v2
- Transport: UDP, TCP, TLS
- Security: SRTP
- Provisioning: TR-069 Supported
- Network Services: HTTP, HTTPS, FTP, TFTP
Deployment And Management
- Auto Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP
- Web Management: Browser-Based Interface
- Configuration: Import and Export Supported
- Firmware Upgrade: Supported
- Diagnostics: Syslog and Packet Dump
Physical
- Display: 132 × 64 Graphical LCD with Backlight
- Keypad: 21 Keys Including DSS and Function Keys

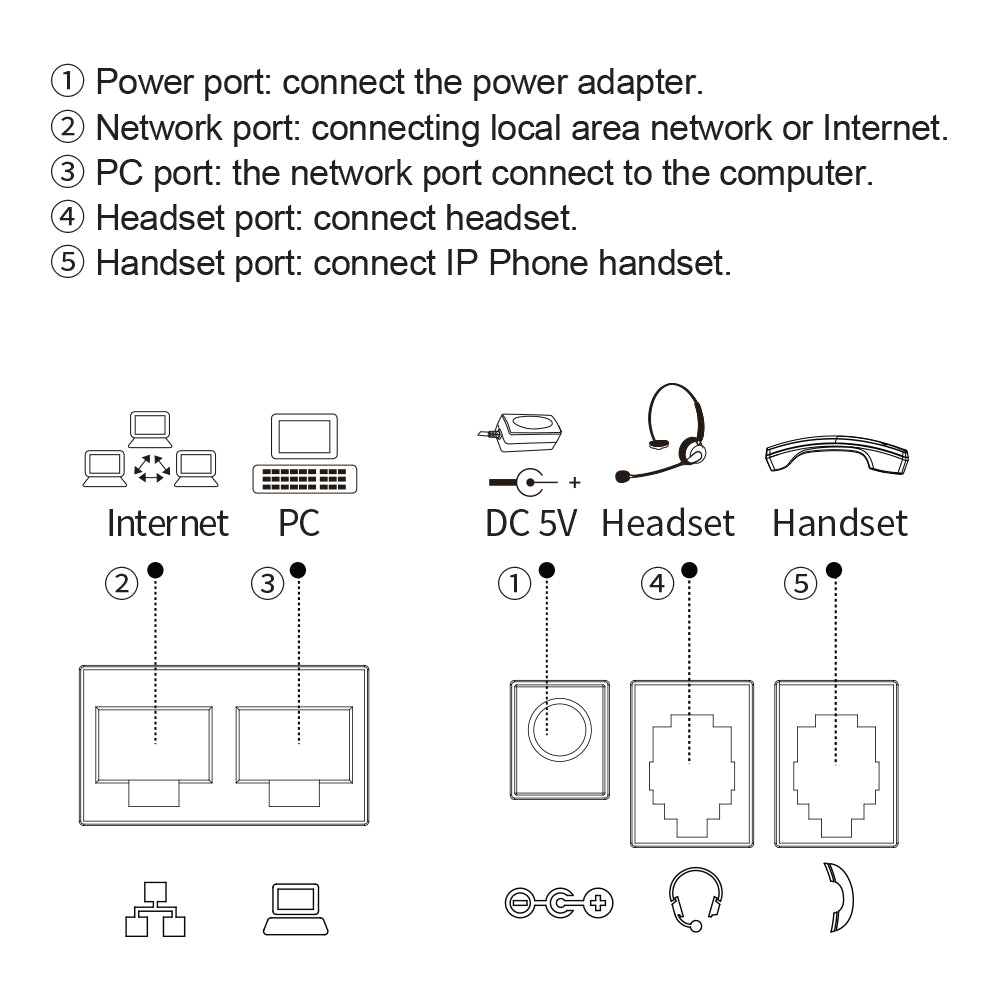

- Ports: RJ9 Handset, RJ45 Network, USB Type-A
- Installation: Desktop (Wall Mount Optional)
- Colour: Black
Power
- Power Input: DC 5V 0.6A or PoE
- Power Consumption: 0.8W to 1.86W (PoE)
- Temperature: 0~45°C
- Humidity: 10~95%
General
- Security: AES128 and AES256 Encryption
- Certifications: CE, FCC
- Dimensions: 169 × 201 × 177mm (Desktop)
- Weight: Approx. 1kg (Unit)
