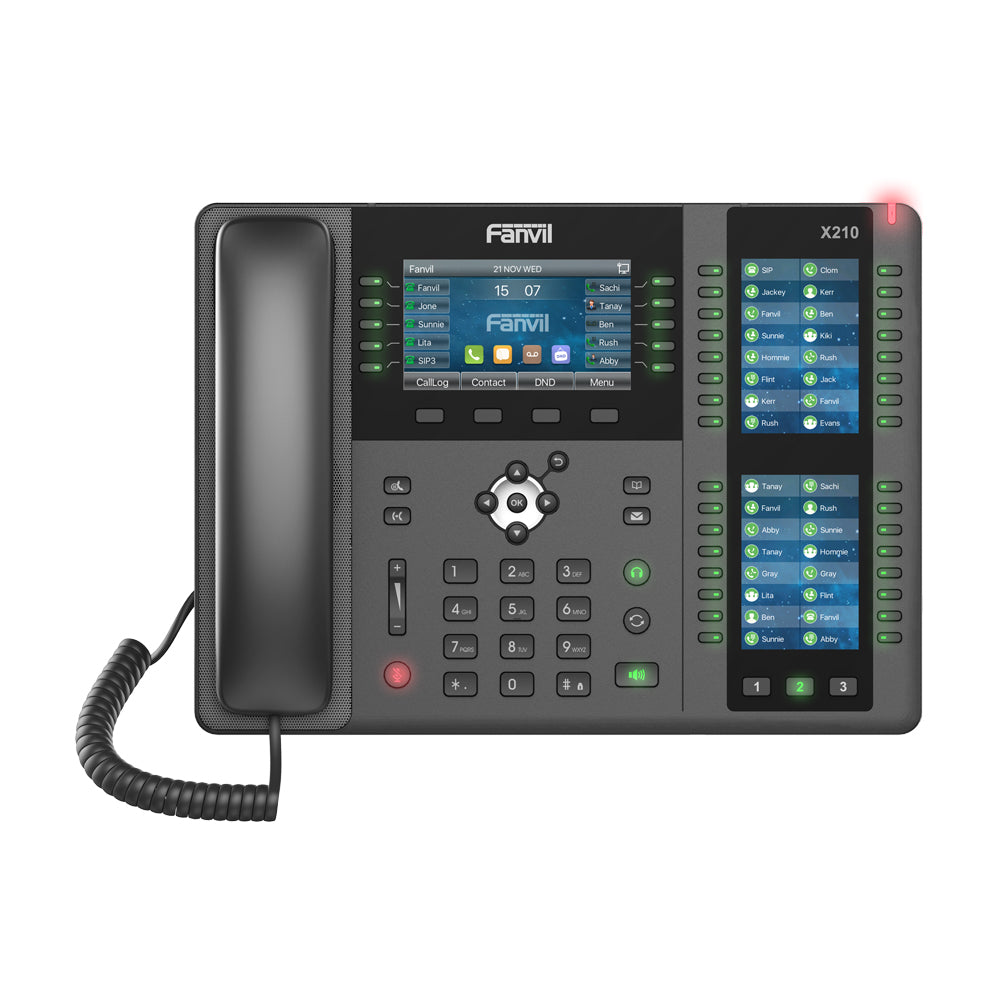

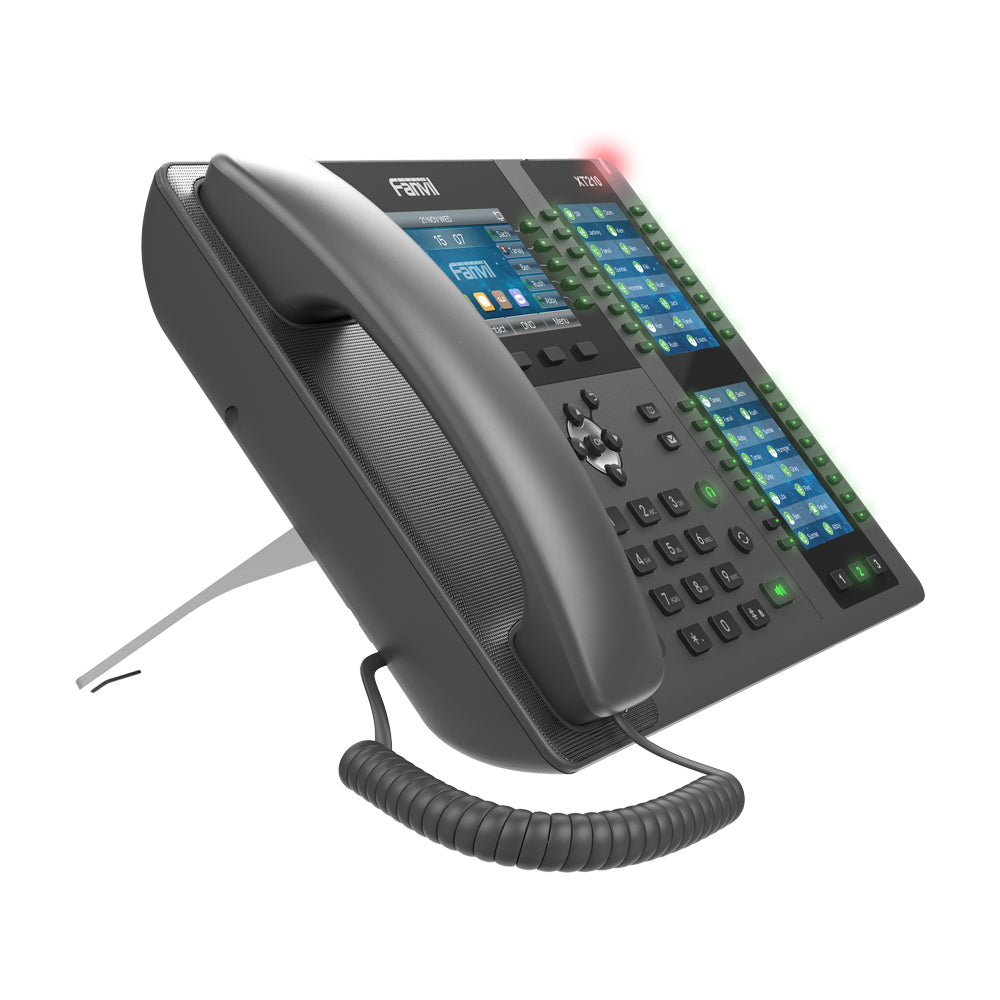

Fanvil X210 High-End Enterprise IP Phone with 106× DSS Keys
Built for Power Users. Designed for Efficiency.
The Fanvil X210 Enterprise IP Phone is a high-performance communication solution tailored for business managers and busy professionals. Featuring a large colour display with dual side screens, it provides quick access to up to 106× DSS keys for efficient call handling and workflow management. With HD voice, 20× SIP lines and advanced connectivity including Bluetooth and optional Wi-Fi, it ensures seamless communication in demanding office environments. Ideal for reception desks, call-intensive roles and enterprise deployments, the X210 delivers reliability, flexibility and enhanced productivity.
Features
- 20× SIP Lines - Handles high call volumes for enterprise environments
- Triple Display Design - 4.3" Main screen with dual 3.5" DSS displays for enhanced usability
- DSS Key Expansion - Supports up to 106× DSS keys for rapid call control and shortcuts
- HD Audio - Crystal-clear sound on handset and speakerphone
- Built-in Bluetooth - Connect wireless headsets and mobile devices easily
- Optional Wi-Fi Connectivity - Supports Wi-Fi via USB dongle for flexible deployment
- 6-Way Audio Conference - Enables efficient team collaboration
- Video Call Support - H.264 decoding for video intercom and door phone integration
- Dual Gigabit Ports with PoE - High-speed networking with simplified power delivery
Specifications
Phone Functions
- Phonebook: Local (2000 entries), Remote (XML/LDAP)
- Call Logs: Missed/Incoming/Outgoing (up to 1000 Entries)
- DSS Keys: Programmable with Custom Icons and LED Indicators
- Bluetooth: Built-in Bluetooth 4.2 for Headsets and Mobile Pairing
- Wi-Fi: Supported via USB Wi-Fi Dongle
- Hot Desking: Supported for Shared Workspaces
- Customisation: Background, Ringtone, DSS Layout and UI Display
- Provisioning: Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/TR-069
- Management: Web Interface, Configuration Import/Export, Firmware Upgrade
Call Functions
- Call Handling: Answer, Reject, Hold, Resume, Redial
- Call Features: Transfer (Attended/Unattended), Forward, Waiting
- Conference: 6-Way Audio Conferencing
- Caller Features: Caller ID, Anonymous Call, Call Blocking
- DND: Do Not Disturb with Scheduling Support
- Advanced: Call Park, Call Pickup (Server Dependent)
- Speed Dial: Supported with Programmable Keys
- Auto Answer: Supported for Intercom and Paging
- Direct IP Call: Supported Without SIP Proxy
Audio
- HD Voice: HD Handset and Full-Duplex Speakerphone
- Codecs: G.722, Opus, G.711a/u, G.729, iLBC
- Echo Cancellation: Acoustic Echo Cancellation (AEC)
- Noise Reduction: NR, VAD, CNG, AGC
- Sampling Rate: Wideband 16kHz
- Jitter Buffer: Dynamic Adaptive up to 300ms
- Packet Loss Concealment: Supported
- DTMF: In-Band, RFC2833, SIP INFO
Video
- Video Codec: H.264
- Video Calls: Supports Receiving Video Calls
- Resolution Support: up to 1080p
- Integration: Compatible with IP Cameras and SIP Video Door Phones
Network
- Network Ports: Dual Gigabit RJ45 (LAN + PC Passthrough)
- IP Support: IPv4 / IPv6 / Dual Stack
- Protocols: SIP v1/v2, TCP, UDP, TLS, RTP, SRTP
- VPN: L2TP, OpenVPN
- VLAN: Supported (802.1Q)
- QoS: Supported for Voice Prioritisation
- Security: 802.1x Network Access Control
- Provisioning: DHCP, PPPoE, DNS-SRV
Management And Deployment
- Auto Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP Option 66, TR-069
- Web Management: Browser-Based Configuration and Monitoring
- Remote Maintenance: Syslog, Packet Capture, Remote Upgrade
- Configuration: Import/Export and Backup Support
- Firmware: Online and Manual Upgrade Supported
- Security: HTTPS, AES Encryption Support
Physical
- Displays: 4.3" Main Colour Display, 2× 3.5" DSS Colour Displays
- DSS Keys: up to 106× DSS Keys (42× Tri-Colour Physical Keys)
- Keypad: 77× Keys including Soft Keys, Function Keys and Navigation Keys

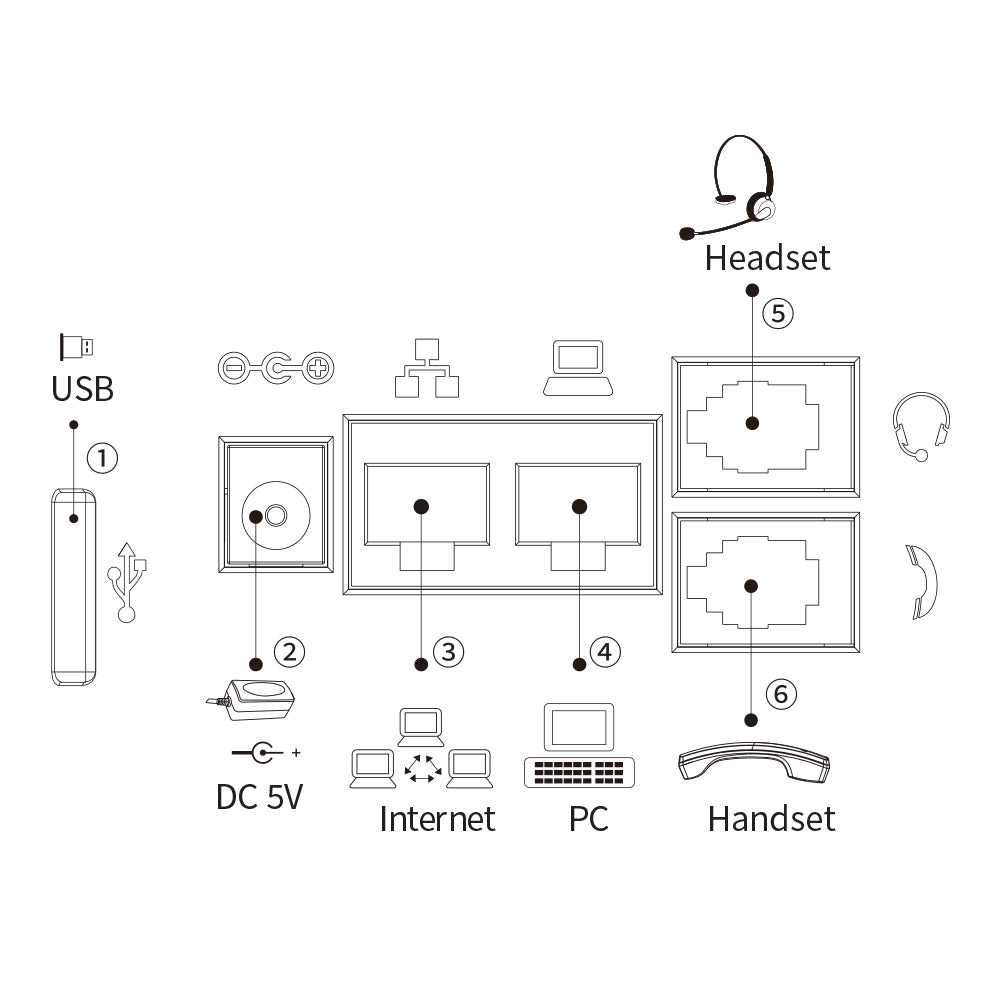

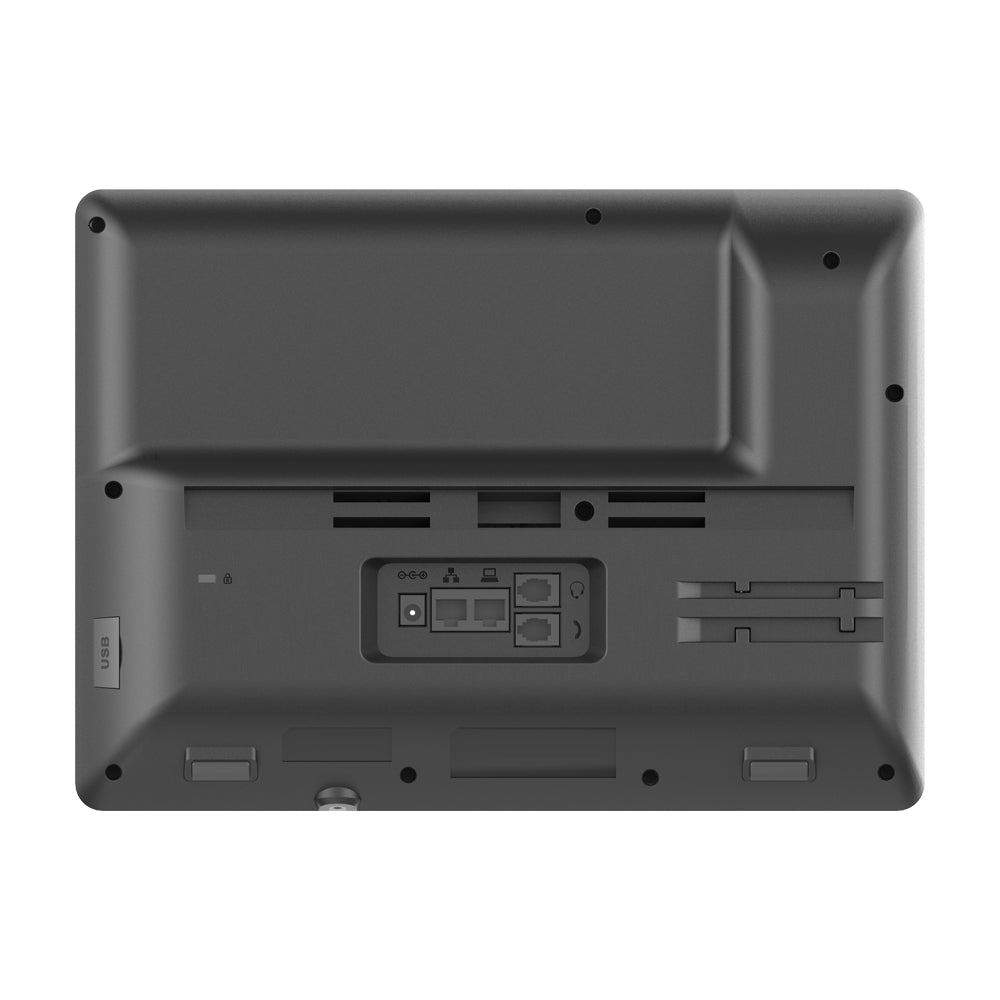

- Ports: 2× RJ45 (Network + PC), 2× RJ9 (Handset + Headset), 1× USB 2.0
- Connectivity: Bluetooth 4.2, Wi-Fi via USB Dongle
- Power: PoE (IEEE 802.3af) or 5V DC Adapter

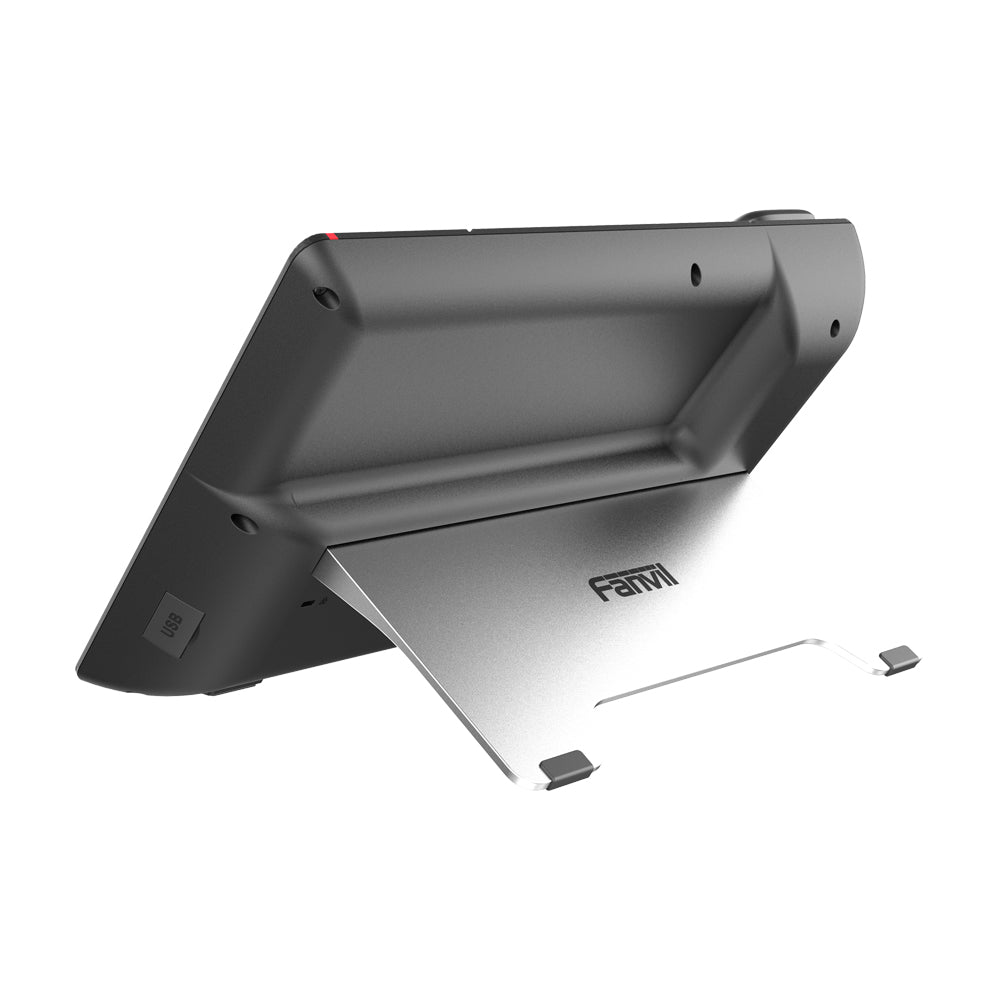

- Installation: Desktop Stand with Adjustable Angles (40° / 50°)
- Dimensions: 309 × 226 × 167mm (Adjustable Stand)
- Colour: Dark Grey
