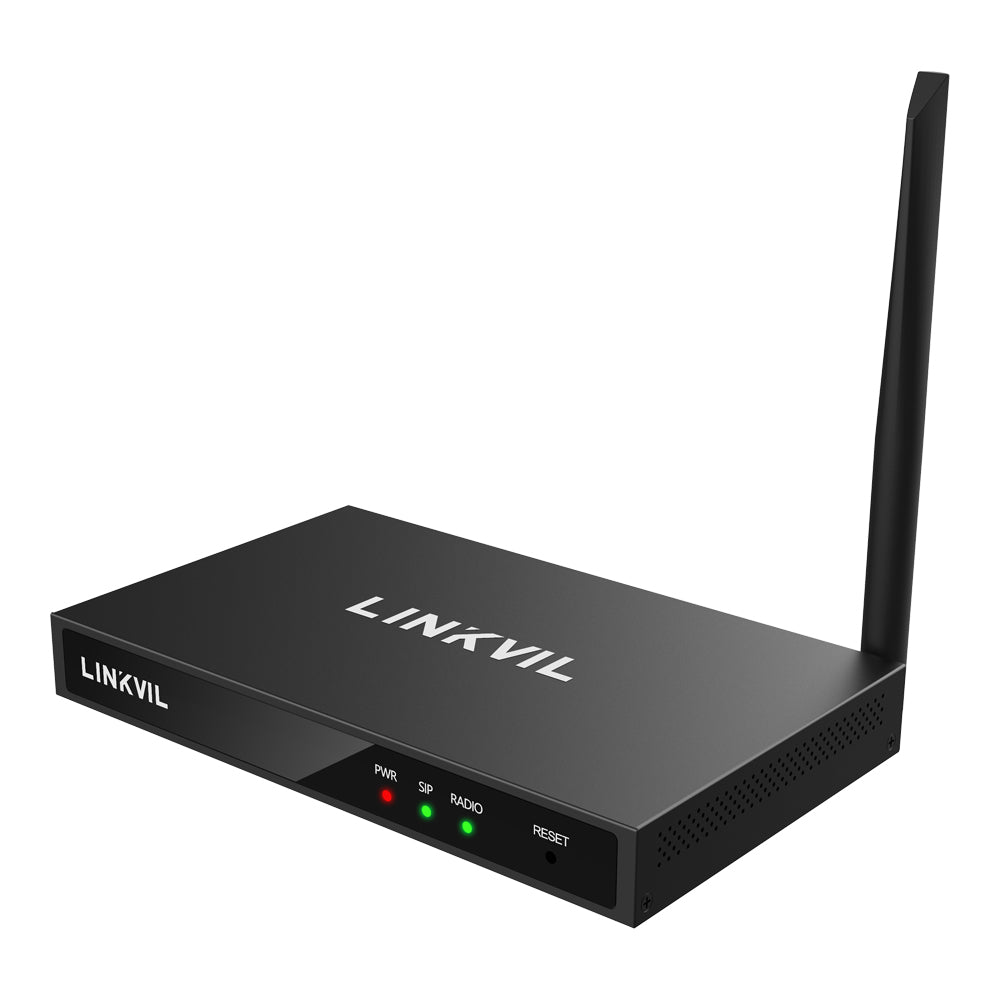

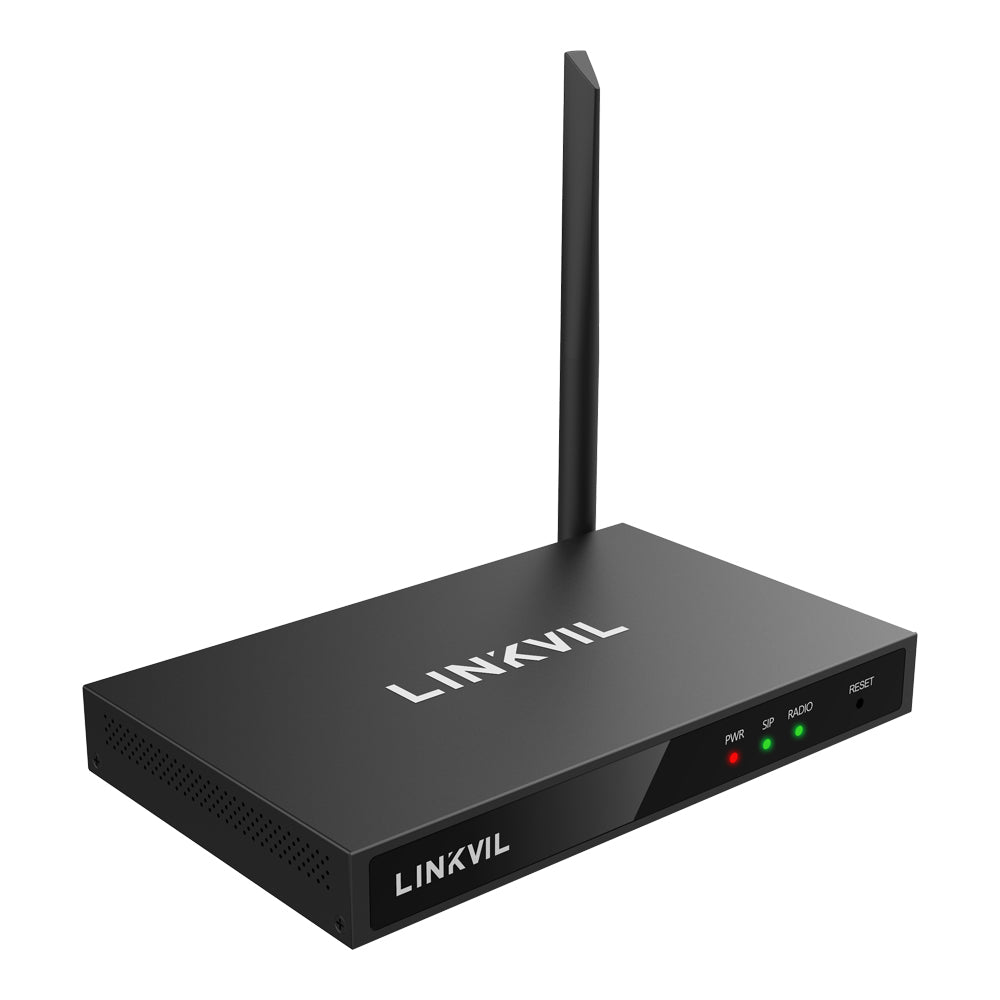

Fanvil W712 RoIP Gateway (Radio-over-IP)
Connect Two-Way Radio and SIP Communication Across One IP Network.
The Fanvil W712 is a Radio-over-IP gateway designed to connect compatible analogue or DMR Tier II digital two-way radios with SIP communication systems. Its integrated 400~470MHz UHF radio and SIP modules allow radio users and SIP devices to communicate without replacing existing radio infrastructure. Supporting 2 SIP lines, HD audio, call recording, multicast and SIP hotspot functions, the W712 is ideal for security, hospitality, industrial parks, warehouses, campuses and community communication systems. Dual Ethernet ports, PoE+, DC power, web-based management and flexible desktop or wall-mounted installation simplify professional deployment.
Features
- Radio and SIP Integration - Connects compatible analogue or DMR Tier II digital radios with SIP communication devices
- Integrated UHF Radio - Supports the 400~470MHz frequency range
- Broad Radio Compatibility - Works with compatible Motorola, Hytera and other mainstream analogue or digital radios
- 2 SIP Lines - Supports two SIP registrations for flexible communication deployment

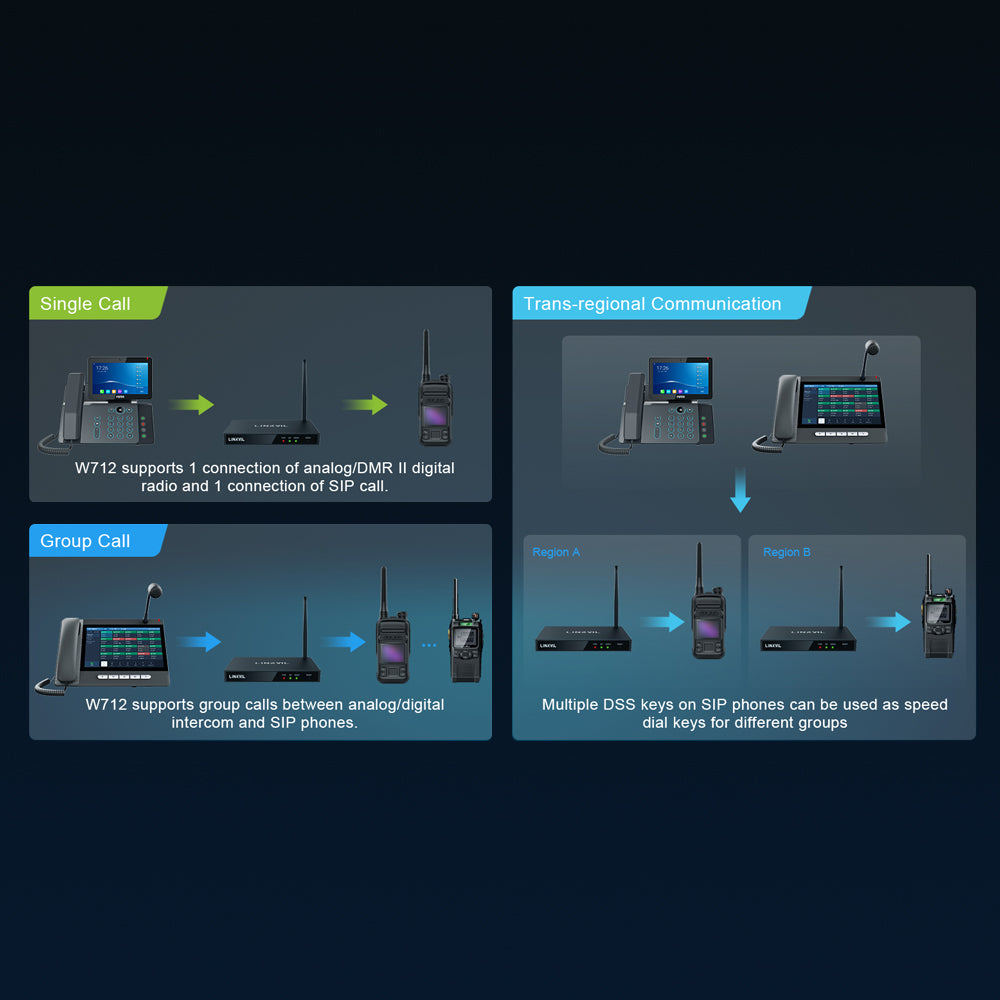

- Two-Way Communication - Transfers voice between connected SIP devices and two-way radios
- Auto-Answering - Automatically answers configured SIP calls for radio communication
- HD Audio - G.722 and Opus codecs provide clear wideband voice transmission
- Voice Activity Detection - Automatically detects speech for efficient radio transmission
- Call Recording - Records forwarded radio and SIP calls to compatible USB or TF storage
- Multicast Support - Sends and receives RTP multicast audio without SIP signalling
- SIP Hotspot - Extends SIP account access to compatible hotspot client devices
- Dual Ethernet Ports - Provides separate WAN and LAN connections for network integration
- PoE+ Support - Receives power and network connectivity through the WAN port
- Web-Based Management - Supports browser configuration, monitoring and maintenance

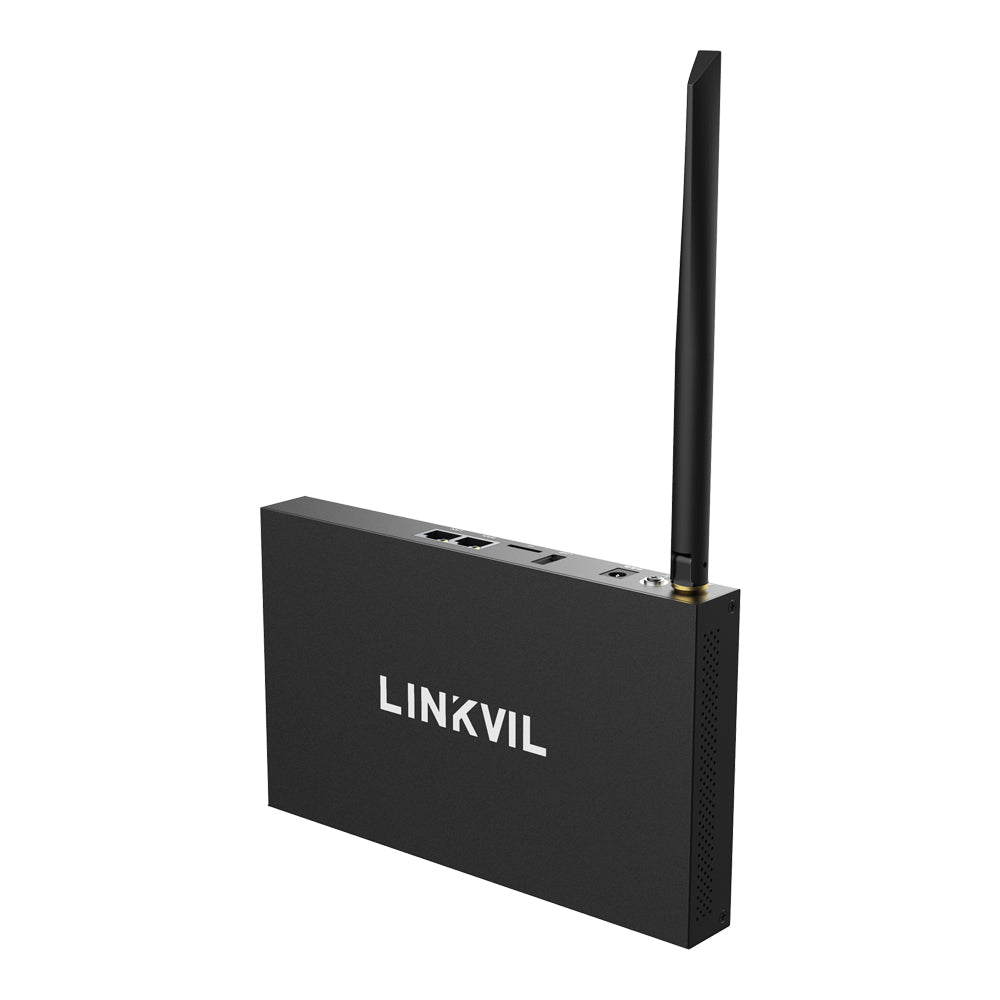

- Flexible Installation - Suitable for desktop or wall-mounted deployment
Specifications
- Radio Type: Analogue or DMR Tier II Digital
- Radio Connections: 1
- SIP Call Connections: 1
- SIP Lines: 2
- Radio Frequency: UHF 400~470MHz
- Communication Distance: Approximately 1~3km in an Urban Open Area
- Maximum Indoor Coverage: Up to 29 Floors at 4W
- Maximum Community Radius: Up to 1500m at 4W
- Maximum Open Urban Radius: Up to 2900m at 4W
- Wideband Codecs: G.722 and Opus
- Narrowband Codecs: G.711A/U, G.729A/B, iLBC, G.723.1 and G.726-32K
- Audio Functions: Voice Activity Detection and Noise Reduction
- SIP Protocol: SIP V1 And SIP V2 Over UDP, TCP and TLS
- Media Protocols: RTP, RTCP and SRTP

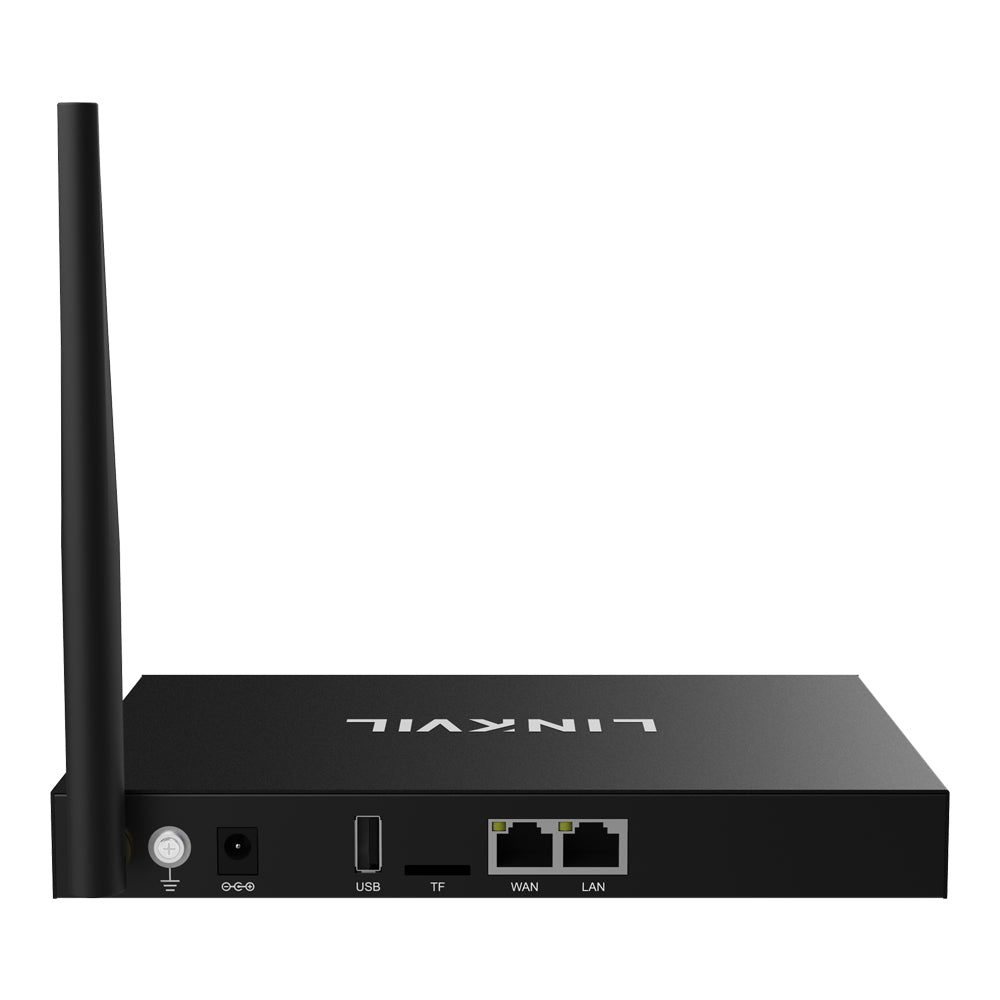

- Network Ports: 2× RJ45 10/100Mbps Ethernet Ports
- Network Interfaces: 1× WAN and 1× LAN
- IP Modes: IPv4, IPv6 and IPv4/IPv6
- IP Configuration: Static IP, DHCP and PPPoE
- VPN: L2TP and OpenVPN
- Network Functions: VLAN, STUN and SNTP
- PoE Standard: IEEE 802.3at Class 4 Through WAN Port
- DC Power Input: 12V 2A
- USB Port: 1× USB2.0 Type-A
- TF Card Slot: 1
- Maximum USB Storage: 128GB
- Maximum TF Card Storage: 128GB

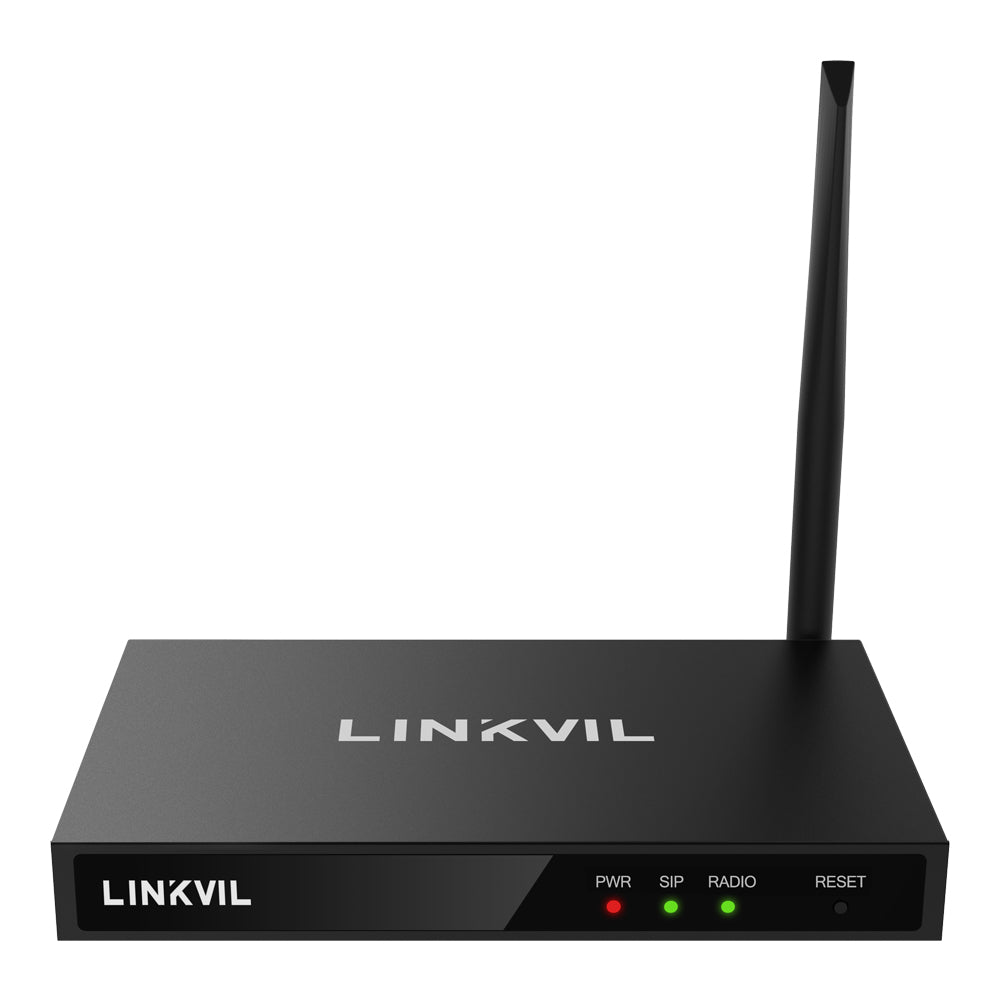

- Indicators: Power, SIP and Radio Status
- Physical Controls: 1× Reset Button
- Antenna Interface: 1
- Grounding Interface: 1
- Management: Web Portal, Configuration Import and Export, Firmware Upgrade, Syslog and Packet Capture
- Auto-Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP and TR-069
- Installation: Desktop or Wall-Mounted
- Device Dimensions: 209 × 126 × 26.3mm
- Operating Temperature: -10~50°C
- Storage Temperature: -20~60°C
- Operating Humidity: 10~95%
- Colour: Black
Notes
- Supports either one analogue channel or one DMR Tier II digital channel at a time
- Analogue and digital channel modes cannot be used simultaneously
- Connected radios must use compatible frequencies and matching channel parameters
- Communication range varies according to power settings, terrain, buildings, interference and installation conditions
- Call recording requires compatible USB or TF storage
- Power can be supplied through a compatible IEEE 802.3at PoE+ switch or DC12V 2A power adapter
- When PoE and DC power are connected simultaneously, PoE is given priority
